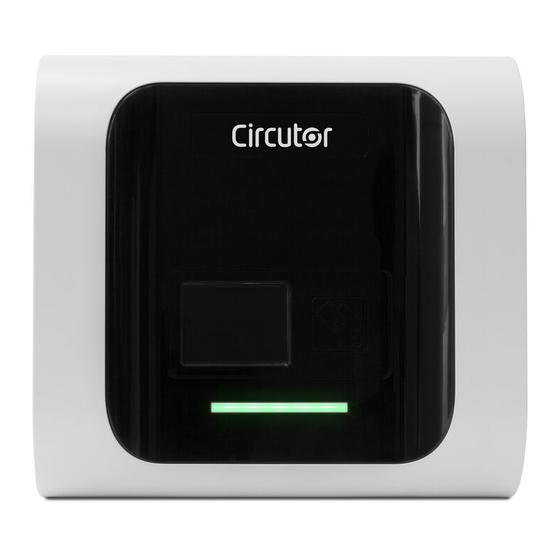

Summary of Contents for Circontrol Wallbox eNext Series

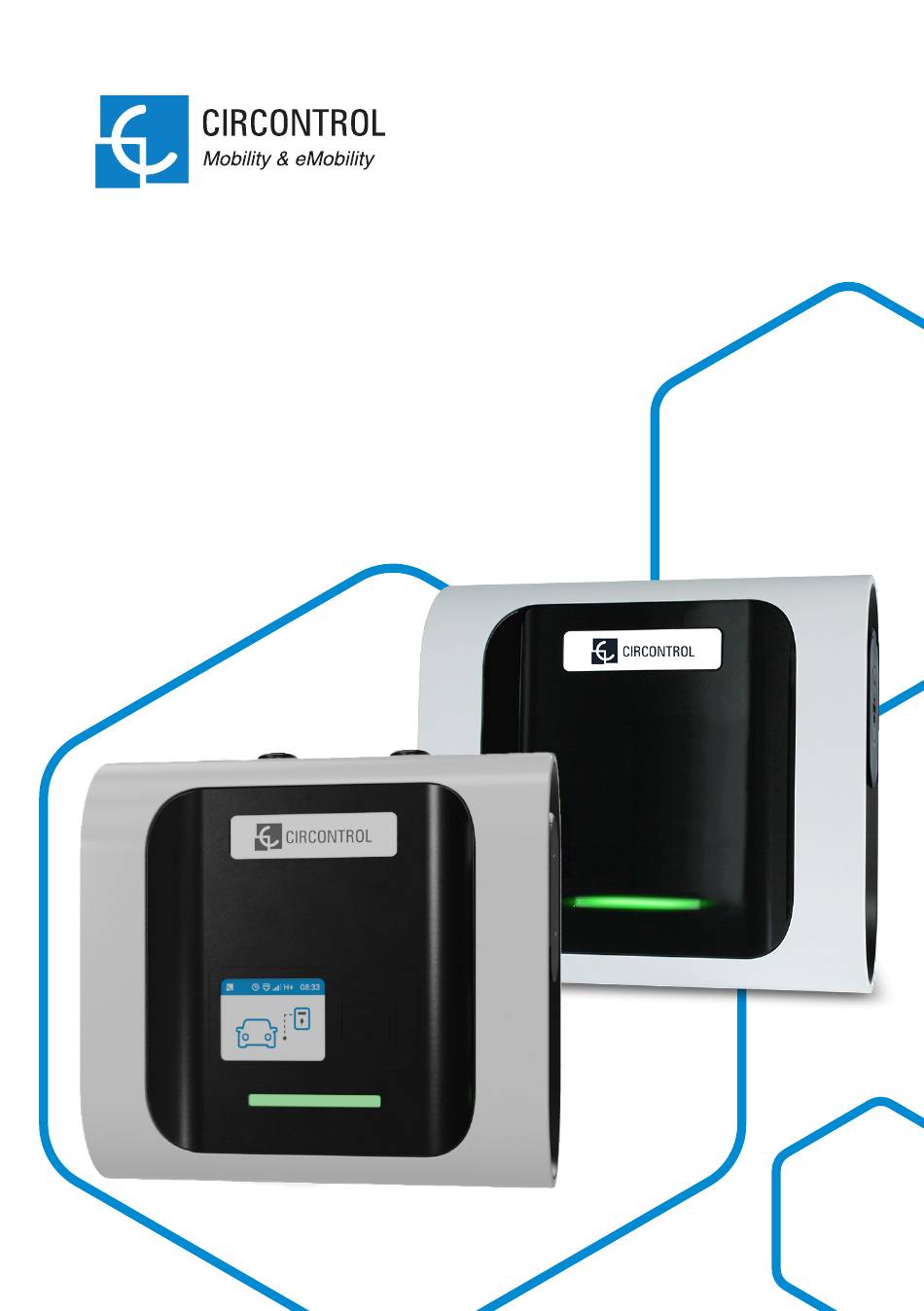

  • Page 1 Wallbox eNext Series Installation Manual...
  • Page 2 Wallbox eNext Series Installation Manual...
  • Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
  • Page 4 Wallbox eNext Series Installation Manual...

  • Page 5: Table Of Contents

    Here’s your guide to install eNext. 1 — So, hello! 2 — Before installation 3 — Overview 4 — Dimensions 5 — Installation A - Requirements B - Opening C - Positioning D - Fixing E - Wiring F - Home BeON G - DC current leakage detector H - Welded contactor detector I - Remote control function...
  • Page 6 Wallbox eNext Series Installation Manual...

  • Page 7: So, Hello

    So, hello! This manual provides commissioning information about Wallbox eNext series, which has been designed and tested to allow electric vehicle charging according to IEC 61851-1:2017. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT...
  • Page 8 Wallbox eNext Series Installation Manual I M P O R TA N T E L E C T R I C A L S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly handling of electrical parts.

  • Page 9: Before Installation

    • Do not modify this unit. If modified, Circontrol will reject all responsibility • Use only Circontrol supplied spare parts. and the warranty will be void. • Do not use this product if the enclosure • The Charge point does not support the...
  • Page 10 Wallbox eNext Series Installation Manual E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before starting wiring connections of the Charge Point.
  • Page 12 Wallbox eNext Series Installation Manual What’ s included: Charge Point Installation Manual Allen wrench Identification 2.5 mm label* (*) Not in the eNext Elite Model...

  • Page 13: Overview

    Overview 1 — Beacon lights 4 — Logo 7 — Wall support holes 2 — Colour Screen* 5 — Cable glands 8 — Closing box holes 3 — RFID reader* 6 — Socket-outlet** 9 — MID meter (*) Only in eNext Elite model (**) Plugs may vary depending on the model...
  • Page 14 Wallbox eNext Series Installation Manual Dimensions in mm...

  • Page 15: Dimensions

    Dimensions 52,5 62,5 62,5 52,5 39,5 20,5...
  • Page 16 Wallbox eNext Series Installation Manual Material: • Allen wrench of 2,5 mm is included in the installation kit. • Screws, sealing washers and plastic anchors are not included. • The fastening system of the Charge Point has been designed to be installed on a wall.

  • Page 17: Installation

    Requirements Please comply with your country regulations. • The Charge Point shall be installed on a wall or on Circontrol accessories. • When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. The picture below shows the recommended minimum distances:...

  • Page 18: B - Opening

    Wallbox eNext Series Installation Manual Opening Open the Wallbox using an Allen wrench. 2.5mm Allen wrench Screw DIN-7380-2 M4x14 INOX Sealing washer DIN 7712 4.8 14MM INOX Use the ratchet tool to open / close in conditions that hinder access...

  • Page 19: C Positioning

    Positioning Drill the wall. Drill bit M 6/8 1100 Dimensions in mm...

  • Page 20: D Fixing

    Wallbox eNext Series Installation Manual Fixing Place the unit on the previous pierced points and fix it with screws.
  • Page 21 Wiring and protections This Charge Point is designed to be permanently connected to an AC supply network. Use provided cable glands in order to maintain the IP protection The IEC-61851-1:2017 standard indicates that each Cable plug shall have protections. In case the Charge glands M32 Point has no protections inside, they shall be placed upstream.
  • Page 22 Wallbox eNext Series Installation Manual Terminal block maximum cross-section: 10mm Do not forget to connect the ground cable to the ground terminal block Type of cable allowed by the terminal block: Copper Make sure all screws are securely tightened at 1,5 Nm The three possible schemes are shown below: 1.
  • Page 23 2 A . W I R I N G D I AG R A M E X T E R N A L E L E C T R I C P R O T E C T I O N S W I T H F E E D BAC K I N CA S E O F W E L D E D C O N TAC T O R D C L E A K AG E SINGLE-PHASE Charge Point THREE-PHASE Charge Point...
  • Page 24 Wallbox eNext Series Installation Manual 2 B. W I R I N G D I AG R A M E X T E R N A L E L E C T R I C P R O T E C T I O N S...

  • Page 25: F - Home Beon

    Home BeON Home BeON is an optional device that optimises the charge. Analysing the total current consumption in residential facilities, Home BeON manages the remaining current for the Charge Point, avoiding any tripping on the Main Circuit. Please, note that this accessory is only available for single phase Charge Points.

  • Page 26: Gdc Current Leakage Detector

    Wallbox eNext Series Installation Manual DC current leakage detector This protection is performed in two different ways depending on the Charge Point power supply. • Single-phase power supply: The detector sends a signal to the Charge Point main PCB which stops the charge transaction by opening the inner relays. This error is notified by 6 blinking red lights.

  • Page 27: I - Remote Control Function

    Remote control function Remote control function is a potential free contact which allows the remote start and stop of a charge transaction. This remote control function is disabled by default, by means of a jumper (as shown in the picture below).

  • Page 28: J Closing

    Wallbox eNext Series Installation Manual Closing Close the Charge Point as per the following steps of verification and operation. P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks.
  • Page 29 S E C U R E C L O S U R E • Tighten the screws crosswise in the sequence shown below. • As a guideline, the recommended assembly torque is 0.8-1Nm. P R E V E N T I V E M A I N T E N A N C E It is recommended to perform one preventive maintenance per year.
  • Page 30 Wallbox eNext Series Installation Manual GENERAL DATA Beacon lights Frontal LED bar Display* 3,5" colour screen* RFID reader* ISO/IEC 14443A/B FelicA ISO 15693 ISO 18092 Available connectors Type 1 Cable Type 2 Cable Type 2 Socket Charging mode Mode 3...

  • Page 31: Technical Data

    Technical data CONNECTIVITY eNext Wireless communication Bluetooth v4.2 + BLE CONNECTIVITY eNext Elite Ethernet 10/100BaseTX (TCP-IP) Wi-Fi 2.4GHz (IEEE 802.11b/g/n) Cellular* Modem 4G / 3G / GPRS / GSM Interface protocol OCPP 1.6J ELECTRICAL DATA Power supply 1P+N+PE / 3P+N+PE Input/Output voltage 230VAC+/- 10% / 400VAC+/-10% 50Hz / 60Hz...
  • Page 32 Wallbox eNext Series Installation Manual...

  • Page 33: Need Help

    Need help? In case of any query or if further information is required, please contact our Post-Sales Department support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 34 Wallbox eNext Series Installation Manual...

  • Page 35: Notes

    Notes...
  • Page 36 Wallbox eNext Series Installation Manual CIRCONTROL WALLBOX ENEXT SERIES INSTALLATION MANUAL A comprehensive guide on how to install and verify your Wallbox eNext. V3.8, August 2021 Scan me to download the User Manual R398 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
