Outlets for each Master
We have different possibilities to be part of the Master-Satellite solution, with a maxi-
mum of 18 outlets, taking into account that 1 DC outlet equals to a 3 AC outlets.
J1772 Mennekes
(Type 1) (Type 2)

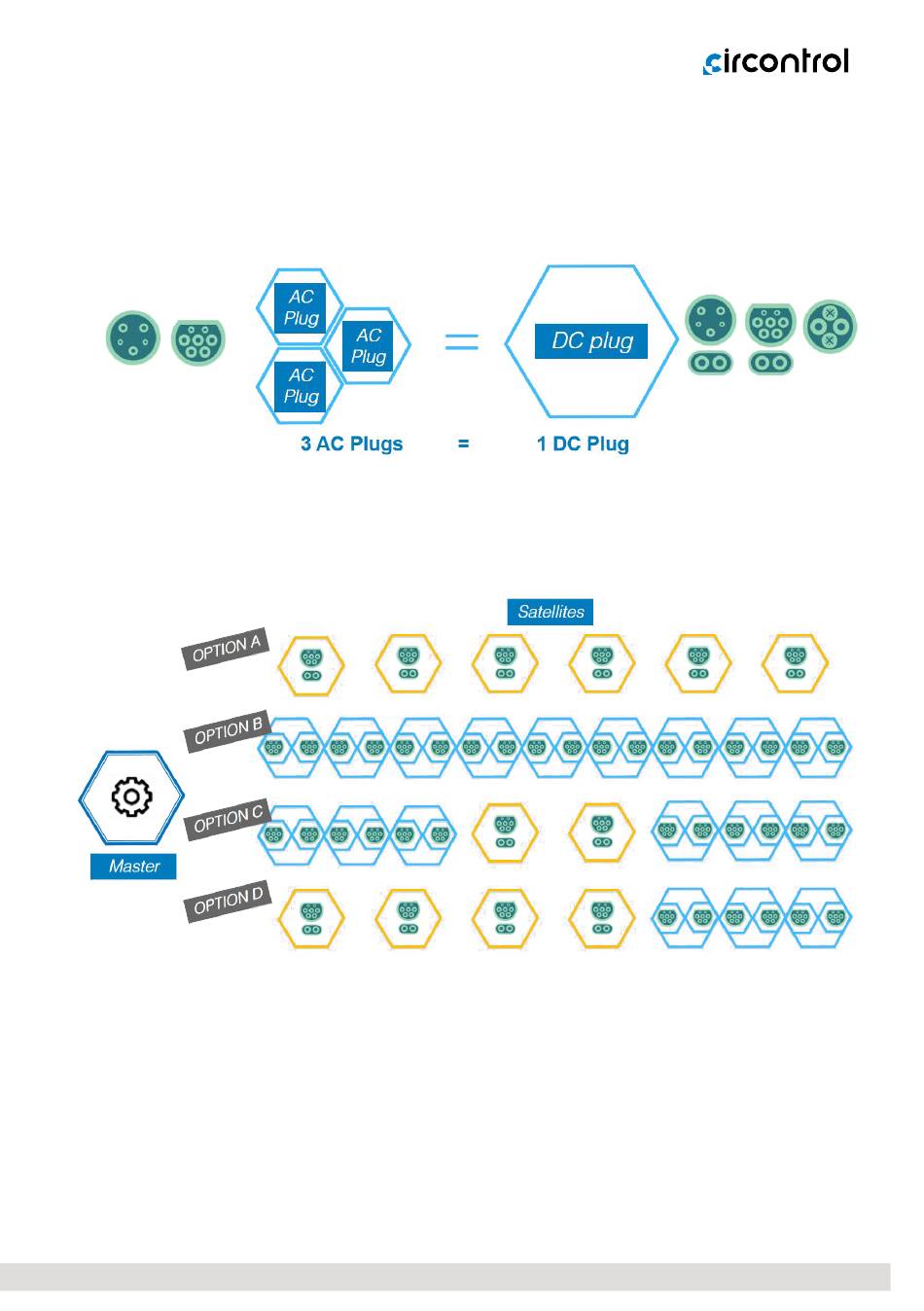

The following picture shows some of the many possible combinations that can be part
of the Master-Satellite solution*:
CCS 2
CCS 2
CCS 2 CCS 2
CCS 2 CCS 2
CCS 2 CCS 2
CCS 2
CCS 2
(*) Number of Satellite outlets up to 18 AC.
CHAdeMO
CCS 1 CCS 2
CCS 2 CCS 2
