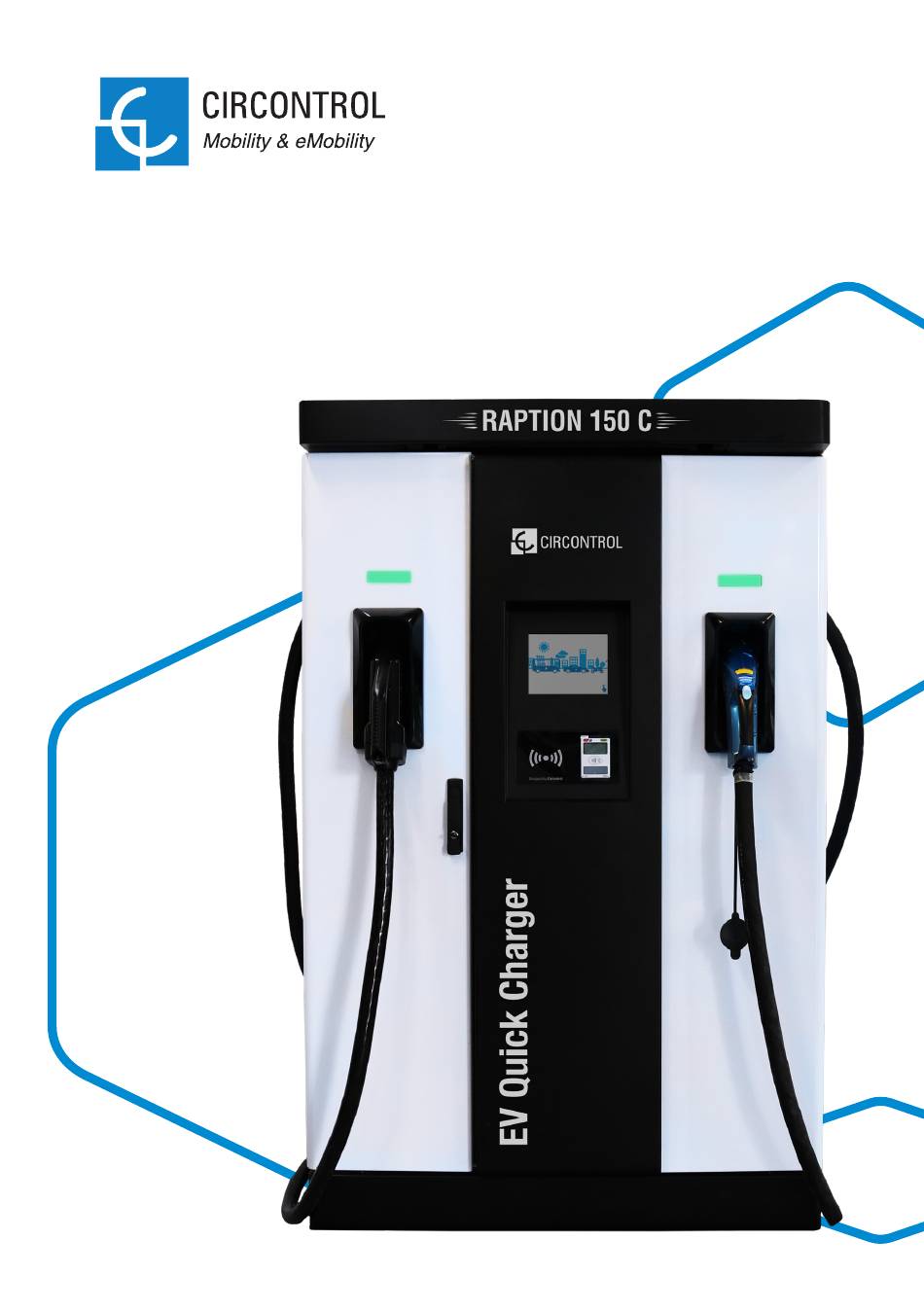

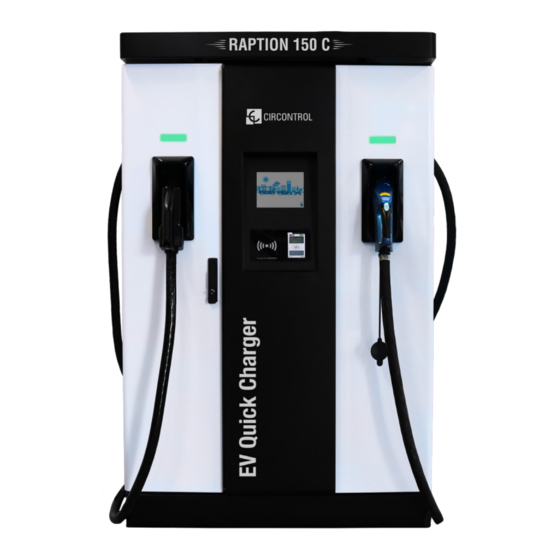

- Page 1 Raption 150 Compact Installation Manual...
- Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
Here’s your guide to install Raption 150 Compact 1 — So, Hello! 2 — Before the installation A - Important safety instructions B - Electrical wiring considerations C - Important electrical safety instructions D - EVSE Classification E - Storage F - Unloading and handling 3 —... - Page 6 It is mandatory to follow the basic security information supplied in this manual to ensure safe and proper installation. Failure to follow safety instructions may involve personal injury, equipment damage and danger of death. CIRCONTROL is not responsible for events arising from such breach. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT...
-
Page 7: So, Hello
So, hello! • Compliant with IEC 61851; Electric vehicle conductive charging system (IEC 61851-1, IEC 61851-21-2 and IEC 61851-23). • Compliant with IEC 62196, Plugs, sockets-outlets, vehicle connectors and vehicles inlets, Conductive charging of electric vehicles (IEC 62196-1, IEC 62196-2 and IEC 62196-3). •... - Page 8 Raption 150 Compact Installation Manual Important safety instructions Read carefully all the instructions before starting in order to ensure properly installation of the Charge Point. The Charge Point is designed for installation at indoor and outdoor areas. For each of the different conditions of installation, the unit must be installed safely and ensure adequate protection.
-
Page 9: Before The Installation
Before the installation Electrical wiring considerations Take into consideration this section before start wiring connections of the Charge Point. 1 - I N P U T P O W E R S U P P LY The input power supply line for the Charge Point must be hardwired from a dedicated power transformer or generator and not by LV overhead power lines. -
Page 10: C Important Electrical Safety Instructions
Raption 150 Compact Installation Manual Important Electrical Safety Instructions Read carefully all the instructions before starting inorder to ensure properly handling of electrical parts. A safe work environment is not enough to control all potential electrical hazards. It is recommended to be very cautious and work safely. So, the safety rules shown below could help to control risks of injury or death from workplace hazards. -
Page 11: Devse Classification
EVSE Classification Classification of the unit according to the IEC 61851-1:2017: 1 — Power supply Input • EV supply equipment connected to AC supply network • Permanently connected 2 — Power supply Output • DC EV supply equipment 3 — Environmental conditions •... -
Page 12: E Storage
Raption 150 Compact Installation Manual Storage Whenever possible, the Charge point must be unloaded in their place of installation and operation. In case of unloaded to a temporary location for storage, it is convenient to not remove the packaging and store them meeting the following minimum requirements: •... -
Page 13: F Unloading And Handling
Unloading and handling All processes of unloading and handling of the Charge Point must be executed and monitored by qualified personnel attending to the significant weight of the unit, complying with safety rules and using the appropriate points of support. Important notes: •... - Page 14 Raption 150 Compact Installation Manual Dimensions • Units specified in millimeters: 1290 1140...
-
Page 15: Dimensions And Overview
Dimensions and Overview Overview 1- Cover 2- CCS light beacon 3- CCS holder 4- CCS connector 5- Handle 6- RFID reader 7- Credit card payment 8- Touch screen 9- Air inlet Unit 10- CHAdeMO light beacon 11- CHAdeMO holder 12- CHAdeMO connector 13- Power M. -
Page 16: A Minimum Distances
Raption 150 Compact Installation Manual Minimum distances When installing the Charge Point, respect the minimum distances for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. -
Page 17: B Foundation
Installation Foundation The purpose of this chapter is the technical definition and basic requirements for implementing the base and fixing the Charge Point. • The unit is adequate for indoor and outdoor installation • A foundation kit with a mounting template is provided to ensure the distances between the foundation bolts. - Page 18 Raption 150 Compact Installation Manual...
- Page 20 Raption 150 Compact Installation Manual • Place the foundation bolts into the templates using provided nuts with the help of a 24mm open-end wrench. Take into consideration the following measures. Step 1 Step 2...
- Page 21 160,5 Before fixing the template inside of the concrete basement make sure front mark must face with the front side of the charger • Once the kit is assembled, it must be placed in the ground. If the Charge Point has to be installed outside and there is no limitation of depth, is recommended to make a concrete base.
- Page 22 Raption 150 Compact Installation Manual FOUNDATION MEASUREMENTS ORIENTATIONAL FOUNDATIONS FOR RAPTION TYPE OF TERRAIN FOUNDATION SIZE COMMENTS (kg/cm (Az x Bz x Hz) cm SOFT 130 x 65 x 65 For example vegetal not compact terrain COMPACT 130 x 60 x 55...
-
Page 23: C Opening
Opening Step 1 • Left door: Step 2 Step 3 Steps: 1- Insert the key supplied in the lock and turn it 90 ° counterclockwise. 2- Pull back the handle. 3- Turn the handle 90 ° clockwise direction. - Page 24 Raption 150 Compact Installation Manual • Right door: Step 1 Steps: 1- Push on the round metallic button placed behind to the mechanic lock. On the top and the bottom part of the Right door.
-
Page 25: D Placing
Placing In order to place the Charge Point in its final location, please follow the next steps: 1 — R E M O V I N G T H E C H A R G E P O I N T F R O M PA L L E T The Charge Point is mounted on a pallet so as to do a safe transport. - Page 26 Raption 150 Compact Installation Manual 2 — P L AC I N G T H E C H A R G E P O I N T T O T H E F I N A L L O C AT I O N Once the Charge Point is free from the pallet, there are two options to move it to the final location.
- Page 27 Step 3 Step 4 Step 5 Steps: 3- Hold the sling to the eyebolts, raise the Charge Point up and placed on the final location. 4- Screw the 4 x M16 nuts with washers on the threaded rods already installed on the base (on both sides), place again the unit cover.
- Page 28 Raption 150 Compact Installation Manual b) Move the Charge Point with manual forklift or forklift truck . Step 1 Step 2 Steps: 1- Remove the decorative rear panel. Pull outward the metal flange (on both sides). 2- Move out the metal flange (on both sides) and remove the decorative rear panel.
-
Page 29: E Wiring
Wiring Regardless of the electrical characteristics of the power line, be sure to supply to the Charge Point with the necessary electrical features indicated at the unit characteristics label, understood as, supply voltage, grid frequency and required apparent power. In the case that the power line characteristics are different from those required, must do the necessary adaptation of the same to meet this requirement. - Page 30 In the case of not using this metal plate and any damage to internal components arises due to the entry of dirt, animals or any other external element, Circontrol will reject any warranty claim against the unit: Step 1...
- Page 31 Power input connection - Connecting cable - OPTION A: Charge Point must be supplied with: 1. Three phases + Neutral (400V 50Hz) 2. Earth cable...
- Page 32 Raption 150 Compact Installation Manual Power input connection - Connecting cable - OPTION B: Charge Point must be supplied with: 1. Three-phase power source - Three phases + Neutral (400V 50Hz) - Earth cable 2. Single-phase power source 400V 50Hz III+PE...
- Page 33 Power input connection - Wiring: PHASE NEUTRAL Minimum recommended cable 150 mm2** 70 mm2 70 mm2 cross sectional area * (*) This is the minimum recommended cable cross sectional area for the maximum AC input current (see datasheet) using multi-core copper cables with three loaded conduc- tors for installations in conduit in a thermally insulated wall (A2 method according to IEC-60364-5-52).
-
Page 34: F Verification
In order to use and configure the Charging Station there is an User Manual. To get it, download it from the Expert Area or send a mail to support@circontrol.com. Note: Ask Circontrol PS-Support Department in order to register in the Circontrol... - Page 36 Raption 150 Compact Installation Manual GENERAL SPECIFICATIONS AC Power Supply 3P + N + PE AC Voltage 400V AC +/- 10% Maximum AC input current 237A Required power supply capacity 163kVA Power Factor 0.98 Efficiency 95 % at nominal output power...
-
Page 37: Technical Data
Switch TCP ethernet 12 ports RFID Extension Legic Advant / Legic Prime ISO 15693/ISO 18092. Sony FeliCa Contacless payment Integrated credit card payment terminal Models Specifications Raption 150 Compact CCS CHA CCS CCS Models Maximum output power CCS: 150 kW CCS: 150 kW... - Page 38 Raption 150 Compact Installation Manual...
-
Page 39: Need Help
Need help? In case of any query or need further information, please contact our Post-Sales Department support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941... - Page 40 CIRCONTROL Raption 150 Compact INSTALLATION MANUAL A comprehensive guide on how to install and verify your Raption 150 Compact Charging Station. V1.0, January edition 2022 R484 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
