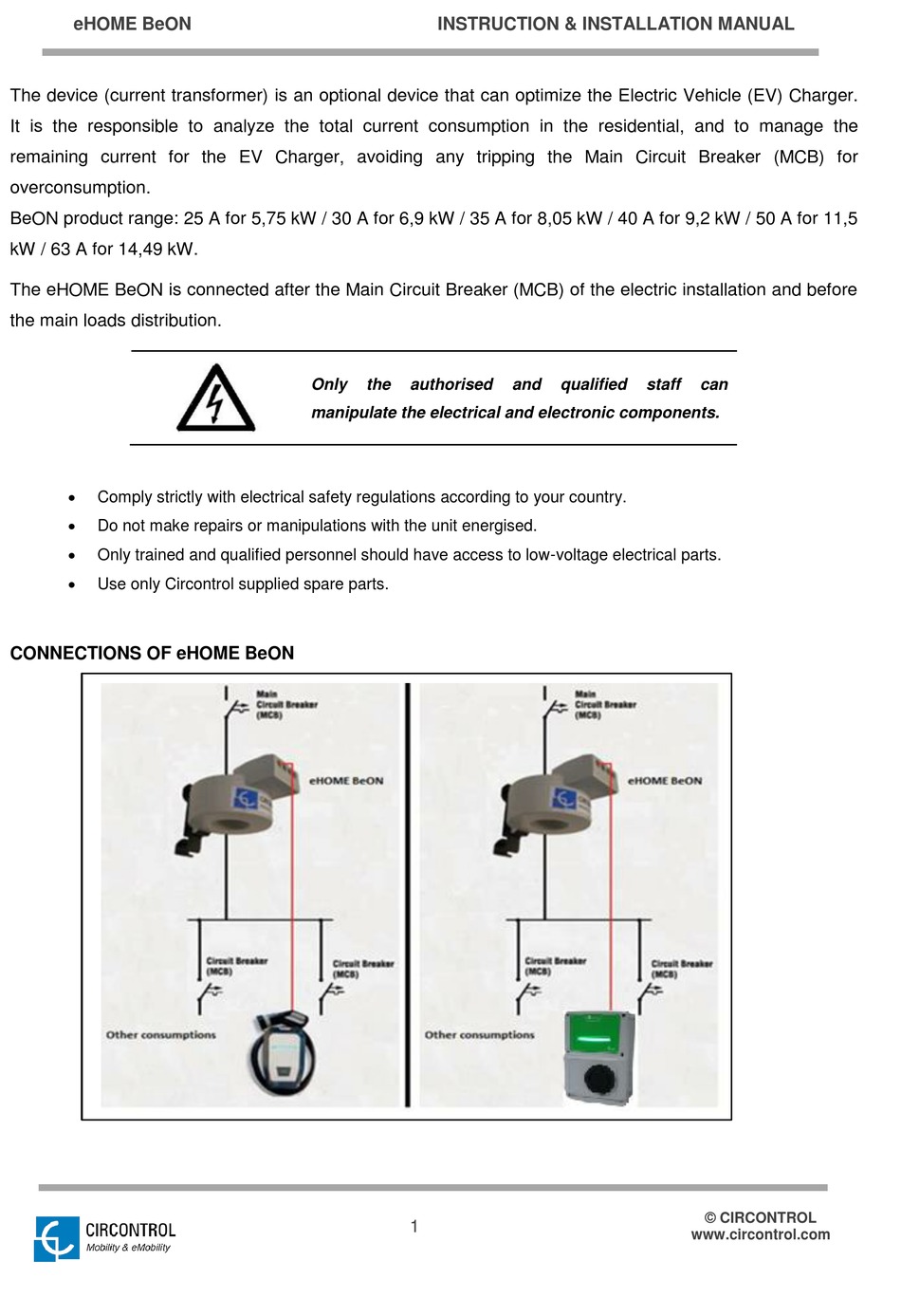

Circontrol eHOME BeON Instruction & Installation Manual

eHOME BeON

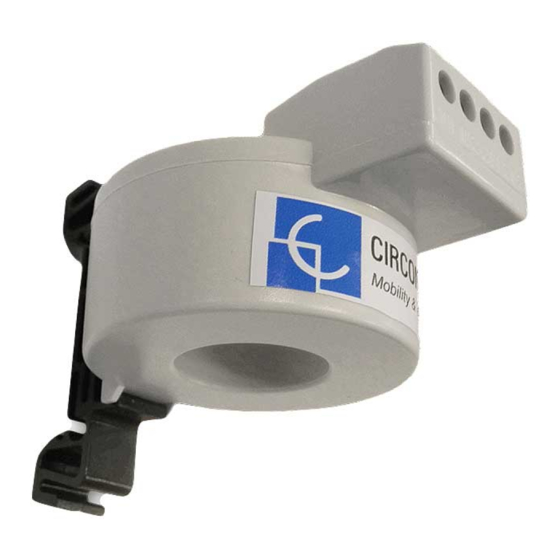

The device (current transformer) is an optional device that can optimize the Electric Vehicle (EV) Charger.
It is the responsible to analyze the total current consumption in the residential, and to manage the
remaining current for the EV Charger, avoiding any tripping the Main Circuit Breaker (MCB) for
overconsumption.
BeON product range: 25 A for 5,75 kW / 30 A for 6,9 kW / 35 A for 8,05 kW / 40 A for 9,2 kW / 50 A for 11,5
kW / 63 A for 14,49 kW.
The eHOME BeON is connected after the Main Circuit Breaker (MCB) of the electric installation and before
the main loads distribution.

Comply strictly with electrical safety regulations according to your country.

Do not make repairs or manipulations with the unit energised.

Only trained and qualified personnel should have access to low-voltage electrical parts.

Use only Circontrol supplied spare parts.
CONNECTIONS OF eHOME BeON
INSTRUCTION & INSTALLATION MANUAL
Only the authorised
manipulate the electrical and electronic components.
1
and qualified staff can
© CIRCONTROL
www.circontrol.com
