Charge information

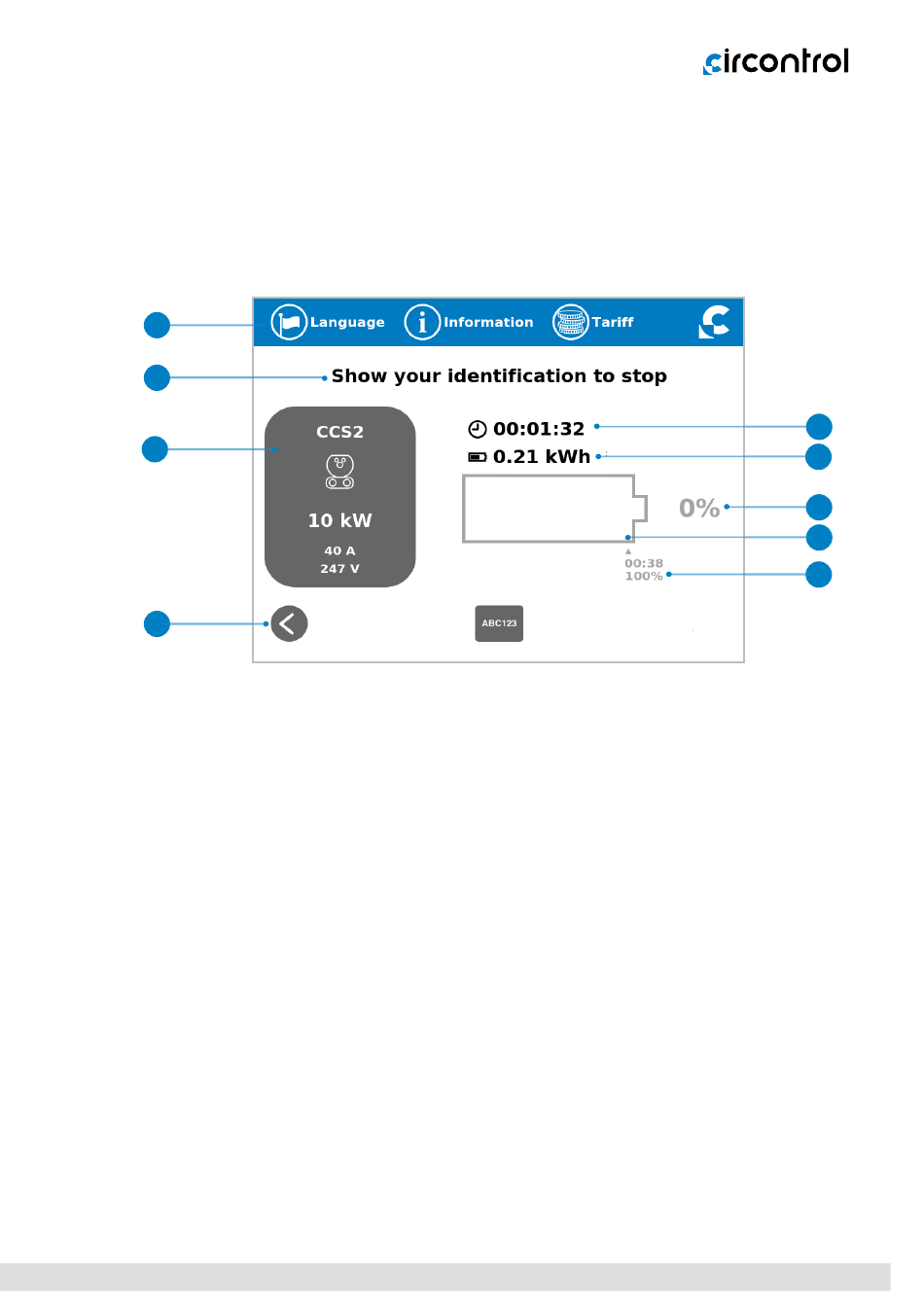

Depending on the connector used, the HMI screen can show different process
information. The information is almost the same except for few details.
1
2
3
4
1- Language button: possibility to change the HMI language.
2- Additional information: current status, errors, battery status, etc.
3- Connector information: type and identificator of connector, power of charge, etc.
4- House touch button: it goes back to the "identification screen".
5- Charge time with status bar: charging time elapsed so far.
6- Energy charged: energy supplied to the vehicle so far.
7- Battery SOC*: it indicates the current battery state of charge.
8- Process indicator: at first moment it is red, as the vehicle is charging it will change
to orange, changing after 75% of battery charged to green.
9- Remaining time until 100 %*: remaining time until 100 % of the SOC.
(*) This information is only available in Raption and evolve Rapid series models.
