Modem configuration
1 — M O D E M O V E R V I E W
The 4G modem installed from factory in the Charge Point is one of the RUT24X series
from Teltonika.
This device allows to the Charge Point connects over 4G networks to remotely view
or manage the Charge Point status. RUT24X series are compact mobile routers with
high speed wireless and Ethernet connections.
(*) WAN Ethernet port is set up as a LAN Ethernet port in order not to disconnect
modem from Charge Point during service issues.

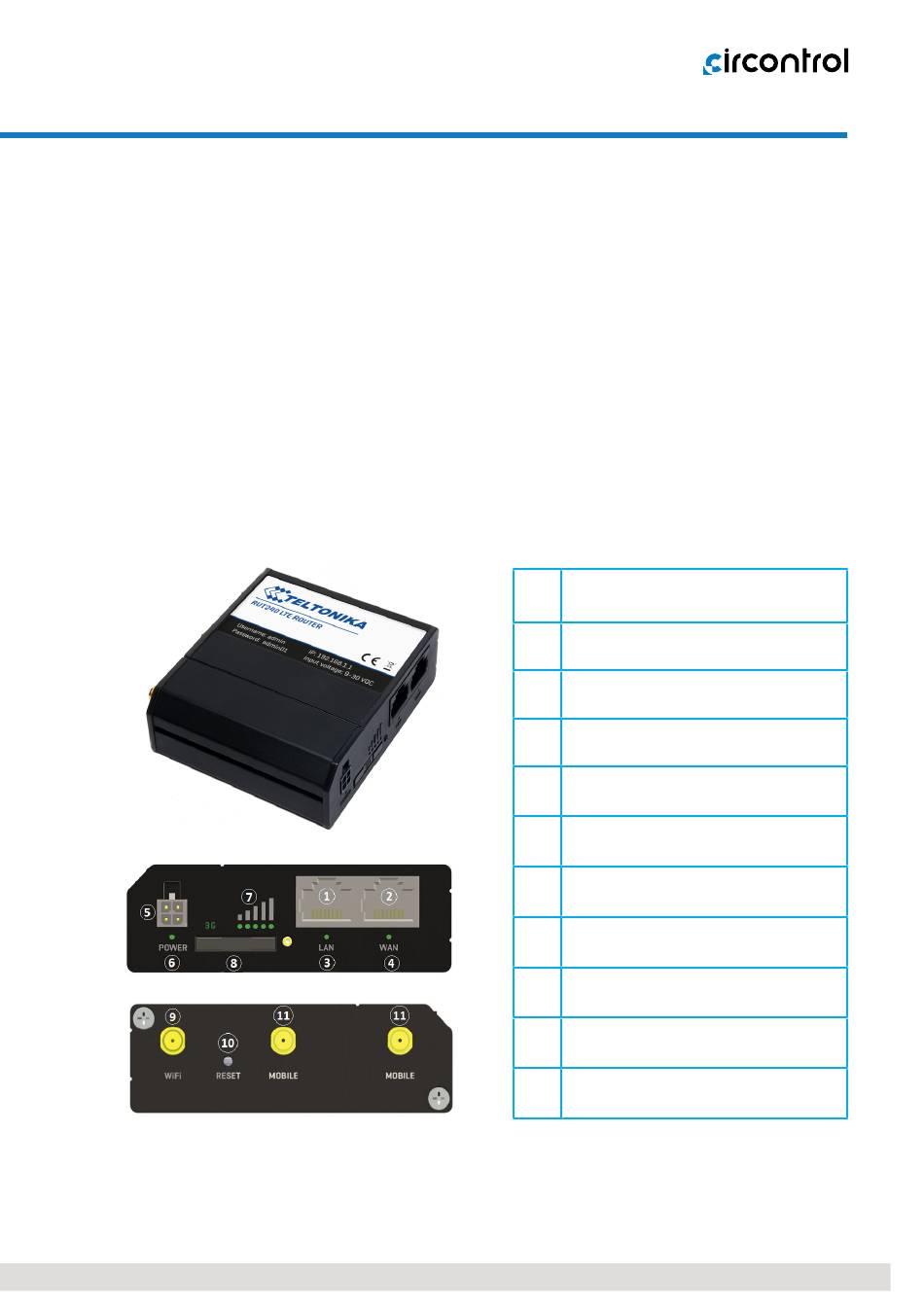

1 LAN Ethernet port
2 WAN Ethernet port*
3 LAN Led indicator
4 WAN Led indicator
5 Power connector
6 Power LED
7 Signal strength indication LEDs
8 SIM card holder
9 WiFi antenna connector
10 Reset button
11 LTE antenna connectors
