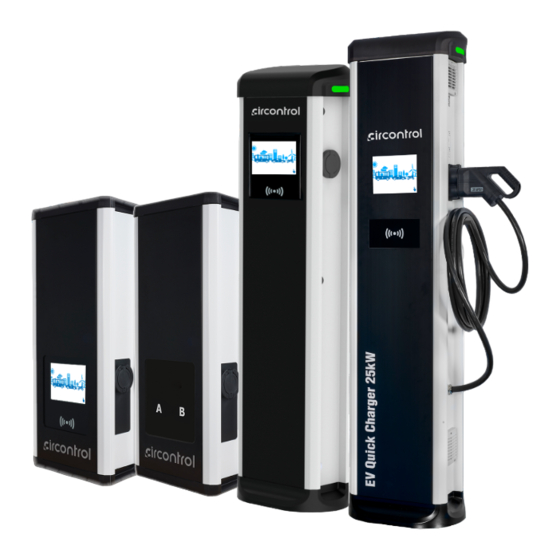

Summary of Contents for Circontrol Master-Satellite

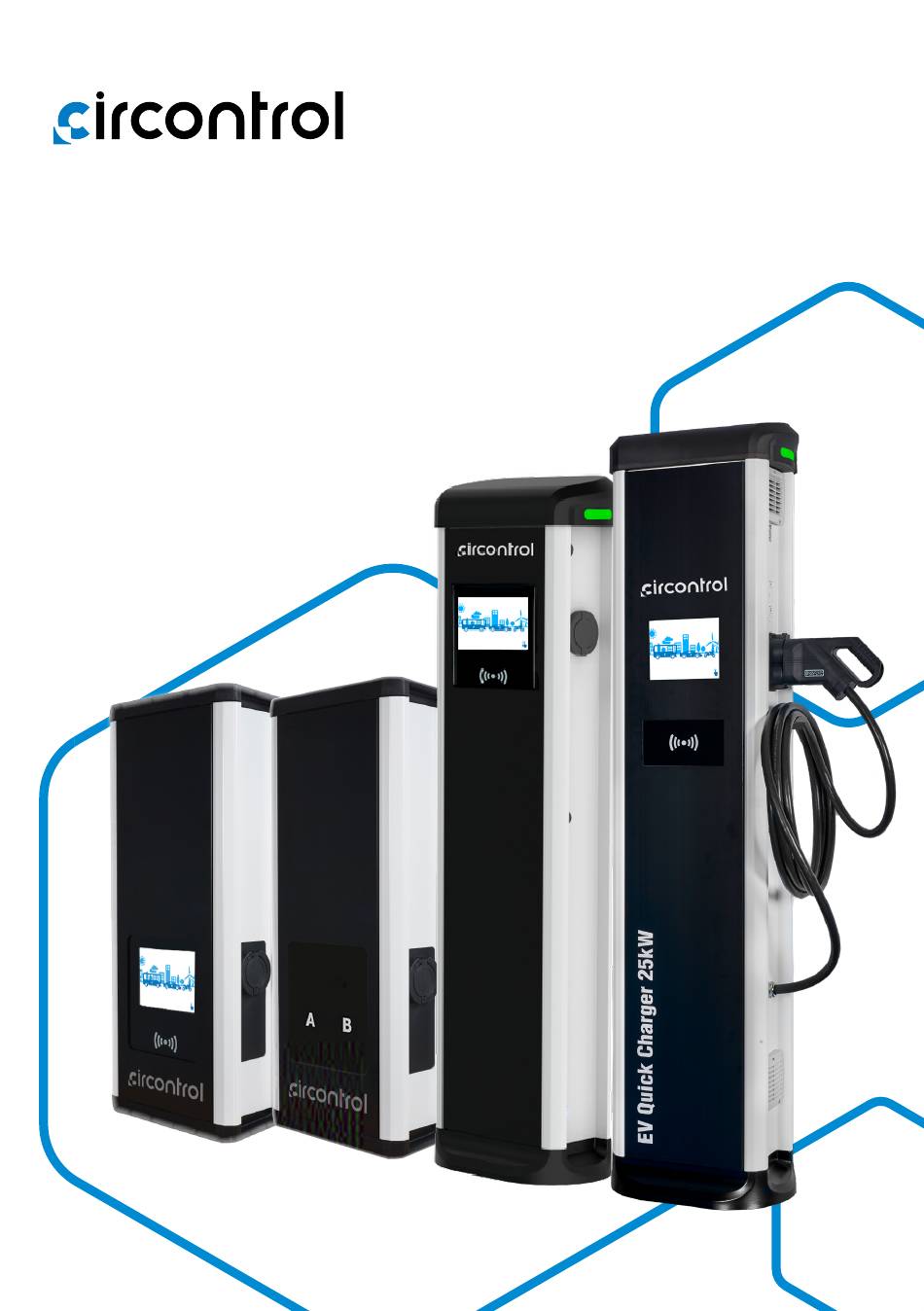

  • Page 1 Master-Satellite User manual...
  • Page 2 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 3 C O P Y R I G H T I N F O R M A T I O N This document is copyrighted, 2023 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 4: Table Of Contents

    Here’s your guide to use and configure your Master-Satellite solution 1- So, hello! 2- Features 3- How to use it? A- General B- Language C- Starting a charging session D- Special events starting a charge E- Stopping a charging session...
  • Page 5 5- Communications A- Introduction B- Modem configuration 6- Setup Webpage A- Dashboard B- Monitor C- Historic D- Integrations E- Configuration F- Maintenance 7- OCPP 1.6J A- Introduction B- Before starting C- Configuration 8- Monitoring 9- Technical Data A- AC Charge B- DC Charge 10- Need help?

  • Page 6: 1- So, Hello

    So, hello! This manual provides information about the usability and configuration of the Master-Satellite solution, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. It contains all the necessary information for safe use and help to get the best performance from it with step-by-step configuration instructions.
  • Page 7 I M P O R T A N T S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly installation of the Charge Point. • Do not use the Charge Point for • Use only Circontrol supplied spare anything other than electric vehicle parts. charging modes which are defined in IEC 61851-23.

  • Page 8: 2- Features

    • Key lock access: Security that does not enable access to the inside of the charger. • Built-in courtesy light*: Facilitates locating the charge point in dark areas and reading the operator instructions. • Integrated payment system (optional): Availability for contactless card payment. (*) Availability depending on the model CIRCONTROL — Master-Satellite User Manual...
  • Page 9 Satellite • Connector Lock: Available lock system to avoid disconnection of EV meanwhile is charging. • Light beacon: Three LED colour indicate all connector status (free, error, charging or completed) at a glance. • Energy metering: Integrated meter built is measuring power and energy consumed by the EV during a charge transaction.
  • Page 10 Post eVolve Satellite C63 One Wallbox eVolve Satellite S/T Raption 50 Raption HV Raption HV EVO Raption 100 Raption 150 Raption 150 Compact Raption 200 Raption 400 Post eVolve Rapid Master Wallbox eVolve Rapid Satellite Post eVolve Rapid Satellite CIRCONTROL — Master-Satellite User Manual...
  • Page 11 Outlets for each Master We have different possibilities to be part of the Master-Satellite solution, with a maxi- mum of 18 outlets, taking into account that 1 DC outlet equals to a 3 AC outlets. CHAdeMO J1772 Mennekes CCS 1...

  • Page 12: 3- How To Use It

    How to use it? General The first time the Charge Point is powered on, the system will take around 10 seconds to start up, the screen will show next image: Version In the lower right corner, the firmware version is shown. After 10 seconds, the first screen that appears is the screensaver. CIRCONTROL — Master-Satellite User Manual...
  • Page 13 When tapping on the screen, the HMI will skip to the next one:* At this new screen, the Charge Point is asking for showing the identification method the user is going to use in order to start a charge transaction, as you can see there are four possible options. - Choosing RFID or keyboard options, are the options that will let to initiate a ‘Charging session’ to the user that has the identification card, has been registered in advance or a code has been given to type it manually in the screen.

  • Page 14: B- Language

    Transaction. When Charge Point returns to main or standby screen, it will return the default language, which is configured in the Setup Webpage. The availability of the different languages is subject to the firmware version. In case of doubt, please ask your local supplier. CIRCONTROL — Master-Satellite User Manual...

  • Page 15: C- Starting A Charging Session

    Starting a charging session Once the identification card is shown, it may take a few seconds to authorize the access. The HMI informs if the access is granted or not.
  • Page 16 Once the connector is chosen, instruction screens will appear successively. 1- Connect your vehicle and press the ‘Start’ button At any time is possible to tap this button in order to go back to the previous screen. CIRCONTROL — Master-Satellite User Manual...
  • Page 17 2- Checking vehicle connection… Please wait In a few seconds, the charging session will start and the HMI will show the charging process. Tap this button in order to go back to the “identification screen”.

  • Page 18: D- Special Events Starting A Charge

    Special events starting a charge “Not authorized”: some Charge Points could be working under the supervision of a main management system. If the user is not authorized, the HMI will show the following message: “Authorization failed”: the authorization could not be completed due to some communication problem with the Back Office. CIRCONTROL — Master-Satellite User Manual...
  • Page 19 It is possible that the Charge Session could not be started due to some unexpected reason. The HMI will show next screen, press ‘Retry’ button and try again.

  • Page 20: E- Stopping A Charging Session

    After showing the same identification card that started the Charging Session, the Charge Point will automatically allow to stop the charging session, press over the ‘Stop’ button: Once the charging session is stopped, the HMI shows the summary screen. CIRCONTROL — Master-Satellite User Manual...

  • Page 21: F- Charge Information

    Charge information Depending on the connector used, the HMI screen can show different process information. The information is almost the same except for few details. 1- Language button: possibility to change the HMI language. 2- Additional information: current status, errors, battery status, etc. 3- Connector information: type and identificator of connector, power of charge, etc.

  • Page 22: G- Charge Summary

    7- Information button: pressing over this button you can get information about the charging session tariff applied. 8- Stop reason: It shows why the charging session has been stopped. (*) This information is only available in Raption and evolve Rapid series models. CIRCONTROL — Master-Satellite User Manual...

  • Page 23: H- Emergency Button

    Emergency button If for any reason the Emergency button is pressed, all in progress charge transactions will be stopped, the beacon lights will turn red and it will not be possible to start new charge transaction until the recovery process is completed successfully. All the power modules will shut down in order to protect the user and the own Charge Point.

  • Page 24: I- Connector Status

    The Charge Point is out of service because the emergency button has been pressed. This fact affects all the connectors at the same time. Applies when simultaneous charge is not available. In case, one connector is booked or already in use. CIRCONTROL — Master-Satellite User Manual...

  • Page 25: J- Errors

    Errors The Charge Point can report about different sort of errors, it can be from different parts or devices from it. When the ‘Error screen’ appears, the ‘Information’ touch button has to be pressed in order to see the error message, as you can see below: Chargepoint: 0x0 Plug: 0x20000 Socket: 0x2000...
  • Page 26 Charge point: General errors affecting the whole charge Point (E.g.: RFID error). Plug: Error affecting one plug. All sockets are in error state. Plug is inoperative. Socket: One plug may have more than one socket. Error can affect one socket and plug still being available. CIRCONTROL — Master-Satellite User Manual...
  • Page 27 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 28: 4- How To Connect It

    The Master Charge Point and all the Satellite Charge Points must be connected to the same Ethernet Switch before proceeding with the commissioning. *The Switch Device may be located inside the Master Charge Point as an optional. CIRCONTROL — Master-Satellite User Manual...

  • Page 29: B- Introduction

    HMI screen. on the TCP1RS. The location of this device may vary depending on the model, for more information please contact Circontrol Post-Sales Department. Before proceeding , make sure all the following is ready: Computer running UTP Cable (at least one IPSetup.exe ( Can be...

  • Page 30: C- Ipsetup

    1 - Connect the UTP Cable to the Computer (running Microsoft Windows, at least Windows XP) and the Ethernet Switch. The Computer and the Charge Point must be in the same network and in the same range. 2 - Execute IPSetup_v21.exe on the Computer. CIRCONTROL — Master-Satellite User Manual...
  • Page 31 3 - Choose between TCP1RS+ and TCP2RS+ depending on the type of Charge Point are you working with: TCP1RS+: Charge Point working as a Satellite TCP2RS+: Charge Point working as a Master 4 - Enter the following parameters and click on ‘Configure’ •...
  • Page 32 5 - In case of TCP1RS+ please select Protocol “UDP”, Port “10002” and Communication Speed “9600”: 6 - Wait 30 seconds approximately until the process is complete. 7 - The process will complete when the following message appears, by clicking on ‘OK’ the setup web-page will open. CIRCONTROL — Master-Satellite User Manual...
  • Page 33 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 34: 5- Communications

    Step 1- Open Charge Point’s door and locate the modem. Step 2- Check that the Charge Point is provided with the antenna on the cover top. Modem is fully configurated by default in Circontrol. Only in case it is needed to configure it, remain in this section.

  • Page 35: B- Modem Configuration

    Modem configuration 1 — M O D E M O V E R V I E W The 4G modem installed from factory in the Charge Point is one of the RUT24X series from Teltonika. This device allows to the Charge Point connects over 4G networks to remotely view or manage the Charge Point status.
  • Page 36 Blinking from 2G LED to 4G LED repeatedly: SIM holder not inserted or access to network denied • 2G/3G/4G LED turned on: connected 2G/3G/4G with data session • 2G/3G/4G LED blinking rapidly: connected 2G/3G/4G with data session and data is being transferred. CIRCONTROL — Master-Satellite User Manual...
  • Page 37 3 — S I M C A R D I N S T A L L A T I O N Insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card orientation is shown in the picture. 1.
  • Page 38 4.1 Connect your ethernet cable in the LAN port and do all the settings being locally connected (it can also be done from the WAN port when WAN port is configured as a LAN). 4.2 At your service computer, look for access point named ChargePoint_xxxxxxxxxxxx (where “x” means the serial number), and connect on it. 4.3 Open a web browser and type http://192.168.1.1, as shown in the front part of the modem. CIRCONTROL — Master-Satellite User Manual...
  • Page 39 Use the following parameters when prompted for authentication, and then either click Log in. User name: admin; Password: Admin001 In order to change the password, remember to adjust it in Charge Point side, as explained in section 6. You have now successfully logged, from here on you can configure almost any aspect of your router. 4.4 Configuration Wizard will start after logging in.
  • Page 40 4.5 Network Mobile configuration. Here you can configure mobile settings which are used when connecting to your local network. Depending on the mode you are logged in, the screw flow is different: - Basic mode: Go to Network > WAN > mob1s1a1 > Auto APN (on) > save & apply Not necessary to type an APN. CIRCONTROL — Master-Satellite User Manual...
  • Page 41 1. If your SIM provider require any authentication ask them about what type, PAP or CHAP, select it on Authentication method field and introduce a password and username. 2. If you need to do some custom over the modem configuration, ask the Circontrol Support staff in order to get the Teltonika modem manual.
  • Page 42 - Advanced mode: Go to Network > Interfaces > General > mob1s1a1 > Auto APN (on) > save & apply Not necessary to type an APN. CIRCONTROL — Master-Satellite User Manual...
  • Page 43 1. If your SIM provider require any authentication ask them about what type, PAP or CHAP, select it on Authentication method field and introduce a password and username. 2. If you need to do some custom over the modem configuration, ask the Circontrol Support staff in order to get the Teltonika modem manual.
  • Page 44 Go to Status > Network > LAN > LAN information and pay attention to IP addresses At ‘DHCP Leases’ check that the modem has detected the automatic IP address and MAC number for both, your Service PC and the Charge Point. CIRCONTROL — Master-Satellite User Manual...
  • Page 45 NOTES: 1. If the modem has not detected the automatic IP address, switch off the circuit breaker, wait for 10 seconds and switch on again. Connect again your Service PC to the access point named ChargePoint_xxxxxxxxxxxx, and repeat the steps 4.3 y 4.6. 2.
  • Page 46 ChargePoint_xxxxxxxxxxxx, to identify it easier. MAC address - It will be the MAC number found behind the HMI screen, on the label IP address - 192.168.1.50 After filling the fields, push over ‘Save & Apply’ button. CIRCONTROL — Master-Satellite User Manual...
  • Page 47 4.8 Disconnect the MCB inside the Charge Point in order to do a hard reset over the modem and the HMI screen, after 10 seconds switch ON again the MCB. 4.9 Repeat again the points 4.2 and 4.3 explained above: 4.2 - look for modem access point and connect on it.
  • Page 48 192.168.1.50 8080 8080 192.168.1.50 8080 50000 50000 192.168.1.50 50000 9191 9191 192.168.1.1 If necessary, it is possible to enable the other ports or introduce them following the table listed above. Push over ‘Save & Apply’ button after any modification. CIRCONTROL — Master-Satellite User Manual...
  • Page 49 4.12 Go to Network > Firewall > Traffic Rules (only in Advanced mode) Roll down and look for ‘Enable_HTTP_WAN’ and ‘Enable_HTTPS_WAN’ fields and enable these. Roll down again and push over ‘Save & Apply’ button.
  • Page 50 During the process, the system will show the progress, do not switch off the modem. 4.14 Repeat again the points 4.2 and 4.3 explained above: 4.2 - look for modem access point and connect on it. 4.3 - log on modem webpage with authentication. CIRCONTROL — Master-Satellite User Manual...
  • Page 51 4.15 It is necessary to check that the Teltonika RUT24X LTE modem option is chosen at Charge Point’s setup webpage: Make sure that your Service PC is still connected with the Charge Point through wifi, open a web browser and type 192.168.1.50. Go to Configuration > Communications > General Teltonika RUT24X LTE Click over the ‘Save’ button located at the top right corner.

  • Page 52: 6- Setup Webpage

    In the next points, they will be explained. Dashboard In the right top corner it is shown the search engine icon, the language list and information about the Charge Point. Once the info button is pressed, it appears the screen displayed above, with model and firmware version information, among others. CIRCONTROL — Master-Satellite User Manual...
  • Page 53 COMMUNICATIONS As a relevant information, it shows: Value Description Short for Internet Protocol. Identifier that allows information to be sent between devices on a network. MAC Address Identifier of the network card of the Charge Point CHARGE POINT It is displayed if the Charge Point is available to be used or not.

  • Page 54: B- Monitor

    It is possible to start or stop a charging session, able or disable a connector or lock or unlock it remotely. It is also shown when connector individually has an internal error, and an error code, in order to look for the type of fault. CIRCONTROL — Master-Satellite User Manual...

  • Page 55: C- Historic

    Historic This section provides information of every charge transaction started in the Charge Point. It can be checked date and hour of begin and end of a charge transaction, energy charged, alias of the user and type of charge used. All of this elements have the chance to be organized depending on the user needs.

  • Page 56: D- Integrations

    Clicking over the ‘Integrations’ tab, user will be able to activate OCPP integrations. NOTE: the integration of the Charge Point needs a separate chapter. In the next chapters number 6 and 7 it is explained how to integrate OCPP. CIRCONTROL — Master-Satellite User Manual...

  • Page 57: E- Configuration

    Configuration In this section, there can be adjusted many different settings related with the Charge Point, depending on the elements it has and level of security it is desirable to have. IDENTIFICATION METHOD It is possible to enable or disable the option in order to use the Charge Point with or without identification, and also, if the user is capable to stop charge transaction. When the Charge Point includes payment terminal, it is necessary to enable the option to let the user pay with this method.
  • Page 58 Upload configuration allows to upload the configuration file with the payment gateway keys supplied by the specific financial service or bank. It can be downloaded the existing file whenever it is necessary. PLUGS It is possible to choose charging with quick charging, slow charging or both, depending on the needs of the Charge Point. CIRCONTROL — Master-Satellite User Manual...
  • Page 59 CHARGE: The Charge Point is capable of balancing the available power based on the number of outlets in use. Value Description ENABLE: the Charge Point shares equally the power delivered to each ongoing Charge Transaction without exceeding the limit Power configured.
  • Page 60 Description It indicates the power available to divide between the Max.current supply (A) is the connected vehicles. The Shared power available power ONLY for AC outlets. OCPP-Smart The power balance is made via OCPP. Charging CIRCONTROL — Master-Satellite User Manual...
  • Page 61 COMMUNICATIONS This section provides basic configuration of the network parameters. DHCP server (router) means to enable or disable the IP address assignment. To be enabled when working with the integrated modems.
  • Page 62 Also, it is possible to customize the languages in the Charge Point. In the left column are all the available languages between the wide variety able to choose. On the other hand, in the right column are the ones chosen to be displayed in the Charge Point, organized as shown on screen. CIRCONTROL — Master-Satellite User Manual...
  • Page 63 In Screensaver tab it is possible to adjust timeout and brightness and enable or disable advertisements, what lets customize the Screensaver image by uploading a file. MASTER-SATELLITE In this section, it is possible to synchronize new satellite Charging Points, that are linked to the one used as a Master. To start the configuration, “Add charger” button should be clicked. Then, a new field appears and the Charging Point you want to configure as a satellite should be chosen among the whole options in the table.
  • Page 64 Depending on whether the model is DC or AC, it is shown in different way in the list above: - DC: Only chance to choose eVolve Rapid Satellite model. -AC: It consists in a 25-digit configuration code. There are 5 parameters that can change, depending on the model specifications. CIRCONTROL — Master-Satellite User Manual...
  • Page 65 Using the code in the image as an example, there are these exchangeable parameters. xxxxxx64x53xx2xxxxxx.rev0 xxxxxxAAxBCxxDDxxxxx.EEEE The multiple options for each parameters are described in the following table: Value Options Description AC Current (AA) AC input current. (32A + 32A) T2S32 version.
  • Page 66 Amount of money to be payed based on the energy delivered to the EV. Time fee Amount of money to be payed based on the duration of charge transaction. All these settings can be combined according to the customer preferences. CIRCONTROL — Master-Satellite User Manual...
  • Page 67 SECURITY Value Description ENABLE: Information transferred between Charge Point and laptop is strictly encrypted. Once enabled, it must be done some modifications Allow only in modem configuration, as explained below. secure connections DISABLED: not possible to assure secure connections between Charge Point and laptop. ENABLE: Introduce a user and a password in order to enter in the web setup.
  • Page 68 After you’re complete with the setting up as described in the section 5, you are ready to start logging into your router and start configuring it. 1. Go to Network > Firewall > Port Forwards Locate the port named “Enable_ HTTPS_WAN_PASSTHROUGH” and click button. Once in Edit screen, insert 192.168.1.50 in "Internal IP address" field and click Save & Apply button. CIRCONTROL — Master-Satellite User Manual...
  • Page 69 2. Go to Network > Firewall > Port Forwards At the bottom part of the screen, add a new port forward rule with the following parameters and once introduced click Add button: Name: Enable_HTTPS_WAN_OCPP External port: 8443 Internal IP Address: 192.168.1.50 Internal port: 8443 Check that the new line appears and switch to ON position to enable it.
  • Page 70 3. Go to Network > Firewall > Traffic Rules (only in Advanced mode) Locate the rule named “Enable_ HTTPS_WAN” and click button. Once in Edit screen, insert 192.168.1.50 in "Destination address" field and 443 in "Destination port" field; then click Save & Apply button. CIRCONTROL — Master-Satellite User Manual...
  • Page 71 4. Go to Network > Firewall > Traffic Rules (only in Advanced mode) At the bottom part of the screen, add a new traffic rule with the following parameters and once introduced click Add button: Name: OCPP Protocol: All Destination address: 192.168.1.50 Destination port: 8443 Check that the new line appears and switch to ON position to enable it. Then click button.

  • Page 72: F- Maintenance

    Maintenance DEVICES STATUS In this section, it can be consulted the status of the devices which are communicating via RS-485. UPDATES Through this tab, the Charge Point firmware and the application can be upgraded remotely. CIRCONTROL — Master-Satellite User Manual...
  • Page 73 To obtain the latest firmware version or need any special configuration update, please contact CIRCONTROL Support Department. DIAGNOSTICS Clicking over the ‘HW Testing’ tab, it appears to enable or disable Grid test option. That means HMI shows a test screen to check that touch function works properly.
  • Page 74 Charge Point or to the charging session. ADVANCED This section allows setting the time and region time for the Charge Point. Also, it offers the possibility to reset the Charge Point. CIRCONTROL — Master-Satellite User Manual...
  • Page 75 Next, we will explain the different sections of the 'Date and time' and 'Reset' Value Description Select the regional time for the Charge Point according Time Zone to the location. Time Current date and time of the Charge Point. Primary NTP Server Synchronize the time through internet automatically.

  • Page 76: 7- Ocpp 1.6J

    The goal of the Open Charge Point Protocol (OCPP) is to offer a uniform solution for the communication between Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the Circontrol Charge Points. CIRCONTROL — Master-Satellite User Manual...

  • Page 77: B- Before Starting

    Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Web-page > ‘Integrations’ tab > ‘General’ tab Once in ‘General’ section, Public IP source establishes where the Charge Point must obtain the public IP address in order to send it later to the back-end. Different values can be selected: Choose the option selected under ‘Public IP source’...

  • Page 78: C- Configuration

    Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’ according to your back-end policies as shown in the picture: NOTE: Charge Point is working as stand-alone if ‘none’ option is selected. All ID cards are authorized to start/stop a new charge transaction and no requests are sent to the back-end. CIRCONTROL — Master-Satellite User Manual...
  • Page 79 Value Description Charge Point ID Charge Point identifier. Basic Set an authentication if required, being the options 'Enabled' Authentication and 'Disabled'. Connection URL URL address of the central system. CS-Password Introduce CS-Password if required.
  • Page 80 Go to the Setup Web-page > Integrations > ‘Settings’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: CIRCONTROL — Master-Satellite User Manual...
  • Page 81 Value Description ENABLED: Synchronization of date and time. Use OCPP time DISABLED: Synchronization of date and time. synchronization *NOTE: Date and Time is sent from backend on each heartbeat response. PARTIAL: Sends partial energy consumption while vehicle is charging. Energy for metervalues TOTAL: sends the actual count of the total accumulated energy meter.
  • Page 82 Go to the Setup Web-page > Integrations > ‘SSL certificates’ tab For WSS connections is needed a Central System certificate. Upload it in this section. To obtain the latest certificates, please contact Central System you are working with. CIRCONTROL — Master-Satellite User Manual...
  • Page 83 Go to the Setup Web-page > Integrations > ‘Configuration keys’ tab...
  • Page 84 DISABLED: the Charge Point starts the Charge Transaction when the Central System sends a remote start. ENABLED: Charge Point looks for locally-authorized identifiers without waiting for the Central System authorization. Local pre- authorisation DISABLED: Charge Point requests authorization for presented identifiers to the Central System. ENABLED: during offline period unknown identifiers are allowed to start charging. Allow offline Tx for unknown ID DISABLED: during offline period unknown identifiers are NOT allowed to start charging. CIRCONTROL — Master-Satellite User Manual...
  • Page 85 Value Description ENABLED: during offline period locally-authorized identifiers Local are allowed to start charging. authorisation off-line DISABLED: during offline period locally-authorized identifiers are NOT allowed to start charging. ENABLED: stop existing Charge Transaction after response from Central System when user is blocked, expired or invalid. Stop transaction on invalid ID DISABLED: Charge Transaction does not stop even if backend rejects the user.
  • Page 86 Go to the Setup Web-page > Integrations > ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point. CIRCONTROL — Master-Satellite User Manual...
  • Page 87 Go to the Setup Web-page > Integrations > ‘Security’ tab In this chapter could be introduced a user and password in order to enter in this section. It is possible this option to be changed whenever is desired. NOTE: Old password is 1234 by default.

  • Page 88: 8- Monitoring

    The main way to connect is using the CirCarLife client software (Supplied by Circontrol Support staff) or you can download it from Circontrol Expert Area Webpage. NOTE: Java software needs to be installed on your computer in order to run the client software, please, download last version from: www.java.com...

  • Page 90: 9- Technical Data

    Locking System Master Network connection 10/100TX (TCP-IP) Interface protocol OCPP 1.6J / 2.0 HW Ready Display HMI 8” anti-vandal touchscreen RFID Reader ISO/IEC 14443 A/B MIFARE Classic/DESFire EV1 ISO 18092 ECMA-340 NFC 16.53MHz Satellite Master Communication Ethernet UTP CIRCONTROL — Master-Satellite User Manual...
  • Page 91 Optional devices Low Temperature Kit -30 °C to +45 ºC Safety Protection RCD Type A + 6mA DC RCD Type B (30mA) Surge Protection Four pole transient surge protector IEC 61643-1 (class II) Type 2 socket protection Shutter Wireless communication EMEA - 4G LTE/WiFi Hotspot/GPRS/GSM LATAM/APAC - 4G LTE/GPRS/GSM...

  • Page 92: B- Dc Charge

    Up to 95% Ambient temperature -40 ºC to +60 ºC storage Lights for status RGB colour indicator indication Enclosure door lock Security key lock Frontal door Enclosure access Charge cable length 5.5 meters Class 1 - EN50470-3 CIRCONTROL — Master-Satellite User Manual...
  • Page 93 Optional devices Wireless communication LATAM/APAC - 4G LTE/GPRS/GSM (only available in Master) Network hub RFID Extension Switch TCP ethernet 16 ports (only available in Master) RFID Extension Legic Advant / Legic Prime ISO 15693 / ISO 18092, Sony FeliCa Contactless payment* Integrated credit card payment terminal Safety Protections**...
  • Page 94 Need help? CIRCONTROL — Master-Satellite User Manual...
  • Page 95 In case of any query or need further information, please contact our Support Department support@circontrol.com www.circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 96 CIRCONTROL Master-Satellite USER MANUAL A comprehensive guide on how to use and configure your Master-Satellite solution. V5.0, May edition 2023 CIRCONTROL S.A. - ALL RIGHTS RESERVED R635...
