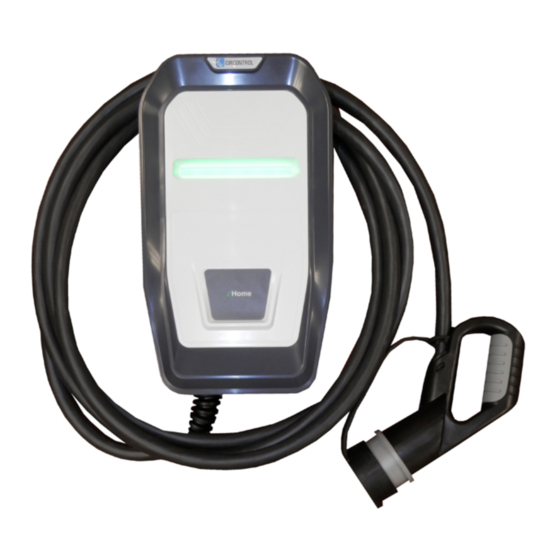

- Page 1 INSTRUCTION & INSTALLATION MANUAL MODELS: CCL-eHOME T1C16 CCL-eHOME T1C32 CCL-eHOME T2C16 CCL-eHOME T2C32 WALLBOX eHOME...
- Page 3 WALLBOX eHOME Instruction and Installation manual This document is copyrighted by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer.
-
Page 4: Table Of Contents
USING THE BOTTOM CABLE INSERTION OPENING ........25 WALL FIXATION PROCEDURE ................. 26 9.4.1 NEEDED MATERIAL ................... 26 9.4.2 CONSIDERATIONS .................... 26 9.4.3 INSTALLATION ....................27 ELECTRICAL INSTALLATION ..................29 9.5.1 POWER SUPPLY LINE PROTECTIONS ............29 © CIRCONTROL www.circontrol.com... - Page 5 CLOSING THE UNIT ....................31 CHECKING THE UNIT STATUS ..................33 CURRENT LIMIT SELECTOR .................... 33 REMOTE CONTROL INPUT ....................35 EHOME BEON (OPTIONAL) ....................36 13.1 CONNNECTIONS OF HOME B ON ................. 37 TECHNICAL DATA ......................38 NOTES ..........................39 © CIRCONTROL www.circontrol.com...
-
Page 6: Introduction
Do not use this unit for anything other than electric vehicle charging modes which are expected in IEC 61851. • Do not modify this unit. If modified, CIRCONTROL will reject all responsibility and the warranty will be void. • Comply strictly with electrical safety regulations. -
Page 7: Short Description
LED blinking accordingly to what the second digit indicates (i.e. for version 1.6, you will see one blink at the first LED and six at the last LED). © CIRCONTROL www.circontrol.com... -
Page 8: Operating Instructions
LED bar. When it is in green colour, it means that the unit is available and ready to start a recharge (A status)*. * According to IEC 61851 • To start a new recharge, plug the Wallbox eHOME cable into your car. © CIRCONTROL www.circontrol.com... - Page 9 When the EV is fully charged, the charging process ends up and the status LED bar stops flashing and keeps fix in blue (B status)*. • Then you can unplug the cable from the EV. * According to IEC 61851 © CIRCONTROL www.circontrol.com...
-
Page 10: Status Led Bar Error Sequences
In this last case, the unit starts charging when the operating temperature is reached again. In the following sections it will be explained how the Wallbox eHOME shows the above mentioned errors and the actions taken by the unit. © CIRCONTROL www.circontrol.com... -
Page 11: Ventilation Required Error (D Status)
When the unit is connected to the EV, a Pilot short-circuit to earth may occur. • Then, the status LED bar turns into red and flashes in a sequence of two blinks. * According to IEC 61851 © CIRCONTROL www.circontrol.com... -
Page 12: Proximity Error
When the unit is connected to the EV, the PWM signal, used to communicate the unit with the EV, can be negative. • Then, the status LED bar turns into red and flashes in a sequence of four blinks. © CIRCONTROL www.circontrol.com... -
Page 13: Maximum Output Current Minidips Error
In this situation, the status LED bar turns into orange blinking. • In the meantime, if the unit is supplied with heater (optional), it starts heating inside components until the operating temperature is reached. Then the unit starts charging again. © CIRCONTROL www.circontrol.com... -
Page 14: Installation Guidelines
ATTENTION! Damage to the property can occur if appropiate precautions are not taken. This section provides the commissioning information for Wallbox eHOME series, where is described the electrical components inside the charging station and a step-by-step installation procedure. Standards & directives •... -
Page 15: Electrical Wiring Considerations
If the installed charging point power supply is less than the maximum output current of the charge point, an adjustment to a lower nominal current must be performed using the on- board rotate dipswitch. NOTE: Please refer to the CURRENT LIMIT SELECTOR section in order to know how to change this value. © CIRCONTROL www.circontrol.com... -
Page 16: Space Requirements
When installing the unit it is necessary to respect some minimum distances for maintenance and safety reasons. The recommended value for the A height, it is minimum 600 mm, and maximum 1200 mm Please comply accordingly to your country specifications. Units specified in mm © CIRCONTROL www.circontrol.com... -
Page 17: Product Dimensions
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 6 PRODUCT DIMENSIONS Units specified in mm © CIRCONTROL www.circontrol.com... -
Page 18: Front Product View
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 7 FRONT PRODUCT VIEW 1. Circontrol Logo 2. Front cover 3. Status RGB LED bar 4. OEM Logo 5. Frame © CIRCONTROL www.circontrol.com... -
Page 19: Inside Product View
8 INSIDE PRODUCT VIEW 1. EV tethered cable 2. Output contactor 3. Main board 4. Current limit selector 5. Rear cover 6. RGB LEDs 7. Input terminals 8. Heater* 9. Power supply line * Optional depending on the model © CIRCONTROL www.circontrol.com... -
Page 20: Installation
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 9 INSTALLATION 9.1 SUPPLIED MATERIAL MATERIAL Wallbox eHOME charging point User manual Cable gland M25x1.5 © CIRCONTROL www.circontrol.com... -
Page 21: Opening The Unit
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 9.2 OPENING THE UNIT STEP ACTION Remove the screw at the bottom of the box. © CIRCONTROL www.circontrol.com... - Page 22 Using a screw driver, put it into the indicated marks, at the bottom of the box, and start removing the frame doing click at the bottom. CLICK! Beware of not breaking the plastic of the frame with the screw driver. © CIRCONTROL www.circontrol.com...
- Page 23 Grabbing the frame with the hand by the lower part, pull and take it off totally, from the bottom to the top. CLICK! CLICK! CLICK! CLICK! CLICK! CLICK! To make it easier help yourself with the screw driver while pulling the frame off. © CIRCONTROL www.circontrol.com...
- Page 24 Remove the six screws of the front part by using a screw driver and take out the front part of the enclosure. Be sure that the unit is not energised before going forward with the opening procedure. © CIRCONTROL www.circontrol.com...
- Page 25 INSTRUCTION & INSTALLATION MANUAL STEP ACTION When the front part of the enclosure is off, you can access to the inside components of the unit. Only the authorised and qualified staff can manipulate electrical electronic components of the unit. © CIRCONTROL www.circontrol.com...
-
Page 26: Power Supply Line Cable Insertion
In all cases it is required to install a cable gland to ensure properly installation and preserve the IP of the unit. Cable insertion opening on the rear of the housing (breakable) Cable insertion opening at the bottom of the housing © CIRCONTROL www.circontrol.com... -
Page 27: Using The Rear Cable Insertion Opening
Install always double membrane seals to ensure IP protection of the charging point. Be careful of not damaging any of the inside components when breaking out the rear cable insertion opening. © CIRCONTROL www.circontrol.com... -
Page 28: Using The Bottom Cable Insertion Opening
Do not make any other holes on the enclosure. Use only the named cable insertion opening to install the required electric pipes. Install always either cable glands or double membrane seals to ensure IP protection of the charging point. © CIRCONTROL www.circontrol.com... -
Page 29: Wall Fixation Procedure
The unit is designed to drain the water properly from the upper side down. • The charging point must be installed vertically (use a level tool to ensure its installation at an angle of 90º) • Please ensure that the installation surface is flat. © CIRCONTROL www.circontrol.com... -
Page 30: Installation
2. Place the enclosure on a flat surface. 3. Use 3x45mm screws to fix the unit to the wall. 4. Check whether the box has any inclination using a level tool. © CIRCONTROL www.circontrol.com... - Page 31 Use only the unit holes indicated in the above picture to fix the unit on the wall. Do not make any other holes on the housing; otherwise the water can enter the unit when it rains. All screws and wall plugs needed to attach the unit to the wall are not included. © CIRCONTROL www.circontrol.com...
-
Page 32: Electrical Installation
For protecting the power line, it is necessary to install a Miniature Circuit Breaker (MCB) and a Residual Current Device (RCD) externally. The charging point is set to 16A / 32A, depending on the model, from factory default settings. © CIRCONTROL www.circontrol.com... -
Page 33: Power Supply Line Connection
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 9.5.2 POWER SUPPLY LINE CONNECTION Perform the 230 VAC Single-phase connections as shown in the picture below. Do not forget to connect the ground cable (PE) to its corresponding terminal. © CIRCONTROL www.circontrol.com... -
Page 34: Closing The Unit
INSTRUCTION & INSTALLATION MANUAL 9.6 CLOSING THE UNIT STEP ACTION Place back the 6 screws from the front cover in order to close the unit. Beware of the cables between the cover and the base while closing the unit. © CIRCONTROL www.circontrol.com... - Page 35 Put the frame back, from the top to the bottom of the box, ensuring it does click at the six points shown in the picture. CLICK! CLICK! CLICK! CLICK! CLICK! CLICK! Be sure that the frame is properly adjusted to the front cover in order to preserve the IP of the unit. © CIRCONTROL www.circontrol.com...
-
Page 36: Checking The Unit Status
Wallbox eHOME we are going to install. Be sure that the position of the current limit selector is setup according to the output current of your unit. © CIRCONTROL www.circontrol.com... - Page 37 INSTRUCTION & INSTALLATION MANUAL On the following table is shown the different values available for this current limit selector: POSITION LIMIT CURRENT NOT USED 10 A 13 A 16 A 20 A 32 A NOT USED NOT USED NOT USED © CIRCONTROL www.circontrol.com...
-
Page 38: Remote Control Input
This remote control input is enabled by default, by means of a jumper (as shown in the picture below). You must remove the jumper to use the input 4-5. Be sure that the jumper is connected by default, otherwise the charging process cannot start. © CIRCONTROL www.circontrol.com... -
Page 39: Ehome Beon (Optional)
• Remove from service any item that has a fault that could be dangerous for users (broken plugs, caps that don’t close...). • Use only Circontrol supplied spare parts. • LED BAR STATUS CONSIDERATION • All the LEDs of the status LED... -
Page 40: Connnections Of Ehome Beon
4. Current limit selector 5. Rear cover 6. RGB LEDs 7. Input terminals 8. Heater* 9. Power supply line 10. eHOME BeON 11. eHOME BeON Negative / Pin 2S1 Positive / Pin 2S2 * Optional depending on the model © CIRCONTROL www.circontrol.com... -
Page 41: Technical Data
16 / 0.05 A, 20 / 0.05 A, 25 / 0.05 A, 30 / 0.05 A, 35 / 0.05 A, Relation 40 / 0.05 A, 45 / 0.05 A, 50 / 0.05 A, 63 / 0.05 A Accuracy Class I Maximum cable length 200 m Cable cross-section 1 mm² * Depending on the model © CIRCONTROL www.circontrol.com... -
Page 42: Notes
Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL 15 NOTES © CIRCONTROL www.circontrol.com... - Page 43 Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL © CIRCONTROL www.circontrol.com...
