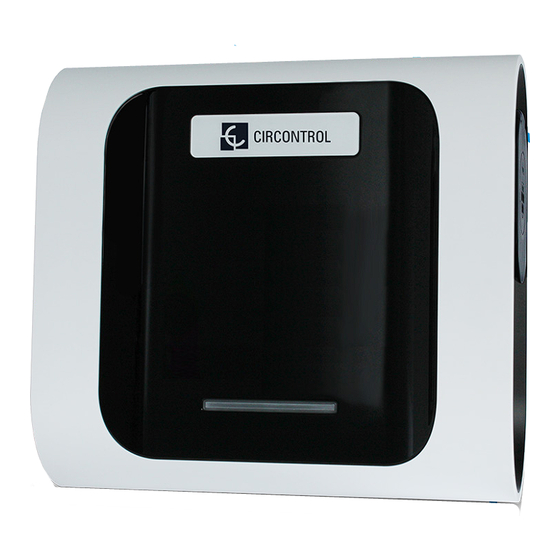

Circontrol Wallbox eNext T Installation Manual

Hide thumbs Also See for Wallbox eNext T:

Installation manual (32 pages)

Table Of Contents

Quick Links

Wallbox

eNext

Series

Installation Manual

Table of Contents

Need help?

Do you have a question about the Wallbox eNext T and is the answer not in the manual?

Questions and answers

Summary of Contents for Circontrol Wallbox eNext T

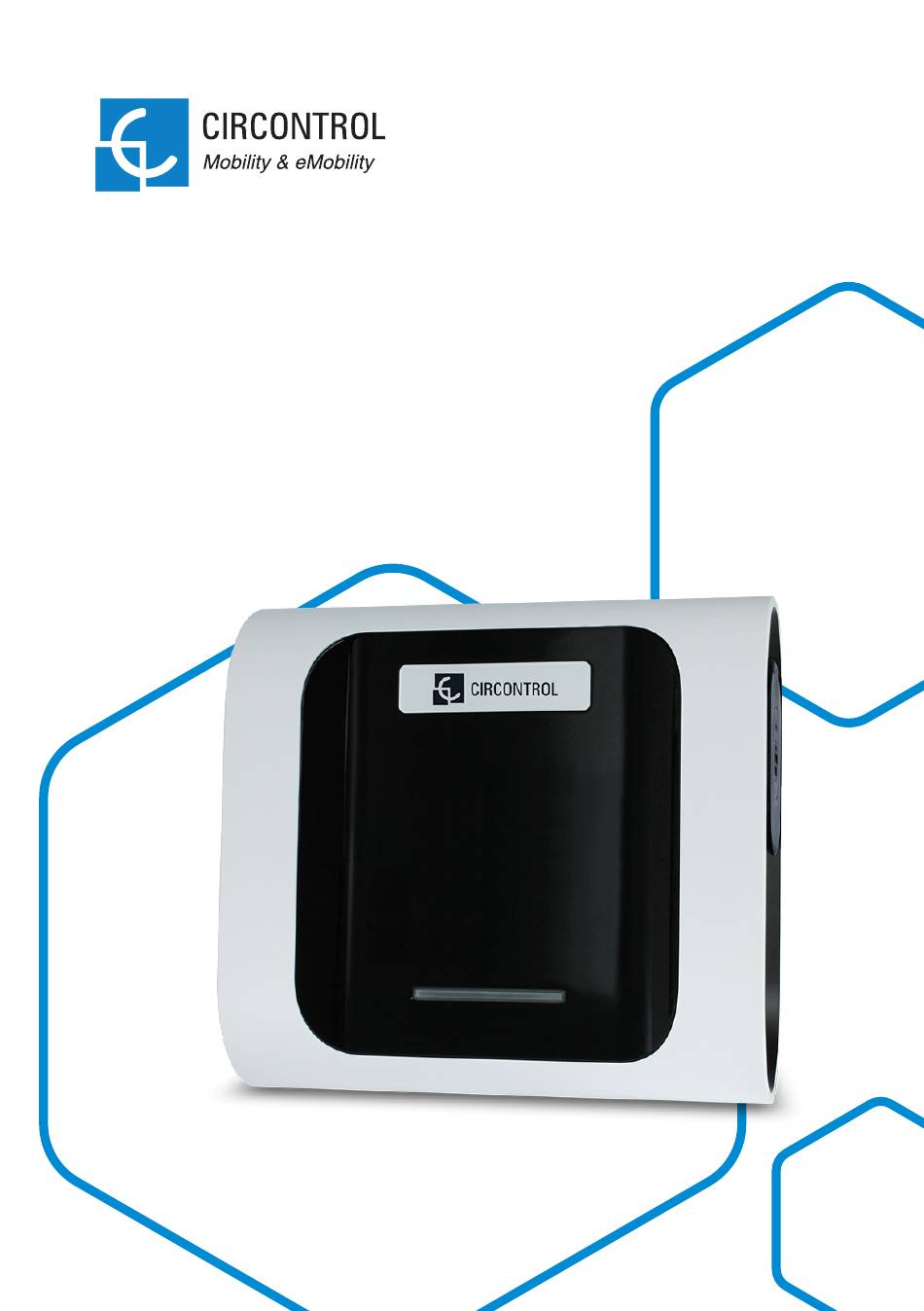

Page 1 Wallbox eNext Series Installation Manual...
Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2018 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
Page 3: Table Of Contents
Here’s your guide to install eNext. 1 — So, hello! 5 — Installation 2 — Before the 6 — Technical Data installation 3 — Overview 7 — Need Help? 4 — Dimensions...
Page 4 WallBox eNext Series Installation Manual...
Page 5: So, Hello
So, hello! This manual provides commissioning information about Wallbox eNext, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK Take precautions to make the electrical connection inside the...
Page 6 (broken plugs, caps that IEC 61851. don’t close...). • Do not modify this unit. If modified, • Use only Circontrol supplied spare CIRCONTROL will reject parts. responsibility and the warranty will be void.
Page 7: Before The Installation
Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point.
Page 8 WallBox eNext Series Installation Manual What’ s included: Installation Charge Point Manual...
Page 9: Overview
Overview 1 — LED beacon 3 — Plugs* 5 — Closing box holes 2 — Cable glands 4 — Wall support holes (*) Plugs may vary depending on the model...
Page 10 WallBox eNext Series Installation Manual Measures in mm...
Page 11: Dimensions
Dimensions...
Page 12 WallBox eNext Series Installation Manual Material: • Screws, sealing washers and plastic anchors are not included. • The installation kit has been tested on a concrete wall. For the unit to be securely fixed in such conditions, it is recommended to use: 3 x Inox A2 wall screws: DIN 7982 Ø4,8x38 or DIN 7981 Ø4,8x38 3 x plastic anchors: 6x40 or 8x40 3 x sealing washer: DIN 7711 Ø14...
Page 13: Installation
Installation Space requirements When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the recommended minimum distances: 1100 Measures in mm Front view...
Page 14 WallBox eNext Series Installation Manual Opening Open the Wallbox using allen wrench. 2.5mm Allen wrench...
Page 15 Positioning Make the holes. Tap drill M 6/8 1100 Measures in mm Front view...
Page 16 WallBox eNext Series Installation Manual Positioning Place de unit on the previously leaky points and fix it by the screws...
Page 17 Wiring Use provided cable glands in order to mantain the IP protection Comprension glands M32...
Page 18 WallBox eNext Series Installation Manual SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT Connect to the 230VAC. • • Connect to the 400VAC. • If the Power Supply is Single- Phase, connect L1 and N. Terminal block maximum cross-section: 25mm Do not forget to connect the ground cable to the ground terminal Type of cable allowed by the terminal block: Aluminium &...
Page 19 Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — C A R E F U L W I T H T H E W I R E S Before closing the unit, keep in mind all cables should remain inside.
Page 20 WallBox eNext Series Installation Manual GENERAL DATA Light beacon Frontal LED bar Wireless communication Bluetooth v4.2 + BLE Connectors (optional) Shutter Type 2 Socket Cable Type 1 Cable Type 2 MECHANICAL DATA Enclosure rating IP54 / IK10 Enclosure material ABS / PC Enclosure closure system Anti-vandalism Allen screws Net weight...
Page 21: Technical Data
Technical Data ELECTRICAL DATA Power supply 1P+N+PE / 3P+N+PE Input voltage 230VAC+/- 10% / 400VAC+/-10% 50Hz / 60Hz Frequency MCB (curve C) - includes shunt trip Leakage detector (MCB/RCBO with shunt trip is Protections (optional) required to open the circuit) RCBO: RCD Type A (S) + MCB (S) - includes shunt trip Overvoltage protection Transient surge protector...
Page 22 WallBox eNext Series Installation Manual...
Page 23: Need Help
Need help? In case of any query or need further information, please contact our Post-Sales Department ps-support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
