Installation
4.4.2

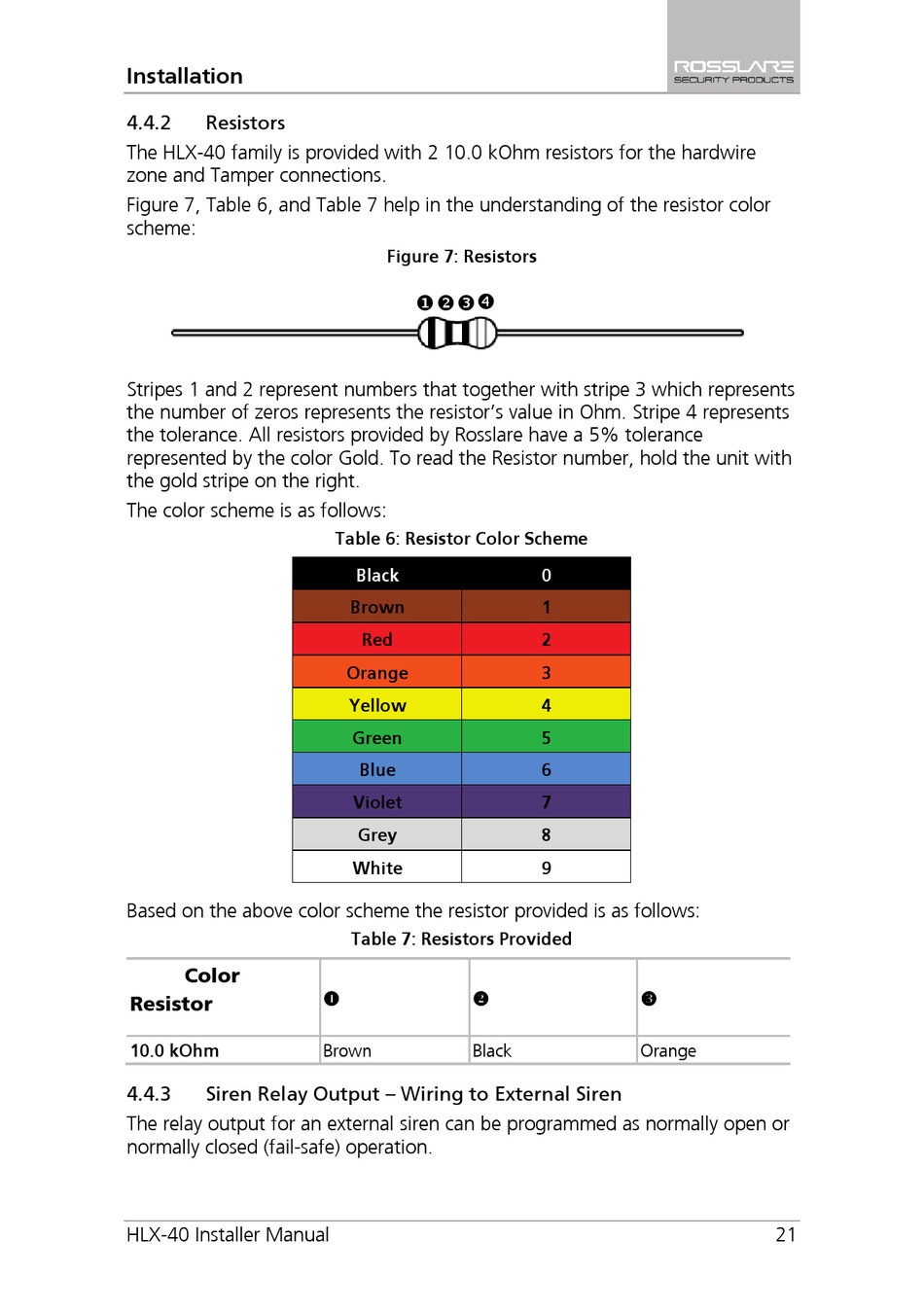

Resistors

The HLX-40 family is provided with 2 10.0 kOhm resistors for the hardwire
zone and Tamper connections.
Figure 7, Table 6, and Table 7 help in the understanding of the resistor color
scheme:
Stripes 1 and 2 represent numbers that together with stripe 3 which represents
the number of zeros represents the resistor's value in Ohm. Stripe 4 represents
the tolerance. All resistors provided by Rosslare have a 5% tolerance
represented by the color Gold. To read the Resistor number, hold the unit with
the gold stripe on the right.
The color scheme is as follows:
Based on the above color scheme the resistor provided is as follows:
Color
Resistor
10.0 kOhm
4.4.3
Siren Relay Output – Wiring to External Siren
The relay output for an external siren can be programmed as normally open or
normally closed (fail-safe) operation.
HLX-40 Installer Manual

Figure 7: Resistors

  

Table 6: Resistor Color Scheme

Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Grey
White

Table 7: Resistors Provided

Brown
Black
0
1
2
3
4
5
6
7
8
9
Orange
21
