Installation

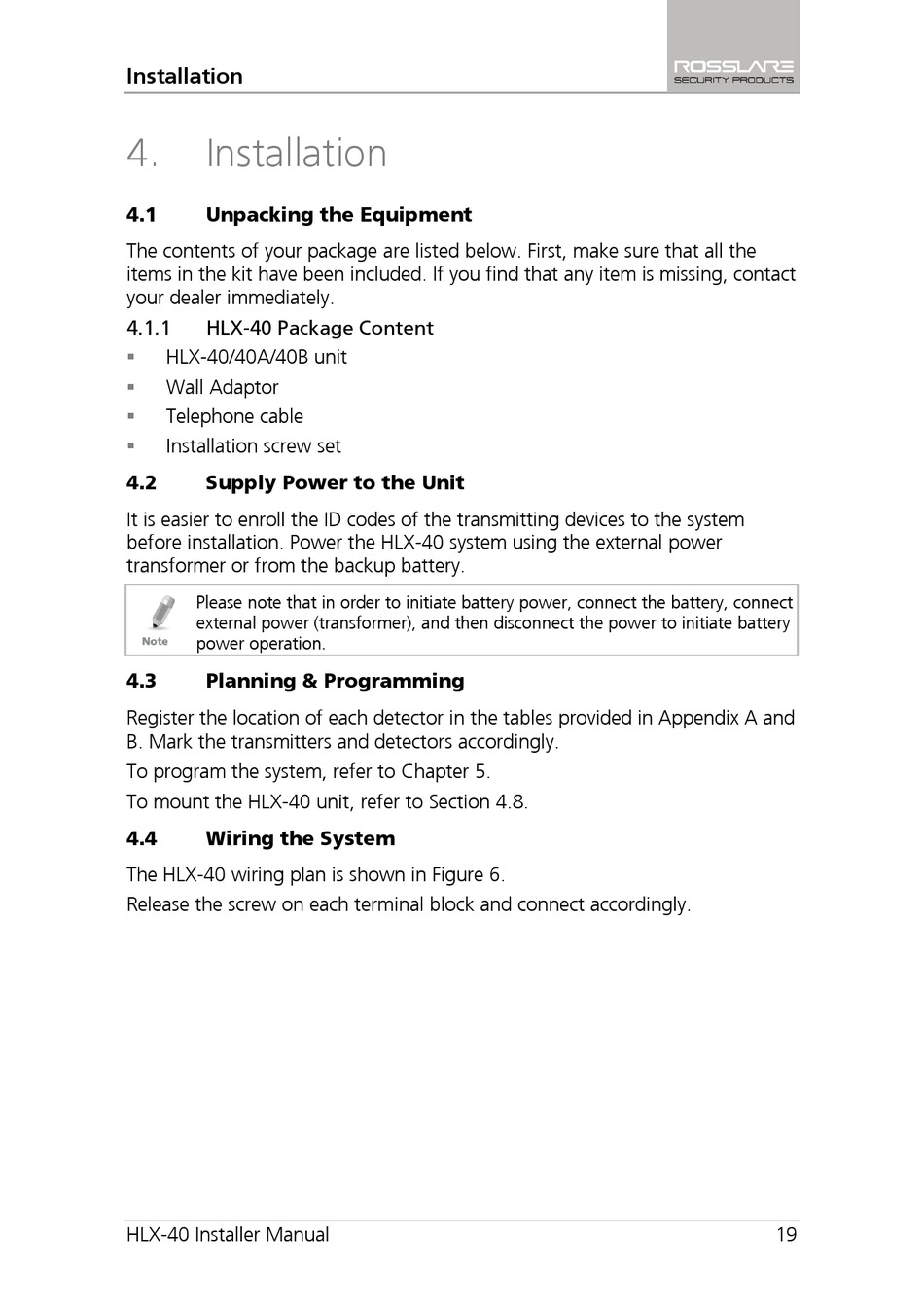

4. Installation
4.1

Unpacking the Equipment

The contents of your package are listed below. First, make sure that all the
items in the kit have been included. If you find that any item is missing, contact
your dealer immediately.
4.1.1

HLX-40 Package Content

 HLX-40/40A/40B unit
 Wall Adaptor
 Telephone cable
 Installation screw set
4.2

Supply Power to the Unit

It is easier to enroll the ID codes of the transmitting devices to the system
before installation. Power the HLX-40 system using the external power
transformer or from the backup battery.
Please note that in order to initiate battery power, connect the battery, connect
external power (transformer), and then disconnect the power to initiate battery
power operation.
4.3 Planning & Programming
Register the location of each detector in the tables provided in Appendix A and
B. Mark the transmitters and detectors accordingly.
To program the system, refer to Chapter 5.
To mount the HLX-40 unit, refer to Section 4.8.
4.4

Wiring the System

The HLX-40 wiring plan is shown in Figure 6.
Release the screw on each terminal block and connect accordingly.
HLX-40 Installer Manual 19
