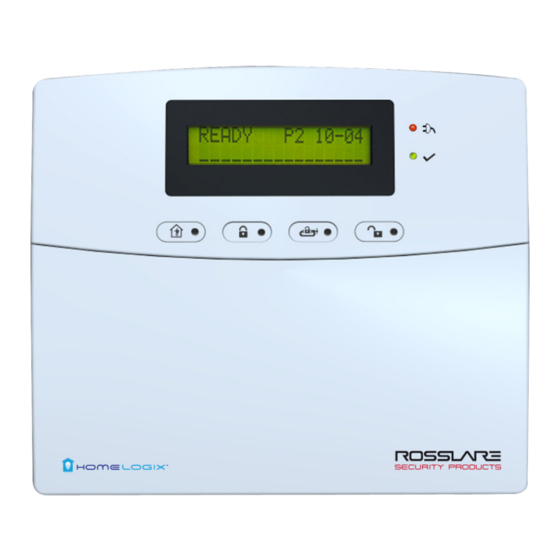

Rosslare HLX-24TH Series User Manual

Advanced wireless security panels
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HLX-24TH Family
Advanced Wireless Security Panels
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLX-24TH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare HLX-24TH Series

Summary of Contents for Rosslare HLX-24TH Series

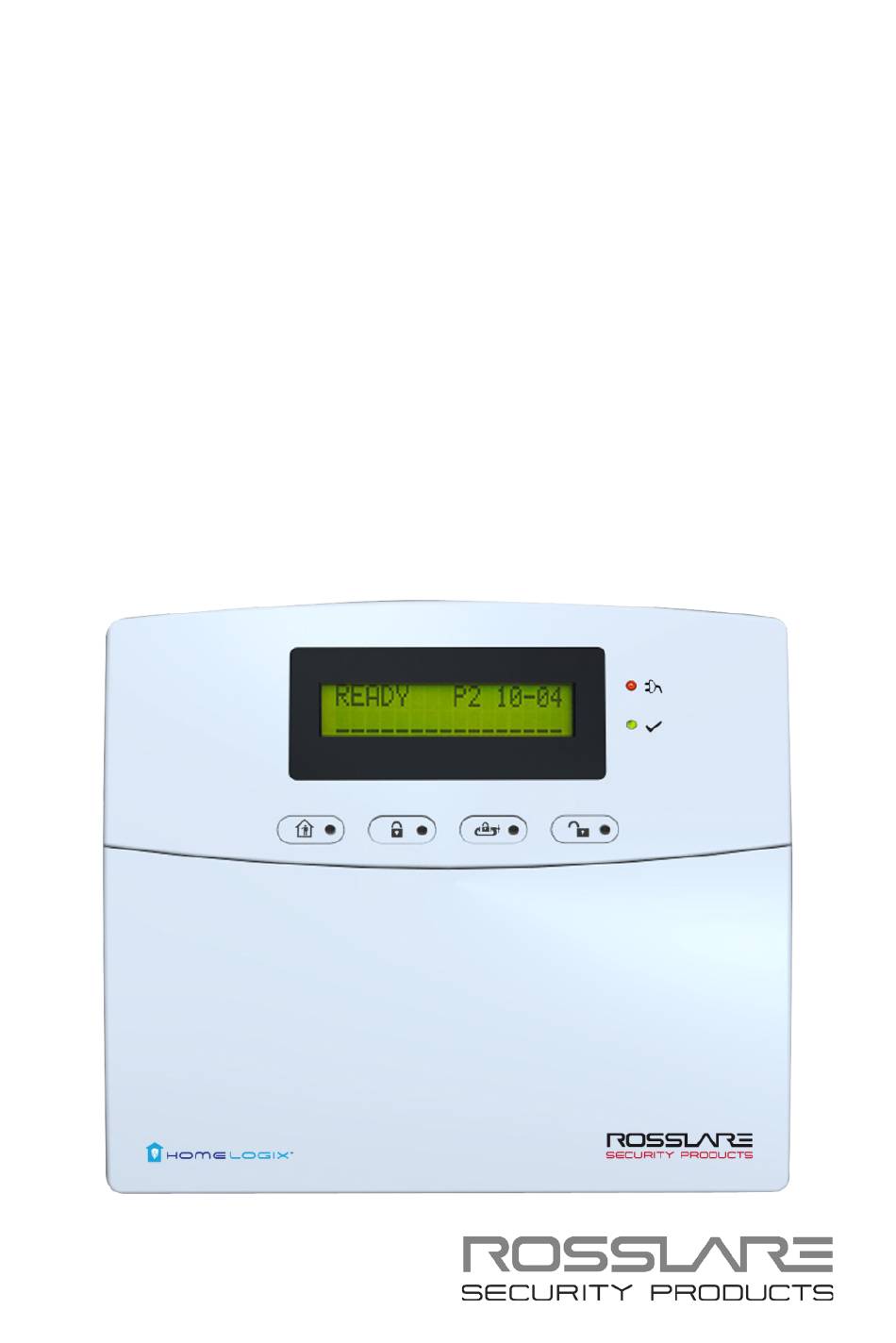

  • Page 1 HLX-24TH Family Advanced Wireless Security Panels User Manual...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ............... 8 2. Technical Specifications ........... 9 3. Operating the HLX-24 ............. 10 Quick Reference ................10 About Everyday Operation ..............10 Arming Options ................10 3.3.1 Arm Away ....................10 3.3.2 Arm Home ....................
  • Page 4 Table of Contents 6. Telephony Voice Response Menu ........23 General .................... 23 Arming Submenu ................23 Automation Submenu ..............24 Status Report ..................24 7. Reading the Event Log ........... 25 8. User Menu Options ............26 Accessing the User Menu ..............26 Changing the Master Code ...............
  • Page 5 List of Figures List of Figures Figure 1: HLX-24 Panel ................. 15 Figure 2: The Keypad..................18 Figure 3: Replacing the Backup Batteries............31 HLX-24 User Manual...
  • Page 6 List of Tables List of Tables Table 1: Quick Reference to Keypad Buttons ..........10 Table 2: HLX-24 Wireless Panel ..............16 Table 3: Display Options ................17 Table 4: Keypad Functions ................18 Table 5: Sound Indicators ................19 Table 6: Power LED Indicator ................
  • Page 7  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...

  • Page 8: Introduction

    Introduction Introduction The HLX-24 family of panels by Rosslare is the perfect wireless security system for intrusion protection of the home, or small office providing security monitoring and telephony IVR Voice messaging. Users receive the latest RF technology in a wide selection of advanced wireless sensors and remotes, and benefit from smooth and easy operation of a large number of security and communication options.

  • Page 9: Technical Specifications

    Technical Specifications Technical Specifications Electrical Characteristics External Power Supply 220 VAC/50 Hz, 110 VAC/60 Hz Operating Voltage Range 15 VDC, 800 mA Input Current Standby: 150 mA Max: 300 mA Backup Batteries 4 AA (1800 mAh rechargeable batteries are included) Display Two Line, 16 characters, white backlit LCD PGM Open Collector Output...

  • Page 10: Operating The Hlx-24

    Operating the HLX-24 Operating the HLX-24 This chapter describes the day to day operation of the system, as well as provides a quick reference for the Arming/Disarming buttons in the system. Quick Reference Use the following buttons on the keypad for quick arming the system: Table 1: Quick Reference to Keypad Buttons Arms all sensors and detectors for use when there is no one at home/office.

  • Page 11: Arm Home

    Operating the HLX-24 3.3.2 Arm Home Home arming is an arming of all perimeter sensors and detectors as defined by the installer. This is intended for when home or office is occupied. To arm the sy stem using HOME: Verify that the system is ready for arming. Press the HOME arming key.

  • Page 12: Exit Restart

    Operating the HLX-24 If Silent Exit is active, the Exit Time is doubled for that exit period only, but does not exceed 255 seconds. During Home arming, the system ignores all interior zones as well as the predefined delay zones. 3.3.7 Exit Restart When this feature is enabled, an Exit Restart delay occurs on the second zone...

  • Page 13: System Alarm

    Operating the HLX-24 System Alarm Alarms trigger for panic, fire, 24-hour audible and silent conditions for 24 hours a day, 7 days a week. When premises are in Armed Away, all delayed, interior, and perimeter zones are protected. When premises are in Armed Home (Stay), all delayed and perimeter zones are protected (interior zones are ignored).

  • Page 14: Fire Alarm

    Operating the HLX-24 3.5.5 Fire Alarm Fire alarm verification is an available option on fire zones. When used the system begins and Alarm Transmission Sequence once the conditions for fire alarm verification are met. The Fire Verify setting double checks the state of the fire detectors. When there is a fire sensor alarm signal, a siren is heard immediately.

  • Page 15: System Overview

    System Overview System Overview The main components of the HLX-24 wireless panel are:  HLX-24 Wireless Panel  The LCD Display  The Keypad  Sound Indicators  LED Indicators HLX-24 Wireless Panel Figure 1 presents the components of the wireless panel. Figure 1: HLX-24 Panel Display Power Indicator...

  • Page 16: The Lcd Display

    System Overview Table 2 describes the components in the panel: Table 2: HLX-24 Wireless Panel Menu Use to navigate between menus Power indicator Power LED Red on: system is ON Red flashing: AC power failure Status indicators on the Status LED ‘Arm Home’, Disarm and Green LED when the system is disarmed using the Arm Away buttons...

  • Page 17: Table 3: Display Options

    System Overview Table 3: Display Options System Status Ready Indicates that all zones are in Normal state and the system is ready for arming. Not ready Indicates that at least one zone is open and the system is not ready for arming.

  • Page 18: The Keypad

    System Overview The Keypad The keypad is used to program the wireless panel and to arm and disarm the sensors. Figure 2: The Keypad Table 4 describes the keypad functions: Table 4: Keypad Functions Icon Function Panic When pressed for 3 seconds a standard panic alarm sounds Keys 0 –...

  • Page 19: Sound Indicators

    System Overview Sound Indicators Table 5 describes the sounds are emitted by the system and keypad: Table 5: Sound Indicators Sound Sounded When Single beep A key is pressed Long Beep Illegal key entry Three short beeps An entry is successfully accepted. Four short beeps a If enabled, on trouble condition.

  • Page 20: Table 8: Keypad Function Indicators

    System Overview Table 8: Keypad Function Indicators Panel Panic Arm Away Arm Home Disarm Status Disarm Arm Home Arm Away Arming Home FLASHES every 1 second (until last 10 seconds flashes every 0.5 seconds) Arming Away FLASHES every 1 second (until last 10 seconds flashes every...

  • Page 21: User Menu Structure

    User Menu Structure User Menu Structure The User menu enables configuring the basic user settings, such as setting the date and time and changing user codes. You can define one Master user and up to twenty additional users, each with an individual code. Settings marked with an “M”...
  • Page 22 User Menu Structure Select Zone Bypass Enables you to arm the system by bypassing/un-bypassing selected zones (see Section 8.8). This option is enabled if manual bypass has been enabled by the installer. Note: Zone bypass can be triggered only if the zone was enrolled.

  • Page 23: Telephony Voice Response Menu

    Telephony Voice Response Menu Telephony Voice Response Menu General IVR (Interactive Voice Response) features include telephony voice assistance, where the panel uses voice through the telephone to prompt the user. Either the system or a remote private telephone can initiate an IVR session. IVR session Initiated by a Remote Telephone User: The remote telephone ...

  • Page 24: Automation Submenu

    Telephony Voice Response Menu Please note that when arming, the status change is only announced after the exit delay timeout. Disconnect the phone to terminate the session or press 0 to return to the previous menu. Automation Submenu After entering the automation submenu, you hear the following: Press 0 to return to the previous menu ...

  • Page 25: Reading The Event Log

    Reading the Event Log Reading the Event Log The HLX-24 event log stores up to 250 events. When the log is full, the new incoming event replaces the oldest event. Events are displayed in a chronological order and include the date and time of their occurrence.

  • Page 26: User Menu Options

    User Menu Options User Menu Options Accessing the User Menu To access the User menu: Press the Menu button to reach the User menu and press Enter. You are asked to enter the Master code. Enter your 4-digit Master code. Entering the correct code brings you to the user menu submenus.

  • Page 27: Authorization Codes

    User Menu Options Authorization Codes You can set the code that is used to configure the system’s settings with the remote programming software HR-P02. To set the authorization codes: Using the Menu button, select Authorization Code and press Enter. Using the numeric keypad, type a 4-digit code and press Enter to save. Silent Exit You can choose between disabling and enabling the progress annunciation during exit delay.

  • Page 28: Setting Zone Bypass

    User Menu Options Specify the format in which the date is displayed: DD-MM-YY or MM-DD- Press Enter to confirm your selection. The date and time format is set. Setting Zone Bypass You can define certain zones to be bypassed when arming the system to deal with different situations, such as when the sensors battery is low and is sending an event, or when arming the system while someone is still on premises in certain areas.

  • Page 29: Enrolling A Remote Control

    User Menu Options Arm the system using one of the arming options. To arm the system again using the same bypass settings, press 6 followed by one of the arming buttons. Enrolling a Remote Control You can enroll up to eight remote controls, and specify functions for each button on the remote control.

  • Page 30: Setting Phone Numbers

    User Menu Options 8.11 Setting Phone Numbers You can specify up to three private telephone numbers that are called by the wireless panel when an event occurs. To define phone numbers: Using the Menu button, select Private Numbers and press Enter. Using the Menu button or numeric keypad, choose between private numbers 1, 2 or 3 and press Enter.

  • Page 31: Maintenance

    Maintenance Maintenance This chapter is for the installer. Dismounting the Control Panel To release the panel from the mounted back-plate: Unlock the locking hooks on the top of the back plate by lifting them up and out of the recesses on top of the panel. Pull the top of the panel away from the wall to disconnect the connector from the back-plate.

  • Page 32: Declaration Of Conformity

     Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Rosslare Ltd.) could void the user’s authority to operate the equipment. HLX-24 User Manual...

  • Page 33: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. HLX-24 User Manual...
  • Page 34 Fax: +86 755 8610 6101 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. Rosh HaAyin, Israel Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com...
