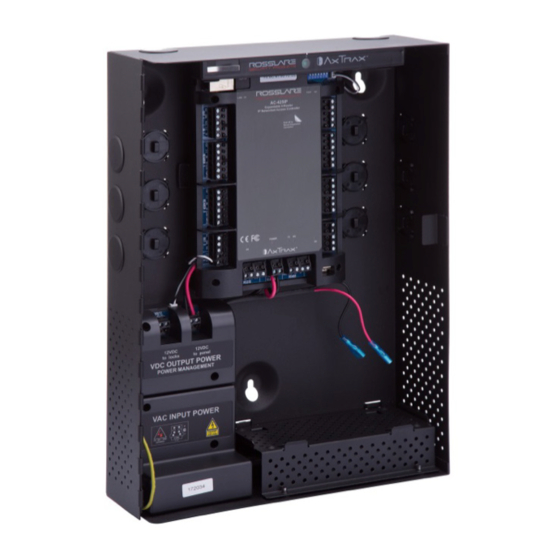

AC-425x-B Series
Expandable 4-Reader Networked
Access Control Panel
Hardware Installation and User Guide
Models:
AC-425-B
AC-425IP-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-425 B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AC-425 B Series

Summary of Contents for Rosslare AC-425 B Series

  • Page 1 AC-425x-B Series Expandable 4-Reader Networked Access Control Panel Hardware Installation and User Guide Models: AC-425-B AC-425IP-B...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ............... 8 AxTraxNG ................... 9 1.1.1 Client-Server Structure ................. 9 1.1.2 Configurable Links ..................10 1.1.3 Fingerprint Recognition ................10 2. Technical Specifications ..........11 AC-425x-DIN ..................11 AC-425x-B Installed in ME-1015 ............12 3.
  • Page 4 Table of Contents 4.2.3 General Purpose Inputs ................24 Outputs .................... 25 4.3.1 Door Lock ....................25 Card Readers and Keypads ..............26 5. AC-425x-B Hardware Settings ........28 DIP Switch Configuration ..............28 AC-425x-B Panel Baud Rate .............. 29 AC-425x-B Panel Type ..............
  • Page 5 List of Figures List of Figures Figure 1: AC-425x-B Panel Layout ..............9 Figure 2: Sample AC-425x-B Configuration ..........13 Figure 3: Inputs Wiring – Non-supervised Inputs ........... 14 Figure 4: Door Lock – Failed Close ..............15 Figure 5: Door Lock – Failed Open ..............16 Figure 6: Wiring Between PM-10 and AC-425x-B .........
  • Page 6 List of Tables List of Tables Table 1: DIP Switches and Their Functions ............. 28 Table 2: Switch Baud Rates ................29 Table 3: Possible Hardware Settings .............. 29 Table 4: Available Panel Addresses ............... 32 Table 5: RS-232 Connection ................. 34 AC-425x-B Series Hardware Installation and User Manual...
  • Page 7  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...

  • Page 8: Introduction

    Driven by Rosslare’s powerful, flexible and easy-to-use AxTraxNG™ software, the system provides an ideal, modular and expandable solution for commercial and institutional needs. It provides seamless integration with Rosslare's range of RFID proximity, PIN, Proximity & PIN, smartcard and biometric readers with Rosslare’s selection of RFID credentials.

  • Page 9: Axtraxng

    Introduction Figure 1 shows the layout of the AC-425x-B panel. Figure 1: AC-425x-B Panel Layout AxTraxNG The AxTraxNG software system is custom designed to set up, manage, and supervise all aspects of an access panel network. It offers the following capabilities: Parameter Value Users capacity...

  • Page 10: Configurable Links

    1.1.3 Fingerprint Recognition AxTraxNG can share user details with Rosslare's BioTrax software system. The BioTrax system can then download all selected user information to an AYC- W6500 fingerprint reader.

  • Page 11: Technical Specifications

    Technical Specifications Technical Specifications AC-425x-DIN Electrical Characteristics Operating Voltage 12 VDC, 1.5 A from a regulated power supply Maximum Input Current AC-425 Standby: 80 mA Maximum: 325 mA AC-425IP Standby: 120 mA Maximum: 370 mA General Inputs • 4 supervised high impedance inputs •...

  • Page 12: Ac-425X-B Installed In Me-1015

    Technical Specifications Environmental Characteristics Operating Temperature Range 0°C to 49°C (32°F to 120°F) Operating Humidity Range 0 to 85% (non-condensing) Dimensions Height x Width x Depth 193 x 136.5 x 39 mm (7.6 x 5.4 x 1.5 in.) Weight 0.36 kg (12.7 oz) AC-425x-B Installed in ME-1015 Electrical Characteristics –...

  • Page 13: Ac-425X-B Panel Setup

    AC-425x-B Panel Setup AC-425x-B Panel Setup Each AC-425x-B panel controls 2 or 4 doors (up to 8 doors with MD-D04B). The panels connect together in a network and are controlled by a central server computer, running the AxTraxNG software system. Figure 2 shows an example setup for a network of AC-425x-B access control panels.

  • Page 14: Inputs Wiring - Non-Supervised Inputs

    AC-425x-B Panel Setup Inputs Wiring – Non-Supervised Inputs Figure 3 presents a detailed view of the non-supervised inputs and their connection options. Figure 3: Inputs Wiring – Non-supervised Inputs AC-425x-B Series Hardware Installation and User Manual...

  • Page 15: Inputs Wiring - Supervised Inputs

    AC-425x-B Panel Setup Inputs Wiring – Supervised Inputs When wiring the AC-425x-B for supervised inputs, resistors should be placed on the input switch and not on the terminal block. For more details, refer to Chapter 4. Outputs Wiring Figure 4 and Figure 5 illustrate wiring for two main types of 12 VDC electrical release mechanisms.

  • Page 16: Power Supply

    AC-425x-B Panel Setup Figure 5: Door Lock – Failed Open Power Supply Figure 6 illustrates wiring between the PM-10 power management board and the AC-425x-B. Make sure the connection polarity is correct, (+) to (+) and (-) to (-). Connect the power to the input power terminals of the control panel. It is recommended to add a 12 VDC lead acid backup battery (requires the ME-1015 Power Management Enclosure) to have uninterrupted operation in case main power supply fails.

  • Page 17: Figure 6: Wiring Between Pm-10 And Ac-425X-B

    AC-425x-B Panel Setup Figure 6: Wiring Between PM-10 and AC-425x-B AC-425x-B Series Hardware Installation and User Manual...

  • Page 18: Ac-425X-B Wiring Communications

    AC-425x-B Panel Setup AC-425x-B Wiring Communications Figure 7 presents a detailed view of the access control panel with all it wiring communications. Figure 7: AC-425x-B Wiring Communications Readers Proximity and keypad readers are supplied with a limited cable. The color of the cable cover represents the cable’s function according to Wiegand standards (Figure 8).

  • Page 19: Md-Io84B

    AC-425x-B Panel Setup Figure 8: Reader Wiring MD-IO84B The MD-IO84B is an optional I/O expansion board that adds 4 relay outputs and 8 supervised inputs to the Access Control Panel. Attach the MD-IO84B to the AC-425x-B's expansion slot, as marked in red in Figure 9). Figure 9: Connector Location for MD-IO84B or MD-D04B Expansions MD-IO84B Installation and User Guide For more information, see the...

  • Page 20: Input And Output Connections

    Input and Output Connections Input and Output Connections This chapter describes the AC-425x-B access control panel's input and output connections. Input Types There are four input types:  Normally Closed (N.C.) Normally Open (N.O.)   Single EOL resistor  Double EOL resistor Inputs IN1, IN2, IN3, and IN4 may be configured individually as either supervised or non-supervised inputs.

  • Page 21: Normally Closed Input Connection

    Input and Output Connections 4.1.2 Normally Closed Input Connection A Normally Closed Input has two states:  Switch Closed – Normal State: Loop resistance = 0 (short circuit)  Switch Open – Abnormal State: Loop resistance = Infinite (open circuit) Figure 11: Normally Closed Input Connection 4.1.3 Normally Open Supervised Single EOL Resistor Input...

  • Page 22: Normally Open Supervised Double Eol Resistor Input Connection

    Input and Output Connections 4.1.4 Normally Open Supervised Double EOL Resistor Input Connection Connect a 2.2 kΩ resistor in series to the input switch contacts. Connect an 8.2 kΩ resistor parallel to the input switch contacts. A Normally Open Supervised Input has 3 states: ...

  • Page 23: Normally Closed Supervised Double Eol Resistor Input Connection

    Input and Output Connections 4.1.6 Normally Closed Supervised Double EOL Resistor Input Connection Connect a 2.2 kΩ resistor in series to the input switch contacts. Connect an 8.2 kΩ resistor parallel to the input switch contacts. A Normally Closed Supervised Input has 3 states: ...

  • Page 24: Door Monitor Input

    Input and Output Connections Door 3 – IN3 Door 4 – IN4 Door 5 – IN5 Door 6 – IN6 Door 7 – IN7 Door 8 – IN8 4.2.2 Door Monitor Input The Door Monitor input typically connects to a Normally Closed door sensing micro-switch for door status monitoring.

  • Page 25: Outputs

    Input and Output Connections Outputs Rosslare Security recommends the use of suppression diodes for all outputs that activate an inductive load. 4.3.1 Door Lock There are two types of door locking devices:  Fail open (fail secure)  Fail close (fail safe)

  • Page 26: Card Readers And Keypads

    Input and Output Connections Card Readers and Keypads Each access control panel can be connected to a maximum of four readers or 8 readers when using MD-D04B. There are three available types of reader:  Card readers  Keypads Dual keypad card readers ...
  • Page 27 Input and Output Connections Use the AxTraxNG software to set the readers for IN or OUT use and to set the data transmission format for each reader. The reader’s tamper output connects to the access control panel's Reader- Tamper input. If the reader is interfered with, an alarm can be generated. The panel's Reader G.LED output activates the reader’s green LED input when operating in "Card and PIN"...

  • Page 28: Ac-425X-B Hardware Settings

    AC-425x-B Hardware Settings AC-425x-B Hardware Settings DIP Switch Configuration The DIP switches in the access control panel determine the baud rates for serial communication, control panel type, and the device address, as summarized in Table 1. Table 1: DIP Switches and Their Functions Function Switch The panel's communication baud rate...

  • Page 29: Ac-425X-B Panel Baud Rate

    AC-425x-B Hardware Settings AC-425x-B Panel Baud Rate The AC-425x-B panel serial port baud rate, set in DIP switches 1 and 2, defines the communication speed for connecting with a PC in a network connection. The default baud rate is set to 9600 bits per second. Table 2 lists the status of Switches 1 and 2 and the baud rate: Table 2: Switch Baud Rates Switch 1 Switch 2 Baud Rate...
  • Page 30 AC-425x-B Hardware Settings Connectors Description Setup Inputs Door 1: Request to exit (IN 1) Door monitor input (IN 3) Door 2: Request to exit (IN 2) Door monitor input (IN 4) Readers Reader1 – Door1 Door Entry or Exit Reader2 – Door2 Door Exit or Entry Reader3 –...

  • Page 31: Ac-425X-B Panel Address

    AC-425x-B Hardware Settings Connectors Description Setup Reader5 (Door3 IN/OUT) Reader6 (Door4 OUT/IN) Reader7 (Door3 IN/OUT) Reader8 (Door4 OUT/IN) One reader per door with 8 readers (MD-D04B) Outputs Door1 Lock output (OUT 1) Door2 Lock output (OUT 2) Door3 Lock output (OUT 3) Door4 Lock output (OUT 4)

  • Page 32: Table 4: Available Panel Addresses

    AC-425x-B Hardware Settings Table 4: Available Panel Addresses Address Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 The AC-425x-B panel address is defined in the AxTraxNG software. The DIP switch and the software must be set to the same address. AC-425x-B Series Hardware Installation and User Manual...

  • Page 33: Communications

    Communications Communications Communication lines are used to upload and download information between the AC-425x-B panel and the AxTraxNG server. When the access control panel and the computer are communicating, the system’s two LEDs flash accordingly.  The RX LED flashes when the controller receives data ...

  • Page 34: Rs-485 Connection To The Computer

    Communications The distance between the computer and the access control panel must be no more than 150 feet (50 meters). If the baud rate is increased to 57600 or beyond, the distance must be no more than 30 feet (10 meters). Table 5: RS-232 Connection Access Control Panel DB9 Connector...

  • Page 35: Daisy Chaining

    Communications 6.1.3 Daisy Chaining You can connect up to 32 panels to a single serial line using a daisy-chain formation, which is done by drop-down RS-485 wiring (Figure 19). Figure 19: Daisy Chaining This can increase the maximum distance from the PC to the last panel in the chain to 4,000 ft (1,219.2 m).

  • Page 36: Tcp/Ip Network Connection

    IP port can support up to 32 AC-425IP-B panels (Figure 20). Figure 20: MD-N32 Configuration Connecting a Single Panel To connect to a TCP/IP network using AC-425 non-IP models, add Rosslare's MD-N32 TCP/IP to RS-232 gateway converter. MD-N32 User...

  • Page 37: Lan And Wan Requirements

    When using an MD-N32, for a single panel, either an RS-232 cable or Rosslare's MD-14U RS-485 to RS-232 converter can be used. To connect an MD-N32 to more than one panel (up to 32 panels), Rosslare's MD-14U RS-485 to RS-232 converter must be used. Connect the MD-14U between the RS-485 access control panel network and the MD-N32 converter (Figure 22).

  • Page 38: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity FCC ID = GCD-AC425x  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation.

  • Page 39: Radio Equipment Directive (Red)

    Radio Equipment Directive (RED) Radio Equipment Directive (RED) Under our sole responsibility that the following labeled AC-425-Bx, AC-425-DIN, AC-4215IP-Bx, and AC-425IP-DIN are tested to conform to the EU Radio Equipment Directive – RED 2014/53/EU – in electrical and electronic equipment. AC-425x-B Series Hardware Installation and User Manual...

  • Page 40: Rohs Directive

    RoHS Directive RoHS Directive Under our sole responsibility that the following labeled AC-425-Bx, AC-4215-DIN, AC-425IP-Bx, and AC-425IP-DIN are tested to conform to the Restriction of Hazardous Substances (RoHS) directive – 2011/65/EU – in electrical and electronic equipment AC-425x-B Series Hardware Installation and User Manual...

  • Page 41: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AC-425x-B Series Hardware Installation and User Manual...
  • Page 42 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. 22 Ha'Melacha St., P.O.B. 11407 Rosh HaAyin, Israel Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com...
