HLX-40/40A/40B
Advanced Wireless Security Panel
User Manual
December 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLX-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare HLX-40

Summary of Contents for Rosslare HLX-40

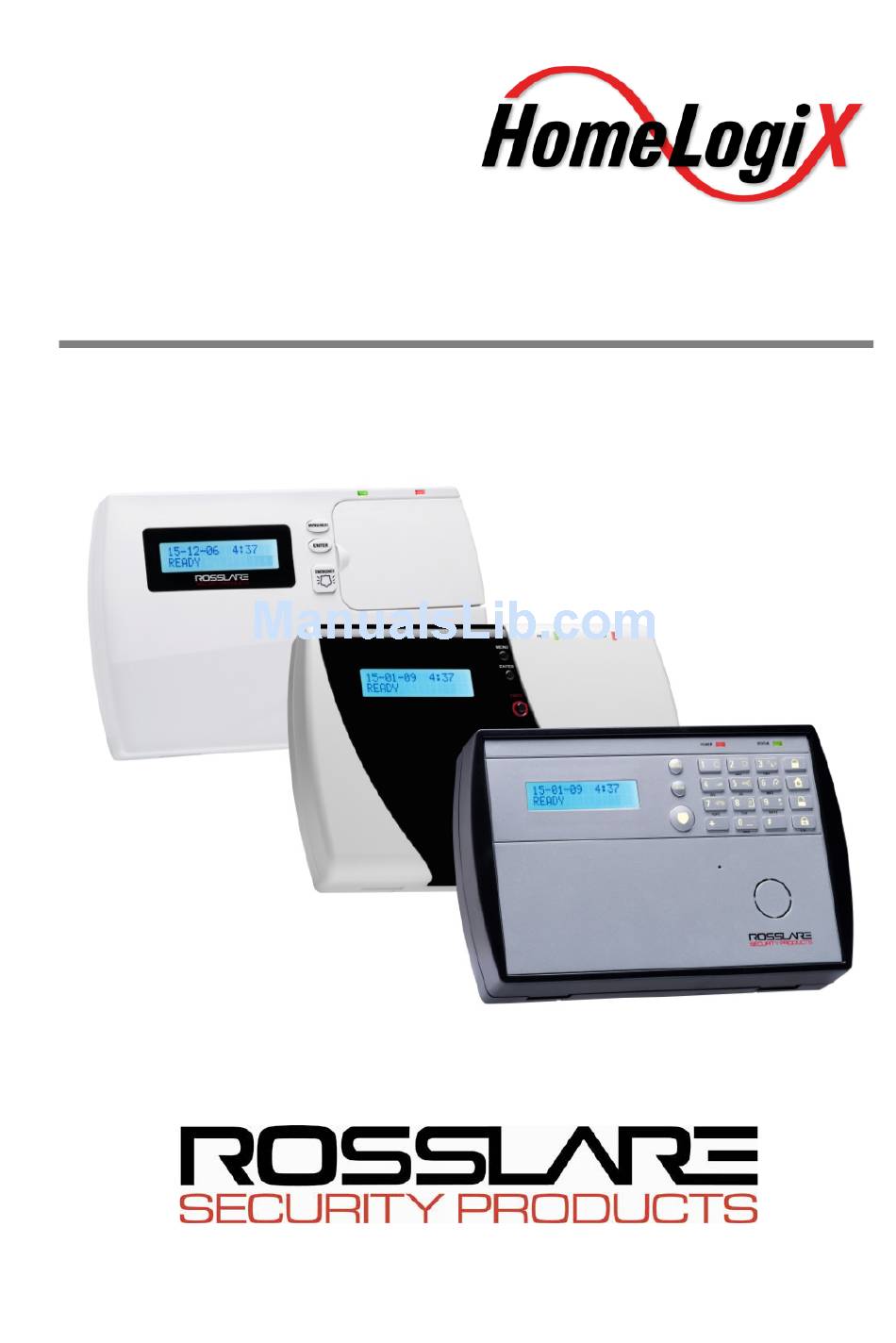

  • Page 1 HLX-40/40A/40B Advanced Wireless Security Panel User Manual December 2011...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ..............5 2. Operating the HLX-40 ............. 8 2.1 Quick Reference ................8 2.2 About Everyday Operation ............8 2.3 Arming Options ................8 2.3.1. Arm Away ................ 9 2.3.2. Arm Home ................ 9 2.3.3.
  • Page 4 10. Maintenance ..............34 10.1 Dismounting the Control Panel ..........34 10.2 Replacing the Backup Battery ............ 34 Appendix A. Limited Warranty ......... 35 Appendix B. Declaration of Conformity ......37 Appendix C. Technical Support ........38 Page iv HomeLogiX HLX-40 User Guide...

  • Page 5: Introduction

    Introduction 1. Introduction The HomeLogiX HLX-40 family of panels by Rosslare is the perfect wireless security system for intrusion protection of the home, or small office providing security monitoring and IVR Voice messaging. Users receive the latest RF technology in a wide selection of...
  • Page 6 Introduction Figure 1: HLX-40 Figure 2: HLX-40A Page 6 HomeLogiX HLX-40 User Guide...
  • Page 7 Introduction Figure 3: HLX-40B HomeLogiX HLX-40 User Guide Page 7...

  • Page 8: Operating The Hlx-40

    For more on the keys and their function, see The Keypad Page 2.2 About Everyday Operation The HLX-40 system allows you to ensure the security of your home, both while you are home and while you are away. The system allows you to control attached sub-systems and appliances such as garage doors, lights, heating, and air conditioner via an expandable PGM output.

  • Page 9: Arm Away

    3. Enter your user code. 2.3.3. Disarmed When disarmed, the HLX-40 system enters Alarm mode for each 24-hour zone. Alarms trigger only for panic, emergency, fire, 24-hour audible, and silent conditions. In this state, the system continuously checks zone status and holds the Ready status parameter.

  • Page 10: Quick Arming

    2.4 Entry/Exit Delay Options Entry and Exit actions delay the alarm mode and allow the system to ignore zone violations, as described below. Page 10 HomeLogiX HLX-40 User Guide...

  • Page 11: Entry Delay

    The system may be disarmed during the Exit Delay period. During Exit Delay, the system emits warning beeps at two rates: slower rate at first followed by a faster rate of beeping during the last 10 seconds of the delay period. HomeLogiX HLX-40 User Guide Page 11...

  • Page 12: Technical Specifications

    Operating Temp. Range 32ºF – 140ºF (0ºC – 60ºC) without battery 32ºF – 113ºF (0ºC – 45ºC) with battery Storage Temp. Range -13ºF – 158ºF (-25ºC – 70ºC) Operating Humidity 0– 85% at 30ºC non-condensing Page 12 HomeLogiX HLX-40 User Guide...
  • Page 13 548g 1.15 lbs. 1.17 lbs. 1.21 lbs. In addition, the HLX-40 system complies with the following standards: • CE, FCC, EN 50131-3, EN 50131-6, EN 50130-5, EN 50130-4, EN 60950-1, EN 50131-5-3, Security Grade 2, Environmental II HomeLogiX HLX-40 User Guide...

  • Page 14: System Overview

    4. System Overview The main components of the HomeLogiX HLX-40 wireless panel are: • HomeLogiX HLX-40 Wireless Panel, Page 14 • The LCD Display, Page 15 • The Keypad, Page 17 • Sound Indicators, Page 19 • LED Indicators, Page 20 4.1 HomeLogiX...

  • Page 15: The Lcd Display

    The system status is displayed on the left of the bottom line. The events are displayed on the right of the system status. If there is more than one event, the event display toggles every HomeLogiX HLX-40 User Guide Page 15...
  • Page 16 In addition the following Zone Troubles may appear in the TRBL message: • Tamper • Low battery • Short Wire • Supervision (failure) Indicates an alarm in memory Indicates that a personal message is waiting Page 16 HomeLogiX HLX-40 User Guide...

  • Page 17: The Keypad

    You must enter a user or master code. Arm all perimeter sensors and detectors as defined by the Installer. Use this function when HOME the home/office is occupied. You must enter a user or master code. HomeLogiX HLX-40 User Guide Page 17...
  • Page 18 The PGM status is indicated on the right. Press 1 to deactivate PGM 1 and/or 2 to deactivate PGM 2. Chime ON/OFF Normal Manually toggle the chime on and off (if mode only enabled by the installer) The default is off. Page 18 HomeLogiX HLX-40 User Guide...

  • Page 19: Sound Indicators

    The following sounds are emitted by the system and keypad: Sound Sounded When Single beep A key is pressed Long Beep Illegal key entry Three short beeps An entry is successfully accepted. Four short beeps a If enabled, on trouble condition. minute HomeLogiX HLX-40 User Guide Page 19...

  • Page 20: Led Indicators

    Green On when the system is ON. FLASHING when there is an AC power failure. Status Red OFF when system is disarmed ON when system is armed. FLASHING during entry/exit delay, according to the beep rate specified. Page 20 HomeLogiX HLX-40 User Guide...

  • Page 21: User Menu Structure

    Authorization system’s settings with the remote programming Code software HR-P02. The default code is 1234. (M) Set Date & Set the Time & Date, as specified in Setting Date Time and Time, Page 29. HomeLogiX HLX-40 User Guide Page 21...
  • Page 22 Specify up to three private telephone numbers Numbers (more on Page 33). (M) PC Mode Enable or disable PC connection and activity when GSM expansion is installed. Otherwise PC mode is enabled Automatically (more on Page 33). Page 22 HomeLogiX HLX-40 User Guide...

  • Page 23: Interactive Voice Response Menu

    Press 0 at any time to jump one level up in the menus. The following options are available: • Press 1 to enter the arming options submenu • Press 2 to enter the automation options submenu HomeLogiX HLX-40 User Guide Page 23...

  • Page 24: Arming Submenu

    • Press 2 to turn the PGM off. Note that if no acknowledgment is heard after your selection, disconnect the phone to terminate the session or press 0 to return to the previous menu. Page 24 HomeLogiX HLX-40 User Guide...

  • Page 25: Voice Operation Submenu

    After pressing 2 for message recording, you have 15 seconds to record your message. • Press # to stop the recording • Press 0 to return to the previous menu 6.5 Status Report Enter the Status submenu to hear the system status. HomeLogiX HLX-40 User Guide Page 25...

  • Page 26: Reading The Event Log

    Reading the Event Log 7. Reading the Event Log The HLX-40 event log stores up to 250 events. When the log is full, the new incoming event replaces the oldest event. Events are displayed in a chronological order and include the date and time of their occurrence.

  • Page 27: Sms Commands

    SMS Commands 8. SMS Commands The HLX-40 family supports remotely controlling the system using a cellular phone by accepting SMS commands from the user’s cell phone to the GSM’s SIM card provided that the MD- CC101 GSM Stick expansion is installed and functioning properly.

  • Page 28: User Menu Options

    To change the master code: 1. Using the Menu button, select Edit Master Code and press Enter. 2. Using the numeric keypad, enter the new master code and press Enter to save. The master code is changed. Page 28 HomeLogiX HLX-40 User Guide...

  • Page 29: Defining User Codes

    To set the date and time: 1. Using the Menu button, select Date and Time and press Enter. 2. Two options appear: a. Set Time – Enter the time using the alphanumeric keypad and press Enter. HomeLogiX HLX-40 User Guide Page 29...

  • Page 30: Defining Date And Time Format

    Note: This feature is available to both User and Master level users, and is only active if it is set by the Installer. Page 30 HomeLogiX HLX-40 User Guide...

  • Page 31: Enabling Zone Bypass

    6 followed by one of the arming buttons. 9.8 Enrolling a Remote Control You can enroll up to eight remote controls, and specify functions for each button on the remote control. You can also delete enrolled remote controls. HomeLogiX HLX-40 User Guide Page 31...

  • Page 32: Deleting A Remote Control

    Menu button or by entering the remote number using the numeric keypad. You are asked to confirm deletion. 3. Press Enter to delete the remote control or the ESC button to go back. Page 32 HomeLogiX HLX-40 User Guide...

  • Page 33: Setting Phone Numbers

    After two minutes of inactivity, the system automatically deactivates. To set the PC mode: 1. Using the Menu button, select PC Mode and press Enter. 2. Using the Menu button, select Activate or Deactivate and press Enter to confirm. HomeLogiX HLX-40 User Guide Page 33...

  • Page 34: Maintenance

    3. Remove the panel from the lower posts of the back-plate. 10.2 Replacing the Backup Battery To replace the backup battery: 1. Dismount the panel. 2. Remove the battery cover. 3. Replace the battery. 4. Replace the cover. Figure 6: Replacing the Backup Battery Page 34 HomeLogiX HLX-40 User Guide...

  • Page 35: Appendix A. Limited Warranty

    2 years (24 months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty.

  • Page 36: Limited Warranty

    IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED IN NO EVENT SHALL ROSSLARE BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR ANY OTHER INCIDENTAL CONSEQUENTIAL OR SPECIAL DAMAGES...

  • Page 37: Appendix B. Declaration Of Conformity

    • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Rosslare Ltd.) could void the user’s authority to operate the equipment. HomeLogiX HLX-40 User Guide Page 37...

  • Page 38: Appendix C. Technical Support

    831 Xinzha Road, Jing’an, District Europe Shanghai, China Tel: +86 21 32313299 Global Technical Support & support.cn@rosslaresecurity.com Training Center HaMelecha 22 Rosh HaAyin, Israel 48091 Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com Website: www.rosslaresecurity.com Page 38 HomeLogiX HLX-40 User Guide...
  • Page 40 www.rosslaresecurity.com...
