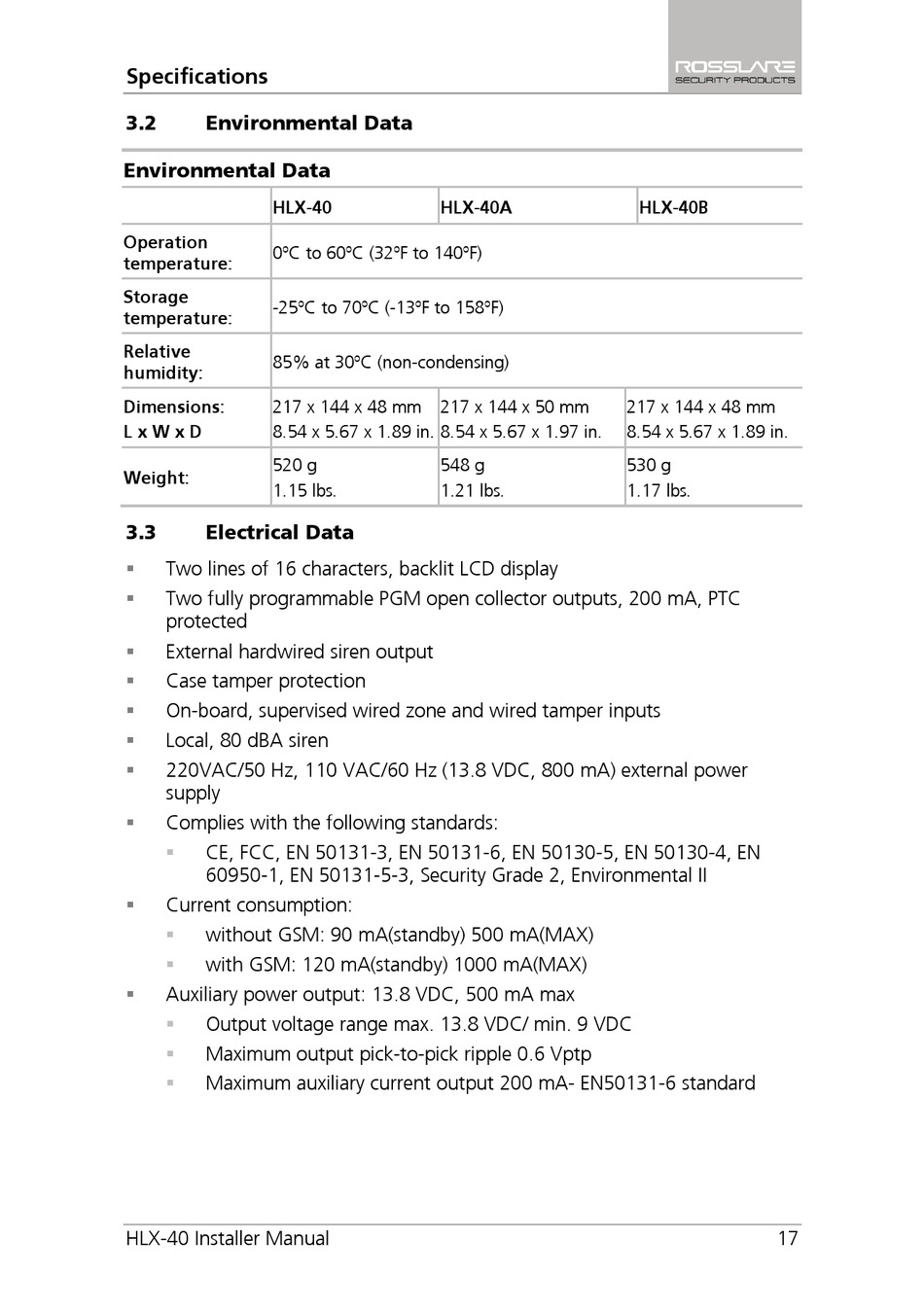

Specifications
3.2

Environmental Data

Environmental Data
HLX-40
Operation
0ºC to 60ºC (32ºF to 140ºF)
temperature:
Storage
-25ºC to 70ºC (-13ºF to 158ºF)
temperature:
Relative
85% at 30ºC (non-condensing)
humidity:
Dimensions: 217 x 144 x 48 mm
L x W x D 8.54 x 5.67 x 1.89 in.
520 g
Weight:
1.15 lbs.
3.3

Electrical Data

 Two lines of 16 characters, backlit LCD display
 Two fully programmable PGM open collector outputs, 200 mA, PTC
protected
External hardwired siren output

 Case tamper protection
 On-board, supervised wired zone and wired tamper inputs
 Local, 80 dBA siren
 220VAC/50 Hz, 110 VAC/60 Hz (13.8 VDC, 800 mA) external power
supply
 Complies with the following standards:
CE, FCC, EN 50131-3, EN 50131-6, EN 50130-5, EN 50130-4, EN

60950-1, EN 50131-5-3, Security Grade 2, Environmental II
Current consumption:

 without GSM: 90 mA(standby) 500 mA(MAX)
with GSM: 120 mA(standby) 1000 mA(MAX)

 Auxiliary power output: 13.8 VDC, 500 mA max
Output voltage range max. 13.8 VDC/ min. 9 VDC

 Maximum output pick-to-pick ripple 0.6 Vptp
Maximum auxiliary current output 200 mA- EN50131-6 standard

HLX-40 Installer Manual
HLX-40A
217 x 144 x 50 mm
8.54 x 5.67 x 1.97 in.
548 g
1.21 lbs.
HLX-40B
217 x 144 x 48 mm
8.54 x 5.67 x 1.89 in.
530 g
1.17 lbs.
