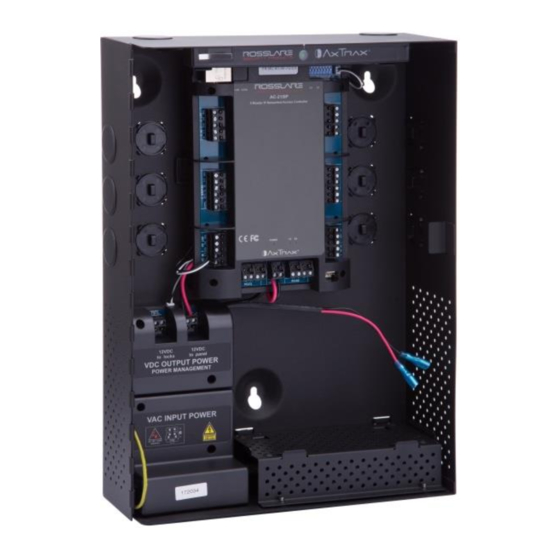

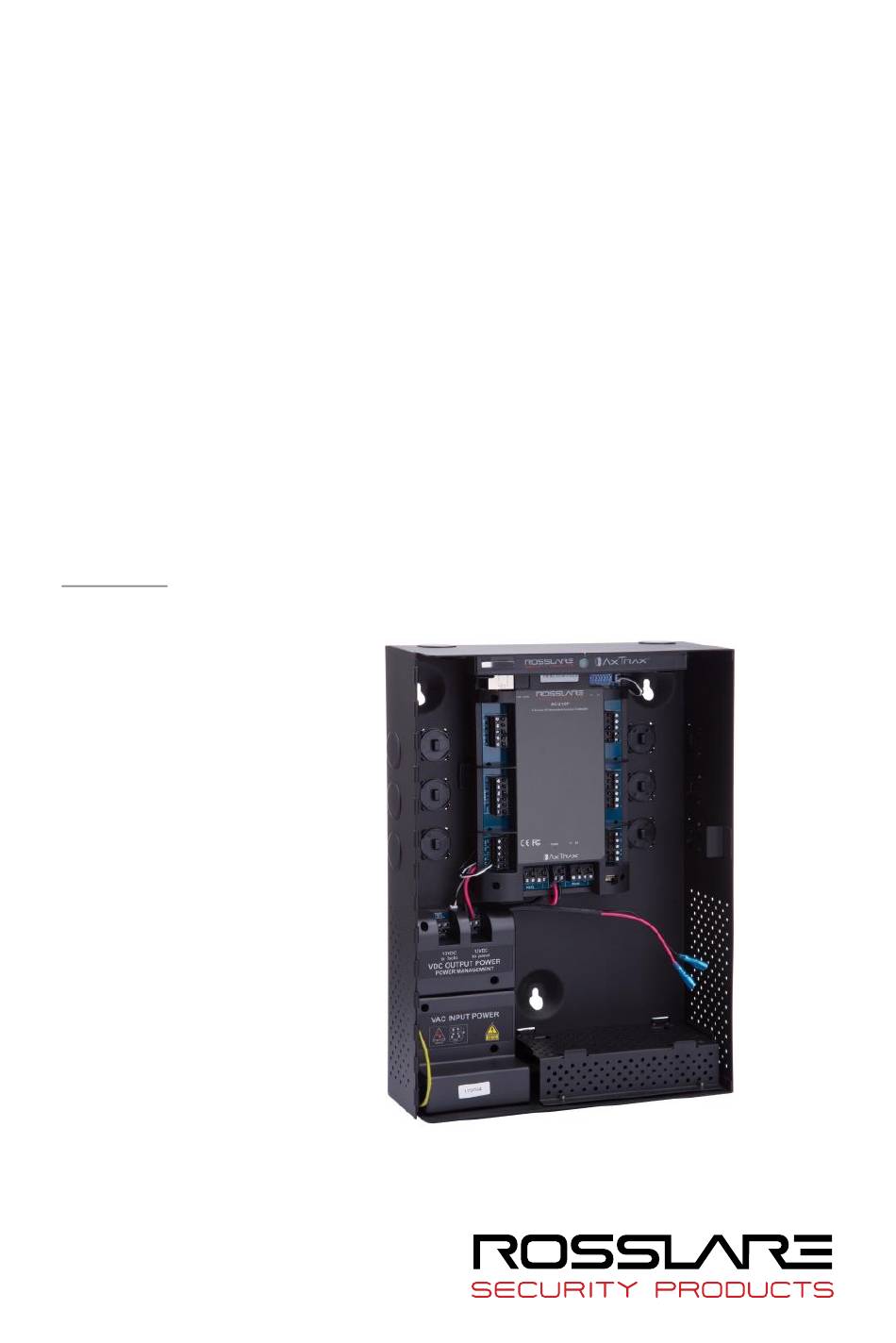

- Page 1 AC-215x-B Series 2-Reader Networked Access Control Panel Hardware Installation Manual and User Guide Models: AC-215-Bx AC-215-DIN AC-215IP-Bx AC-215IP-DIN...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ................8 AxTraxNG ................... 9 1.1.1 Client-Server Structure ................10 1.1.2 Configurable Links ..................10 Technical Specifications ............11 AC-215x-DIN ..................11 AC-215x Installed in ME-1015 ............12 AC-215x Panel Setup ..............13 Inputs Wiring –... - Page 4 Table of Contents DIP Switch Configuration ..............27 Access Control Panel Baud Rate ............27 Access Control Panel Type ..............28 Access Control Panel Addressing ............29 Communications ............... 31 Serial Network Connection ............... 31 6.1.1 RS-232 Connection to the Computer ............31 6.1.2 RS-485 Connection to the Computer ............
- Page 5 List of Figures List of Figures Figure 1: AC-215x Panel ................. 9 Figure 2: Sample AC-215x Configuration............13 Figure 3: Inputs Wiring – Non-supervised Inputs ........... 14 Figure 4: Door Lock – Failed Close ..............15 Figure 5: Door Lock – Failed Open ..............16 Figure 6: Wiring Between PM-10 and AC-215x-B .........
- Page 6 List of Tables List of Tables Table 1: Description of AC-215x-B Panels ............8 Table 2: AxTraxNG Capabilities ............... 9 Table 3: DIP Switches and Their Functions ............. 27 Table 4: Switch Baud Rates ................28 Table 5: Possible Hardware Settings .............. 28 Table 6: Available Panel Addresses ...............
- Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 8: Introduction
The IP models also includes onboard support for communications across a TCP/IP network. When used in combination with Rosslare's AxTraxNG™ software system, the AC-215x gives you full control over access to your premises. The system can control both single and double door entrances and up to two doors. AC-215x supports up to 30,000 users and uses flash memory to enable easy firmware upgrades. -
Page 9: Axtraxng
Introduction accepts inputs from 90 ~ 265 VAC (50 ~ 60 Hz) and outputs 60 watts, a power management board that provides two independently fused 12 VDC, 2 Amp power outputs – one for the controller and readers, and one for locks. The ME-1015 power management enclosure also includes an alert sounder, a lead acid battery charger for a lead acid battery of up 12 V and 7 Ah, and an intelligent light bar that provides enclosure lighting, an enclosure tamper... -
Page 10: Client-Server Structure
Introduction These options are software and firmware dependent, and may change in later releases or revisions. 1.1.1 Client-Server Structure AxTraxNG operates through a dedicated AxTrax server computer, which communicates with the access control panels and can serve an unlimited number of network clients. The server also runs the system's SQL database, which contains settings and definitions for access control across the entire facility. -
Page 11: Technical Specifications
Technical Specifications Technical Specifications AC-215x-DIN Electrical Characteristics Operating Voltage 12 VDC, 1.5 A from a regulated power supply Maximum Input Current AC-215 Standby: 80 mA Maximum: 325 mA AC-215IP Standby: 120 mA Maximum: 370 mA General Inputs • 4 supervised high impedance inputs •... -
Page 12: Ac-215X Installed In Me-1015
Technical Specifications Weight 0.36 kg (12.7 oz) AC-215x Installed in ME-1015 Electrical Characteristics – Switch Mode Power Supply Operating Voltage 90 ~ 265 VAC, 50 ~ 60 Hz from mains power Maximum Input Current 1.5 A Output Power 15 VDC, 4 A (60 Watts) to the power management board Electrical Characteristics –... -
Page 13: Ac-215X Panel Setup
AC-215x Panel Setup AC-215x Panel Setup Each AC-215x panel controls one or two doors. The panels connect together in a network and are controlled by a central server computer, running the AxTraxNG software system. Figure 2 shows an example setup for a network of AC-215x access control panels. -
Page 14: Inputs Wiring - Non-Supervised Inputs
AC-215x Panel Setup Inputs Wiring – Non-Supervised Inputs Figure 3 presents a detailed view of the non-supervised inputs and their connection options. Figure 3: Inputs Wiring – Non-supervised Inputs Inputs Wiring – Supervised Inputs When wiring the AC-215x for supervised inputs, resistors should be placed on the input switch and not on the terminal block. -
Page 15: Outputs Wiring
AC-215x Panel Setup Outputs Wiring Figure 4 and Figure 5 illustrate wiring for two main types of 12 VDC electrical release mechanisms. Other electrical devices can be switched using the voltage free relay contacts. Figure 4: Door Lock – Failed Close AC-215x-B Series Hardware Installation Manual... -
Page 16: Figure 5: Door Lock - Failed Open
AC-215x Panel Setup Figure 5: Door Lock – Failed Open AC-215x-B Series Hardware Installation Manual... -
Page 17: Power Supply
AC-215x Panel Setup Power Supply Figure 6 illustrates wiring between the PM-10 power management board and the AC-215x-B. Make sure the connection polarity is correct, (+) to (+) and (-) to (-). Connect the power to the input power terminals of the control panel. It is recommended to add a 12 VDC lead acid backup battery (requires the ME-1015 Power Management Enclosure) to have uninterrupted operation in case main power supply fails. -
Page 18: Ac-215X-B Wiring Communications
AC-215x Panel Setup AC-215x-B Wiring Communications Figure 7 presents a detailed view of the access control panel with all it wiring communications. Figure 7: AC-215x-B Wiring Communications AC-215x-B Series Hardware Installation Manual... -
Page 19: Reader
AC-215x Panel Setup Reader Readers are supplied with a limited cable length. When extending the wire, make sure to match the conductors to the correct terminals on the AC-215x panel (Figure 8). Refer to the reader specifications for the maximum cable length (typically 150 m with an 18 AWG cable). -
Page 20: Input And Output Connections
Input and Output Connections Input and Output Connections This chapter describes the AC-215x access control panel's input and output connections. Input Types There are four input types – Normally Open, Normally Closed, Normally Open Supervised 1 or 2 resistors, and Normally Closed Supervised 1 or 2 resistors. Inputs IN1, IN1A, IN2 and IN2A may be configured individually as either supervised or non-supervised inputs. -
Page 21: Normally Closed Input Connection
Input and Output Connections Figure 9: Normally Open Input Connection 4.1.2 Normally Closed Input Connection Normally Closed Input has two states: Switch Closed – Normal State: Loop resistance = 0 (short circuit). Switch Open – Abnormal State: Loop resistance = Infinite (open circuit). Figure 10: Normally Closed Input Connection AC-215x-B Series Hardware Installation Manual... -
Page 22: Normally Open Supervised Single Resistor Input Connection
Input and Output Connections 4.1.3 Normally Open Supervised Single Resistor Input Connection Connect an 8.2 kΩ resistor in parallel to the input switch contacts. Normally Open Supervised Input has 3 states: Switch Open – Normal State: Loop resistance = 8.2 kΩ Switch Closed –... -
Page 23: Normally Closed Supervised Single Resistor Input Connection
Input and Output Connections Figure 12: Normally Open Supervised Input (Double Resistor) Connection 4.1.5 Normally Closed Supervised Single Resistor Input Connection Connect a 2.2 kΩ resistor in series to the input switch contacts. Normally Closed Supervised Input has 3 states: ... -
Page 24: Normally Closed Supervised Double Resistor Input Connection
Input and Output Connections 4.1.6 Normally Closed Supervised Double Resistor Input Connection Connect a 2.2 kΩ resistor in series to the input switch contacts. Connect an 8.2 kΩ resistor parallel to the input switch contacts. Normally Closed Supervised Input has 3 states: ... -
Page 25: Door Monitor Input
Outputs Rosslare Security recommends the use of suppression diodes for all outputs that activate an inductive load. There are two types of door locking devices: ... -
Page 26: Card Readers And Keypads
Input and Output Connections Card Readers and Keypads Each access control panel can be connected to a maximum of two readers. There are three available types of reader: Card readers Keypads Dual keypad card readers A keypad is required for any reader mode that requires PIN code entries, such as "Card or PIN", "PIN Only"... -
Page 27: Ac-215X Hardware Settings
AC-215x Hardware Settings AC-215x Hardware Settings DIP Switch Configuration The DIP switches in the access control panel determine the baud rates for serial communication, control panel type, and the device address, as summarized in Table 3. Table 3: DIP Switches and Their Functions Function Switch The panel's communication baud rate... -
Page 28: Access Control Panel Type
AC-215x Hardware Settings Table 4 lists Switch 1 and 2 status and baud rate: Table 4: Switch Baud Rates Switch 1 Switch 2 Baud Rate 9600 19200 115200 57600 The access control panel baud rate must be identical to the AxTrax Network configuration of baud rate. -
Page 29: Access Control Panel Addressing
AC-215x Hardware Settings Double Door Outputs Door1 Lock output (OUT 1) General purpose output (OUT 1A) Door2 Lock output (OUT 2) General purpose output (OUT 2A) Inputs Door1 Request to exit (IN 1) Door1 monitor input (IN 1A) Door2 Request to exit (IN 2) Door2 monitor input (IN 2A) - Page 30 AC-215x Hardware Settings Address Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 AC-215x-B Series Hardware Installation Manual...
-
Page 31: Communications
Communications Communications Communication lines are used to upload and download information between the access control panel and the AxTraxNG software. When the access control panel and the computer are communicating, the system’s two LEDs flash accordingly. The RX LED flashes when the controller receives data ... -
Page 32: Rs-485 Connection To The Computer
Communications The distance between the computer and the access control panel must be no more than 150 feet (50 meters). If the baud rate is increased to 57600 or beyond, the distance must be no more than 30 feet (10 meters). Table 7: RS-232 Connection Access Control Panel DB9 Connector DB25 Connector Pin 5... -
Page 33: Daisy Chaining
Communications 6.1.3 Daisy Chaining You can connect up to 32 panels to a single serial line using a daisy-chain formation, which is done by drop-down RS-485 wiring (Figure 18). Figure 18: Daisy Chaining This can increase the maximum distance from the PC to the last panel in the chain to 4,000 ft (1,219.2 m). -
Page 34: Tcp/Ip Network Connection
IP port can support up to 32 AC-215x-B panels (Figure 19). Figure 19: Connecting Multiple Access Control Panels to AC-215IP To connect to a TCP/IP network using AC-215 non-IP models, add Rosslare's MD-N32 TCP/IP to RS-232 gateway converter. MD-N32 User... -
Page 35: Figure 22: Connecting Multiple Access Control Panels With Md-N32
When using an MD-N32, for a single panel, either an RS-232 cable or Rosslare's MD-14U RS-485 to RS-232 converter can be used. To connect an MD-N32 to more than one panel (up to 32 panels), Rosslare's MD-14U RS-485 to RS-232 converter must be used. Connect the MD-14U between the RS-485 access control panel network and the MD-N32 converter (Figure 21). -
Page 36: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity FCC ID = GCD-AC215x xxxx This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including ... -
Page 37: Radio Equipment Directive (Red)
Radio Equipment Directive (RED) Radio Equipment Directive (RED) Under our sole responsibility that the following labeled AC-215-Bx, AC-215-DIN, AC-215IP-Bx, and AC-215IP-DIN are tested to conform to the EU Radio Equipment Directive – RED 2014/53/EU – in electrical and electronic equipment. -
Page 38: Rohs Directive
RoHS Directive RoHS Directive Under our sole responsibility that the following labeled AC-215-Bx, AC- 215-DIN, AC-215IP-Bx, and AC-215IP-DIN are tested to conform to the Restriction of Hazardous Substances (RoHS) directive – 2011/65/EU – in electrical and electronic equipment AC-215x-B Series Hardware Installation Manual... -
Page 39: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AC-215x-B Series Hardware Installation Manual... - Page 40 Rosslare Security Products, Inc. Fax: +86-755-8610-6101 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 Rosslare Electronics India Pvt Ltd. support.na@rosslaresecurity.com Tel/Fax: +91-20-40147830 Europe Mobile: +91-9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. 22 Ha'Melacha St., P.O.B. 11407 Rosh HaAyin, Israel...
