Rosslare HomeLogiX HLX-40 User Manual

Rosslare HomeLogiX HLX-40 User Manual

Advanced wireless security panel
Hide thumbs Also See for HomeLogiX HLX-40:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation & Programming Manual, User Manual
HLX-40/40A/40B
Advanced Wireless Security Panel
User Manual
2012
December

Advertisement

Table of Contents
loading

Related Manuals for Rosslare HomeLogiX HLX-40

Summary of Contents for Rosslare HomeLogiX HLX-40

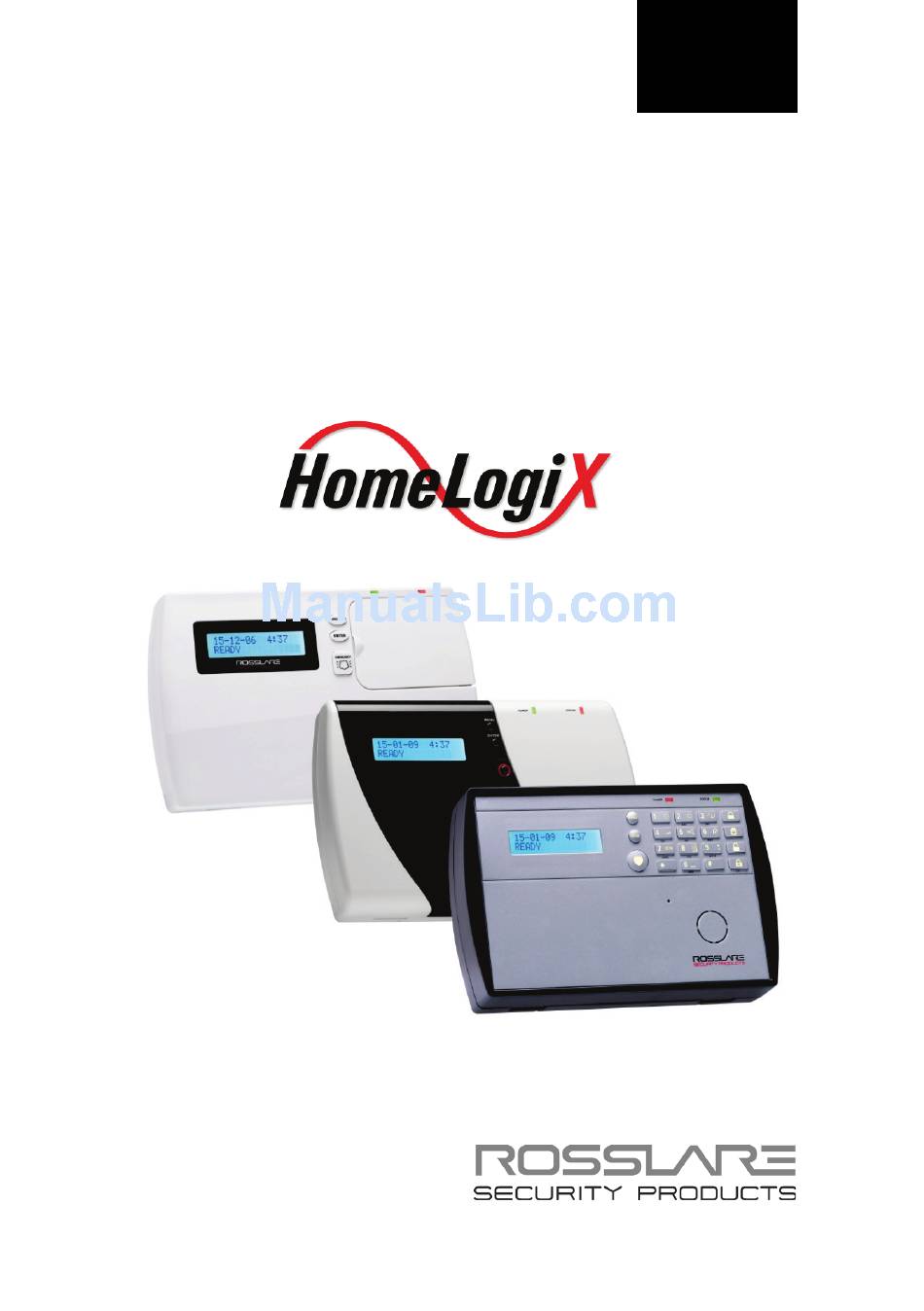

  • Page 1 2012 December HLX-40/40A/40B Advanced Wireless Security Panel User Manual...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ............... 8 2. Operating the HLX-40 ............. 10 Quick Reference ................10 About Everyday Operation ..............10 Arming Options ................10 2.3.1 Arm Away ....................10 2.3.2 Arm Home ....................11 2.3.3 Disarmed ....................
  • Page 4 Setting Phone Numbers ..............33 9.11 Activating/Deactivating PC Mode ............33 10. Maintenance ..............34 10.1 Dismounting the Control Panel ............34 10.2 Replacing the Backup Battery ............34 A. Declaration of Conformity ..........35 B. Limited Warranty ............36 HLX-40 User Manual...
  • Page 5 List of Figures List of Figures Figure 1: HLX-40 .................... 8 Figure 2: HLX-40A ..................9 Figure 3: HLX-40B ..................9 Figure 4: Wireless Panel Components ............15 Figure 5: The Keypad..................18 Figure 6: Replacing the Backup Battery ............34...
  • Page 6 List of Tables List of Tables Table 1: Quick Reference to Keypad Buttons ..........10 Table 2: HomeLogiX™ HLX-40 Wireless Panel ..........16 Table 3: Display Options ................17 Table 4: Keypad Functions ................18 Table 5: Sound Indicators ................20 Table 6: LED Indicators .................
  • Page 7  ROSSLARE ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’ (hereafter:"ROSSLARE") exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.

  • Page 8: Introduction

    Introduction Introduction The HomeLogiX™ HLX-40 family of panels by Rosslare is the perfect wireless security system for intrusion protection of the home, or small office providing security monitoring and IVR Voice messaging. Users receive the latest RF technology in a wide selection of advanced wireless sensors and remotes, and benefit from smooth and easy operation of a large number of security and communication options.

  • Page 9: Figure 2: Hlx-40A

    Introduction Figure 2: HLX-40A Figure 3: HLX-40B HLX-40 User Manual...

  • Page 10: Operating The Hlx-40

    For more on the keys and their function, see Section 4.3. About Everyday Operation The HLX-40 system allows you to ensure the security of your home, both while you are home and while you are away. The system allows you to control attached sub-systems and appliances such as garage doors, lights, heating, and air conditioner via an expandable PGM output.

  • Page 11: Arm Home

    Enter your user code. 2.3.3 Disarmed When disarmed, the HLX-40 system enters Alarm mode for each 24-hour zone. Alarms trigger only for panic, emergency, fire, 24-hour audible, and silent conditions. In this state, the system continuously checks zone status and holds the Ready status parameter.

  • Page 12: Forced Arming

    Operating the HLX-40 2.3.6 Forced Arming If Forced Arming is enabled, the system is able to arm even when zones are in violation (open) but not defined as bypassed. In such a case, the system arms, effectively bypassing the open zone. Once the open zone is closed, the system completes arming, adding the previously bypassed zone to the monitored zones.

  • Page 13: Technical Specifications

    217 x 144 x 50 mm 217 x 144 x 48 mm Depth (8.54 x 5.67 x 1.89 (8.54 x 5.67 x 1.97 (8.54 x 5.67 x 1.89 in.) in.) Weight 520g (1.15 lb) 530g (1.17 lb) 548g (1.21 lb) HLX-40 User Manual...
  • Page 14 Technical Specifications In addition, the HLX-40 system complies with the following standards:    EN 50131-3 EN 50131-6   EN 50130-5  EN 50130-4  EN 60950-1 EN 50131-5-3   Security Grade 2  Environmental II HLX-40 User Manual...

  • Page 15: System Overview

    System Overview System Overview The main components of the HomeLogiX™ HLX-40 wireless panel are:  HomeLogiX™ HLX-40 Wireless Panel  The LCD Display  The Keypad  Sound Indicators  LED Indicators HomeLogiX™ HLX-40 Wireless Panel The following figure presents the components of the wireless panel.

  • Page 16: The Lcd Display

    System Overview Table 2 describes the components in the panel: Table 2: HomeLogiX™ HLX-40 Wireless Panel Menu Use to navigate between menus Power indicator Power LED Green on: system is ON Green flashing: AC power failure Status indicator Status LED...

  • Page 17: Table 3: Display Options

    • Tamper In addition the following Zone Troubles may appear in the TRBL message: • Tamper • Low battery • Short Wire • Supervision (failure) Indicates an alarm in memory Indicates that a personal message is waiting HLX-40 User Manual...

  • Page 18: The Keypad

    You must enter a user or master code. Arm all perimeter sensors and detectors as defined by HOME the Installer. Use this function when the home/office is occupied. You must enter a user or master code. HLX-40 User Manual...
  • Page 19 RF test of wireless devices which is always on). Bypass – If enabled by installer. Normal mode Enter the last User menu Bypass option to arm the only system by bypassing active zones. You must enter a user or master code. HLX-40 User Manual...

  • Page 20: Sound Indicators

    Aside from the indication sounds, the system also has a voice confirmation of various events. This table does not include actual alarm sounds. Note that the audible indication of a fire zone differs from that of a normal intrusion zone. HLX-40 User Manual...

  • Page 21: Led Indicators

    Green On when the system is ON. FLASHING when there is an AC power failure. Status Red OFF when system is disarmed ON when system is armed. FLASHING during entry/exit delay, according to the beep rate specified. HLX-40 User Manual...

  • Page 22: User Menu Structure

    Enables you to arm the system by bypassing/un-bypassing selected zones (see Section 9.7). This option is enabled if manual bypass has been enabled by the installer. Note: Zone bypass can be triggered only if the zone was enrolled. HLX-40 User Manual...
  • Page 23 (M) Private Specify up to three private telephone numbers (see Section Numbers 9.10). (M) PC Mode Enable or disable PC connection and activity when GSM expansion is installed. Otherwise PC mode is enabled Automatically (see Section 9.11). HLX-40 User Manual...

  • Page 24: Interactive Voice Response Menu

    Press 2 to enter the automation options submenu  Press 3 to enter the voice operation options submenu  Press 4 to receive a status report  Press 9 to exit the menu and disconnect the system.  HLX-40 User Manual...

  • Page 25: Arming Submenu

    Press 0 to return to the previous menu  After pressing 2 for message recording, you have 15 seconds to record your message. Press # to stop the recording  Press 0 to return to the previous menu  HLX-40 User Manual...

  • Page 26: Status Report

    After entering the two-way voice activation menu: Press 1 to listen in  Press 3 to talk  Press 0 to return to the previous menu  Status Report Enter the Status submenu to hear the system status. HLX-40 User Manual...

  • Page 27: Reading The Event Log

    Reading the Event Log Reading the Event Log The HLX-40 event log stores up to 250 events. When the log is full, the new incoming event replaces the oldest event. Events are displayed in a chronological order and include the date and time of their occurrence.

  • Page 28: Sms Commands

    SMS Commands SMS Commands The HLX-40 family supports remotely controlling the system using a cellular phone by accepting SMS commands from the user’s cell phone to the GSM’s SIM card provided that the MD-CC101 GSM Stick expansion is installed and functioning properly.

  • Page 29: User Menu Options

    Using the Menu button, select User Codes and press Enter. Using the numeric keypad, select a user (1–20) and press Enter. Using the numeric keypad, type a 4-digit code and press Enter to save. Press the pound key (#) to delete an existing number. HLX-40 User Manual...

  • Page 30: Authorization Codes

    AM/PM using the Menu button. Press Enter to confirm your selection. Specify the format in which the date is displayed: DD-MM-YY or MM-DD- Press Enter to confirm your selection. The date and time format is set. HLX-40 User Manual...

  • Page 31: Setting Zone Bypass

    Using the Menu button, choose to either Bypass or Un-Bypass the selected zone. Press Enter to save your selection. Arm the system using one of the arming options. To arm the system again using the same bypass settings, press 6 followed by one of the arming buttons. HLX-40 User Manual...

  • Page 32: Enrolling A Remote Control

    Select the pre-enrolled remote control number 01–08 by either browsing the remotes using the Menu button or by entering the remote number using the numeric keypad. You are asked to confirm deletion. Press Enter to delete the remote control or the ESC button to go back. HLX-40 User Manual...

  • Page 33: Setting Phone Numbers

    After two minutes of inactivity, the system automatically deactivates. To set the PC mode: Using the Menu button, select PC Mode and press Enter. Using the Menu button, select Activate or Deactivate and press Enter to confirm. HLX-40 User Manual...

  • Page 34: 10. Maintenance

    Remove the panel from the lower posts of the back-plate. 10.2 Replacing the Backup Battery To replace the backup battery : Dismount the panel. Remove the battery cover. Replace the battery. Replace the cover. Figure 6: Replacing the Backup Battery HLX-40 User Manual...

  • Page 35: Declaration Of Conformity

     Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Rosslare Ltd.) could void the user’s authority to operate the equipment. HLX-40 User Manual...

  • Page 36: Limited Warranty

    EMEDY OVERAGE In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty.

  • Page 37: Limited Warranty

    XCLUSIONS AND IMITATIONS ROSSLARE shall not be responsible or liable for any damage or loss resulting from the operation or performance of any Product or any systems in which a Product is incorporated. This warranty shall not extend to any ancillary...
  • Page 38 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Fax: +1-817-305-0069 Rosslare Electronics India Pvt Ltd. support.na@rosslaresecurity.com Tel/Fax: +91 20 40147830 Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd. Rosh HaAyin, Israel...
