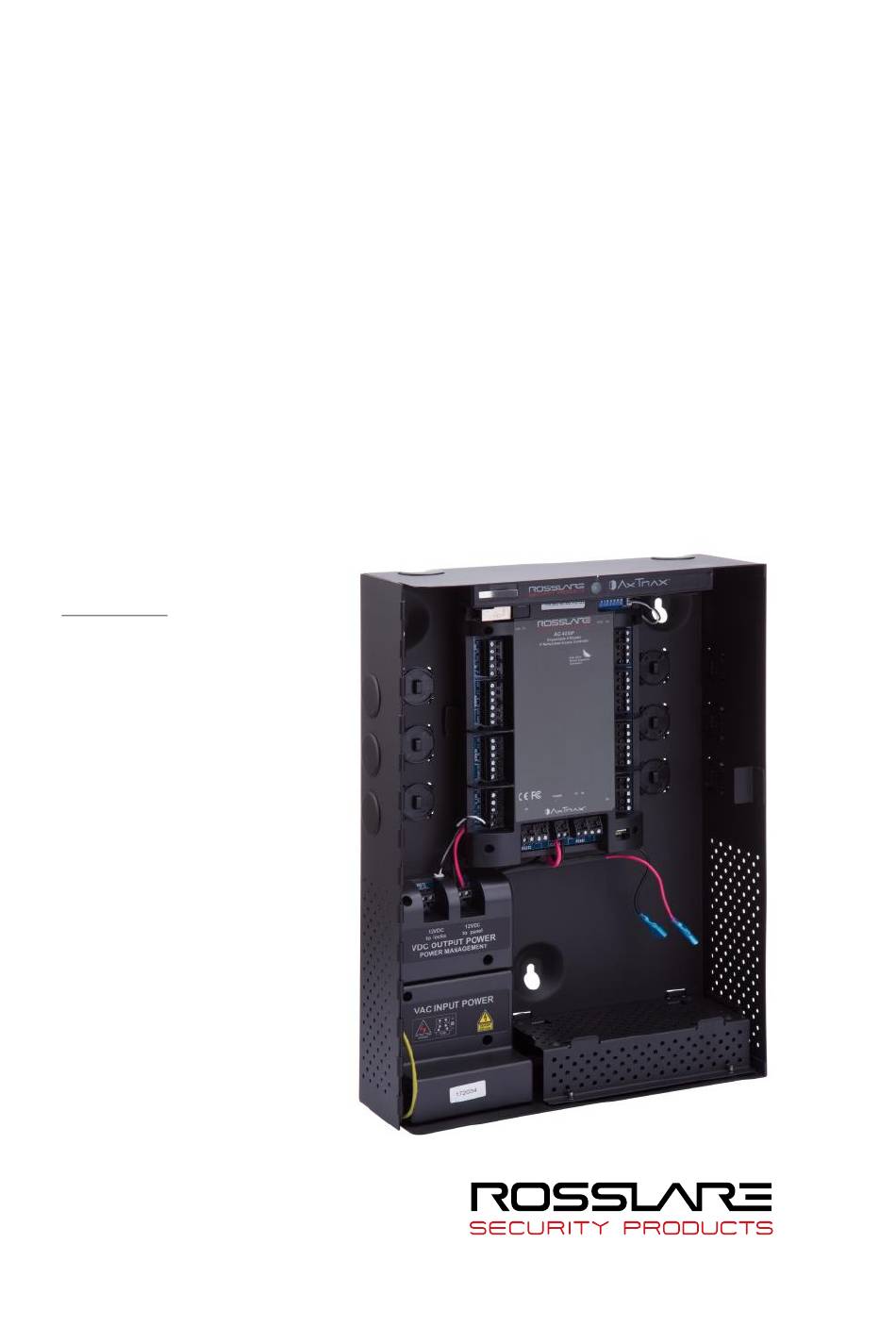

- Page 1 AC-425x-B Series Expandable 4-Reader Networked Access Control Panel Hardware Installation and User Guide Models: AC-425-B AC-425-DIN AC-425IP-B AC-425IP-DIN...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..................8 AxTraxNG ................................. 9 1.1.1 Client-Server Structure ............................... 10 1.1.2 Configurable Links ................................10 1.1.3 Fingerprint Recognition ..............................10 Technical Specifications ..............11 AC-425x-DIN ..............................11 AC-425x-B Installed in ME-1015 ......................12 AC-425x-B Panel Setup .............. - Page 4 Table of Contents 4.2.1 Request-to-Exit Button (REX) Input ..........................25 4.2.2 Door Monitor Input ................................26 4.2.3 General Purpose Inputs ..............................26 Outputs ................................27 4.3.1 Door Lock ....................................27 Card Readers and Keypads ........................28 AC-425x-B Hardware Settings ............30 DIP Switch Configuration ........................
- Page 5 List of Figures List of Figures Figure 1: AC-425x-B Panel Layout ........................... 9 Figure 2: Sample AC-425x-B Configuration ....................... 14 Figure 3: Inputs Wiring – Non-supervised Inputs ................... 15 Figure 4: Door Lock – Failed Close ........................16 Figure 5: Door Lock – Failed Open ........................17 Figure 6: Wiring Between PM-10 and AC-425x-B ...................
- Page 6 List of Tables List of Tables Table 1: DIP Switches and Their Functions ......................30 Table 2: Switch Baud Rates ............................31 Table 3: Possible Hardware Settings ........................31 Table 4: Available Panel Addresses ........................35 Table 5: RS-232 Connection ............................. 38 AC-425x-B Hardware Installation and User Manual...
- Page 7 The use of the software associated with the system and/or product, if applicable, is subject to the terms of the license provided as part of the purchase documents. ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 8: Introduction
Driven by Rosslare’s powerful, flexible and easy-to-use AxTraxNG™ software, the system provides an ideal, modular and expandable solution for commercial and institutional needs. It provides seamless integration with Rosslare's range of RFID proximity, PIN, Proximity & PIN, smartcard and biometric readers with Rosslare’s selection of RFID credentials. -
Page 9: Axtraxng
Introduction Figure 1 shows the layout of the AC-425x-B panel. Figure 1: AC-425x-B Panel Layout AxTraxNG The AxTraxNG software system is custom designed to set up, manage, and supervise all aspects of an access panel network. It offers the following capabilities: Parameter Value Users capacity... -
Page 10: Client-Server Structure
1.1.3 Fingerprint Recognition AxTraxNG can share user details with Rosslare's BioTrax software system. The BioTrax system can then download all selected user information to an AYC-W6500 fingerprint reader. Fingerprint recognition was not evaluated by UL. -
Page 11: Technical Specifications
Technical Specifications Technical Specifications AC-425x-DIN AC-425x-B Hardware Installation and User Manual... -
Page 12: Ac-425X-B Installed In Me-1015
Technical Specifications Electrical Characteristics Operating Voltage 12 VDC, 1.5 A from a regulated power supply Maximum Input Current AC-425 Standby: 80 mA Maximum: 325 mA AC-425IP Standby: 120 mA Maximum: 370 mA General Inputs 4 supervised high impedance inputs ... - Page 13 Technical Specifications Electrical Characteristics – Switch Mode Power Supply Operating Voltage 90 ~ 265 VAC, 50 ~ 60 Hz from mains power Maximum Input Current 1.5 A Output Power 15 VDC, 4 A (60 Watts) to the power management board Electrical Characteristics –...
-
Page 14: Ac-425X-B Panel Setup
AC-425x-B Panel Setup AC-425x-B Panel Setup Each AC-425x-B panel controls 2 or 4 doors (up to 8 doors with MD-D04B). The panels connect together in a network and are controlled by a central server computer, running the AxTraxNG software system. Figure 2 shows an example setup for a network of AC-425x-B access control panels. -
Page 15: Inputs Wiring - Non-Supervised Inputs
AC-425x-B Panel Setup Inputs Wiring – Non-Supervised Inputs Figure 3 presents a detailed view of the non-supervised inputs and their connection options. Figure 3: Inputs Wiring – Non-supervised Inputs AC-425x-B Hardware Installation and User Manual... -
Page 16: Inputs Wiring - Supervised Inputs
AC-425x-B Panel Setup Inputs Wiring – Supervised Inputs When wiring the AC-425x-B for supervised inputs, resistors should be placed on the input switch and not on the terminal block. For more details, refer to Chapter 4. Outputs Wiring Figure 4 and Figure 5 illustrate wiring for two main types of 12 VDC electrical release mechanisms. -
Page 17: Power Supply
AC-425x-B Panel Setup Figure 5: Door Lock – Failed Open Power Supply Figure 6 illustrates wiring between the PM-10 power management board and the AC-425x-B. Make sure the connection polarity is correct, (+) to (+) and (-) to (-). Connect the power to the input power terminals of the control panel. -
Page 18: Figure 6: Wiring Between Pm-10 And Ac-425X-B
AC-425x-B Panel Setup Figure 6: Wiring Between PM-10 and AC-425x-B AC-425x-B Hardware Installation and User Manual... -
Page 19: Ac-425X-B Wiring Communications
AC-425x-B Panel Setup AC-425x-B Wiring Communications Figure 7 presents a detailed view of the access control panel with all it wiring communications. Figure 7: AC-425x-B Wiring Communications Readers Proximity and keypad readers are supplied with a limited cable. The color of the cable cover represents the cable’s function according to Wiegand standards (Figure 8). -
Page 20: Md-Io84B
AC-425x-B Panel Setup Figure 8: Reader Wiring MD-IO84B The MD-IO84B is an optional I/O expansion board that adds 4 relay outputs and 8 supervised inputs to the Access Control Panel. Attach the MD-IO84B to the AC-425x-B's expansion slot, as marked in red in Figure 9). Figure 9: Connector Location for MD-IO84B or MD-D04B Expansions MD-IO84B Installation and User Guide For more information, see the... -
Page 21: Input And Output Connections
Input and Output Connections Input and Output Connections This chapter describes the AC-425x-B access control panel's input and output connections. Input Types There are four input types: Normally Closed (N.C.) Normally Open (N.O.) Single EOL resistor Double EOL resistor ... -
Page 22: Normally Closed Input Connection
Input and Output Connections Figure 10: Normally Open Input Connection 4.1.2 Normally Closed Input Connection A Normally Closed Input has two states: Switch Closed – Normal State: Loop resistance = 0 (short circuit) Switch Open – Abnormal State: Loop resistance = Infinite (open circuit) Figure 11: Normally Closed Input Connection 4.1.3... -
Page 23: Normally Open Supervised Double Eol Resistor Input Connection
Input and Output Connections Loop resistance = 0 (short circuit) Open circuit across input terminals – Trouble State: Loop resistance = Infinite (open circuit). Figure 12: Normally Open Supervised Input (Single Resistor) 4.1.4 Normally Open Supervised Double EOL Resistor Input Connection Connect a 2.2 kΩ... -
Page 24: Normally Closed Supervised Single Eol Resistor Input Connection
Input and Output Connections 4.1.5 Normally Closed Supervised Single EOL Resistor Input Connection Connect a 2.2 kΩ resistor in series to the input switch contacts. A Normally Closed Supervised Input has 3 states: Switch Closed – Normal State: Loop resistance = 2.2 kΩ Switch Open –... -
Page 25: Inputs Description
Input and Output Connections Figure 15: Normally Closed Supervised Input (Double Resistor) Inputs Description 4.2.1 Request-to-Exit Button (REX) Input Use the REX input to open a door directly. Typically, the REX input is connected to a Normally Open push button that is located inside the premises. The push button is generally located in an easy-to-access position and opens a door without reading a proximity card or PIN code. -
Page 26: Door Monitor Input
Input and Output Connections Door 8 – IN8 4.2.2 Door Monitor Input The Door Monitor input typically connects to a Normally Closed door sensing micro-switch for door status monitoring. Using Door Monitor enables many advanced options such as door forced alarm, door held open warnings, interlocking doors and more. Door monitor feature is only available when the system is defined as a two reader per door. -
Page 27: Outputs
Input and Output Connections Outputs Rosslare Security recommends the use of suppression diodes for all outputs that activate an inductive load. 4.3.1 Door Lock There are two types of door locking devices: Fail open (fail secure) Fail close (fail safe) ... -
Page 28: Card Readers And Keypads
Input and Output Connections Card Readers and Keypads Each access control panel can be connected to a maximum of four readers or 8 readers when using MD-D04B. There are three available types of reader: Card readers Keypads Dual keypad card readers ... - Page 29 Input and Output Connections Scenario Setting Door 8 – Reader 8 IN/OUT Use the AxTraxNG software to set the readers for IN or OUT use and to set the data transmission format for each reader. The reader’s tamper output connects to the access control panel's Reader-Tamper input. If the reader is interfered with, an alarm can be generated.
-
Page 30: Ac-425X-B Hardware Settings
AC-425x-B Hardware Settings AC-425x-B Hardware Settings DIP Switch Configuration The DIP switches in the access control panel determine the baud rates for serial communication, control panel type, and the device address, as summarized in Table 1. Table 1: DIP Switches and Their Functions DIP Switch Function The panel's communication baud rate... -
Page 31: Ac-425X-B Panel Baud Rate
AC-425x-B Hardware Settings AC-425x-B Panel Baud Rate The AC-425x-B panel serial port baud rate, set in DIP switches 1 and 2, defines the communication speed for connecting with a PC in a network connection. The default baud rate is set to 9600 bits per second. Table 2 lists the status of Switches 1 and 2 and the baud rate: Table 2: Switch Baud Rates Switch 1... - Page 32 AC-425x-B Hardware Settings Connectors Description Setup General purpose output (OUT 4) Inputs Door 1: Request to exit (IN 1) Door monitor input (IN 3) Door 2: Request to exit (IN 2) Door monitor input (IN 4) Readers Reader1 – Door1 Door Entry or Exit Reader2 –...
- Page 33 AC-425x-B Hardware Settings Connectors Description Setup Readers Reader1 (Door1 IN/OUT) Reader2 (Door2 OUT/IN) Reader3 (Door1 IN/OUT) Reader4 (Door2 OUT/IN) Reader5 (Door3 IN/OUT) Reader6 (Door4 OUT/IN) Reader7 (Door3 IN/OUT) Reader8 (Door4 OUT/IN) One reader per door with 8 readers (MD-D04B) Outputs Door1 Lock output (OUT 1) Door2 Lock output...
-
Page 34: Ac-425X-B Panel Address
AC-425x-B Hardware Settings AC-425x-B Panel Address The last five DIP switches are used to set the binary code of the access control panel internal network address. The default access control panel address is “1”. For successful communications, the DIP switch must match the address set in the AxTraxNG software. -
Page 35: Table 4: Available Panel Addresses
AC-425x-B Hardware Settings Table 4: Available Panel Addresses Address Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 AC-425x-B Hardware Installation and User Manual... - Page 36 AC-425x-B Hardware Settings The AC-425x-B panel address is defined in the AxTraxNG software. The DIP switch and the software must be set to the same address. AC-425x-B Hardware Installation and User Manual...
-
Page 37: Communications
Communications Communications Communication lines are used to upload and download information between the AC-425x-B panel and the AxTraxNG server. When the access control panel and the computer are communicating, the system’s two LEDs flash accordingly. The RX LED flashes when the controller receives data ... -
Page 38: Rs-485 Connection To The Computer
Communications The distance between the computer and the access control panel must be no more than 150 feet (50 meters). If the baud rate is increased to 57600 or beyond, the distance must be no more than 30 feet (10 meters). Table 5: RS-232 Connection Access Control Panel DB9 Connector... -
Page 39: Daisy Chaining
Communications The recommended cable type to be used is STP cat5 (shielded twisted pair category 5). We recommend using a 20-24-AWG cable. 6.1.3 Daisy Chaining You can connect up to 32 panels to a single serial line using a daisy-chain formation, which is done by drop-down RS-485 wiring (Figure 19). -
Page 40: Tcp/Ip Network Connection
32 AC-425IP-B panels (Figure 20). Figure 20: MD-N32 Configuration Connecting a Single Panel To connect to a TCP/IP network using AC-425 non-IP models, add Rosslare's MD-N32 TCP/IP to RS-232 gateway converter. For more information on operating an MD-N32, refer to the... -
Page 41: Lan And Wan Requirements
Settings then remain stored in non-volatile memory on the device (see the AxTraxNG Software Manual). When using an MD-N32, for a single panel, either an RS-232 cable or Rosslare's MD-14U RS- 485 to RS-232 converter can be used. -
Page 42: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity FCC ID = GCD-AC215x xxxx This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may ... -
Page 43: Radio Equipment Directive (Red)
Radio Equipment Directive (RED) Radio Equipment Directive (RED) Under our sole responsibility that the following labeled AC-425-Bx, AC-425-DIN, AC-4215IP-Bx, and AC-425IP-DIN are tested to conform to the EU Radio Equipment Directive – RED 2014/53/EU – in electrical and electronic equipment. AC-425x-B Hardware Installation and User Manual... -
Page 44: Rohs Directive
RoHS Directive RoHS Directive Under our sole responsibility that the following labeled AC-425-Bx, AC-4215-DIN, AC-425IP-Bx, and AC-425IP-DIN are tested to conform to the Restriction of Hazardous Substances (RoHS) directive – 2011/65/EU – in electrical and electronic equipment AC-425x-B Hardware Installation and User Manual... -
Page 45: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AC-425x-B Hardware Installation and User Manual... - Page 46 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. 22 Ha'Melacha St., P.O.B. 11407 Rosh HaAyin, Israel Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com...
