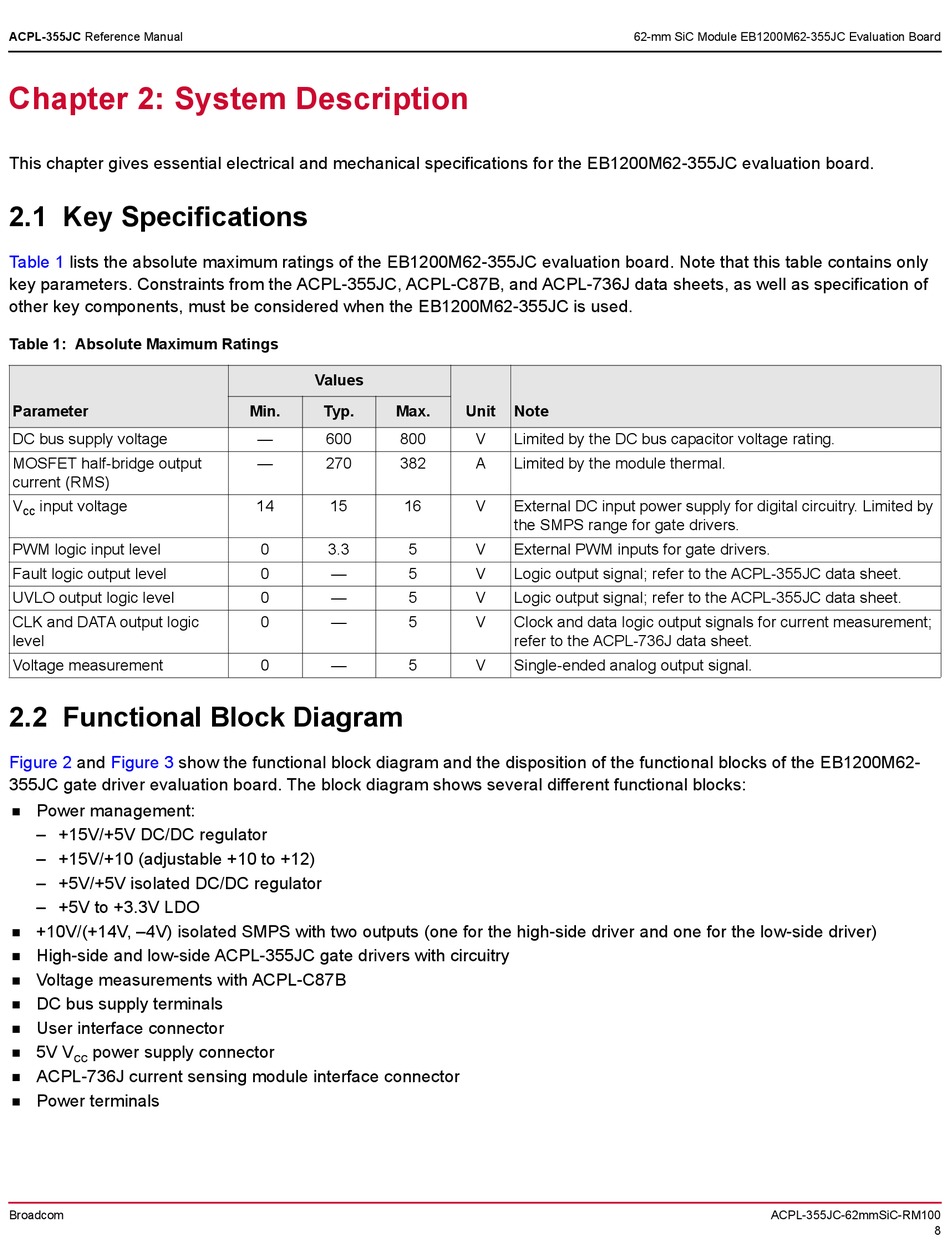

Chapter 2: System Description

This chapter gives essential electrical and mechanical specifications for the EB1200M62-355JC evaluation board.

2.1 Key Specifications

Table 1 lists the absolute maximum ratings of the EB1200M62-355JC evaluation board. Note that this table contains only
key parameters. Constraints from the ACPL-355JC, ACPL-C87B, and ACPL-736J data sheets, as well as specification of
other key components, must be considered when the EB1200M62-355JC is used.
Table 1: Absolute Maximum Ratings
Parameter
DC bus supply voltage
MOSFET half-bridge output
current (RMS)
V input voltage
cc
PWM logic input level
Fault logic output level
UVLO output logic level
CLK and DATA output logic
level
Voltage measurement

2.2 Functional Block Diagram

Figure 2 and Figure 3 show the functional block diagram and the disposition of the functional blocks of the EB1200M62-
355JC gate driver evaluation board. The block diagram shows several different functional blocks:
Power management:

– +15V/+5V DC/DC regulator
– +15V/+10 (adjustable +10 to +12)
– +5V/+5V isolated DC/DC regulator
– +5V to +3.3V LDO
+10V/(+14V, –4V) isolated SMPS with two outputs (one for the high-side driver and one for the low-side driver)

High-side and low-side ACPL-355JC gate drivers with circuitry

Voltage measurements with ACPL-C87B

DC bus supply terminals

User interface connector

5V V power supply connector

cc
ACPL-736J current sensing module interface connector

Power terminals

Broadcom
Values
Min. Typ. Max.
— 600 800
— 270 382
14 15 16
0 3.3 5
0 — 5
0 — 5
0 — 5
0 — 5
62-mm SiC Module EB1200M62-355JC Evaluation Board
Unit Note
V Limited by the DC bus capacitor voltage rating.
A Limited by the module thermal.
V External DC input power supply for digital circuitry. Limited by
the SMPS range for gate drivers.
V External PWM inputs for gate drivers.
V Logic output signal; refer to the ACPL-355JC data sheet.
V Logic output signal; refer to the ACPL-355JC data sheet.
V Clock and data logic output signals for current measurement;
refer to the ACPL-736J data sheet.
V Single-ended analog output signal.
