ACPL-355JC Reference Manual 62-mm SiC Module EB1200M62-355JC Evaluation Board

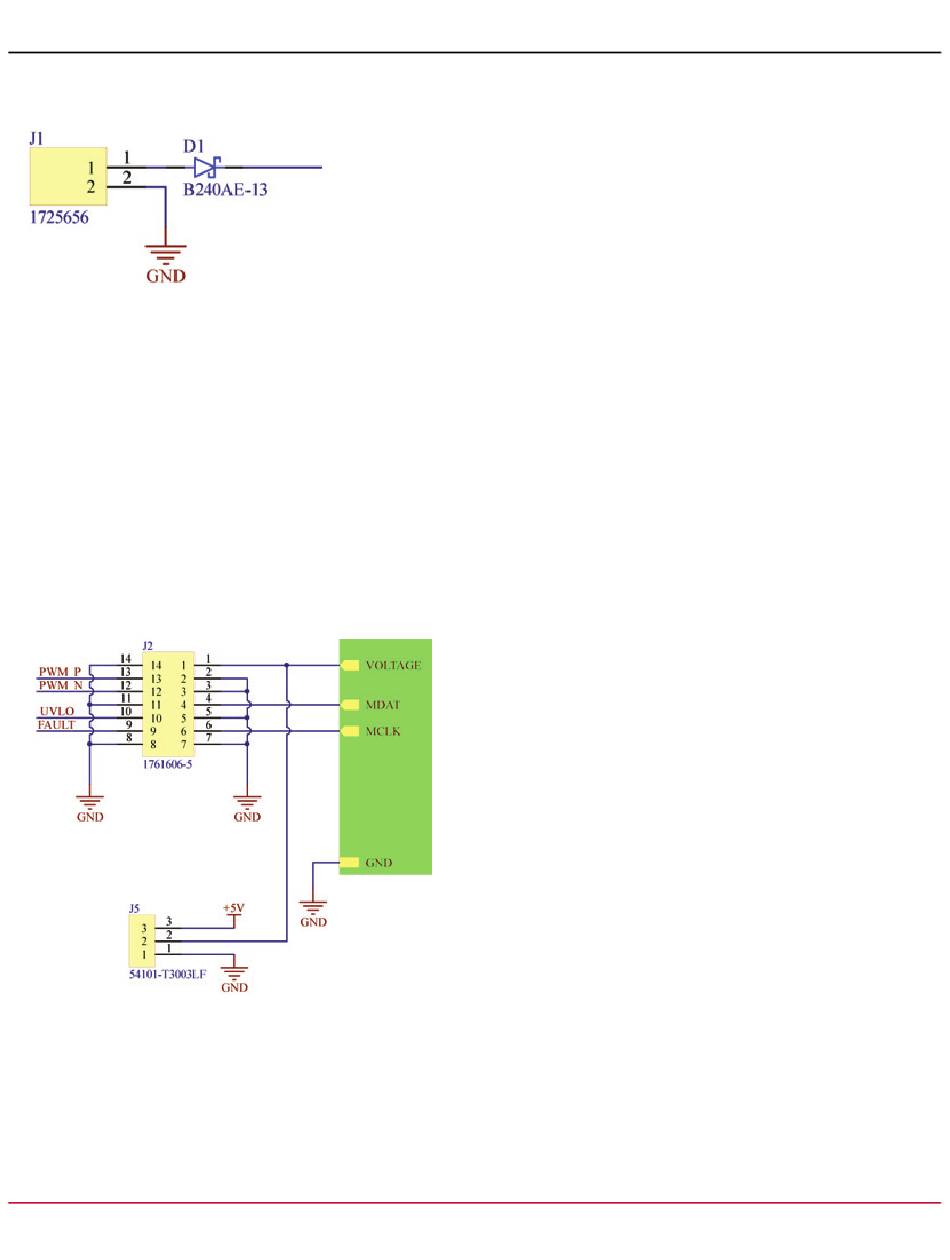

Figure 20: +15V Power Supply Connector
For reversed voltage protection, the Schottky diode is placed in series with the main power supply.

3.4.3 User Interface Connector

The user interface header connector (J2) serves as an interface between the microcontroller or PWM signal source and the
EB1200M62-355JC evaluation board. Figure 21 shows the disposition of signals across this connector. In addition to
connector J2, an additional user interface header connector (J5) is placed in the part of the board with voltage measurement
circuitry. Over this connector, an external +5V supply can be used to supply the voltage measurement board when it is
detached from the main board. In addition to supply pins, a VOLTAGE pin is provided to read the scaled and buffered DC
link voltage measurement.
Figure 21: User Interface Connector
Broadcom ACPL-355JC-62mmSiC-RM100
27
