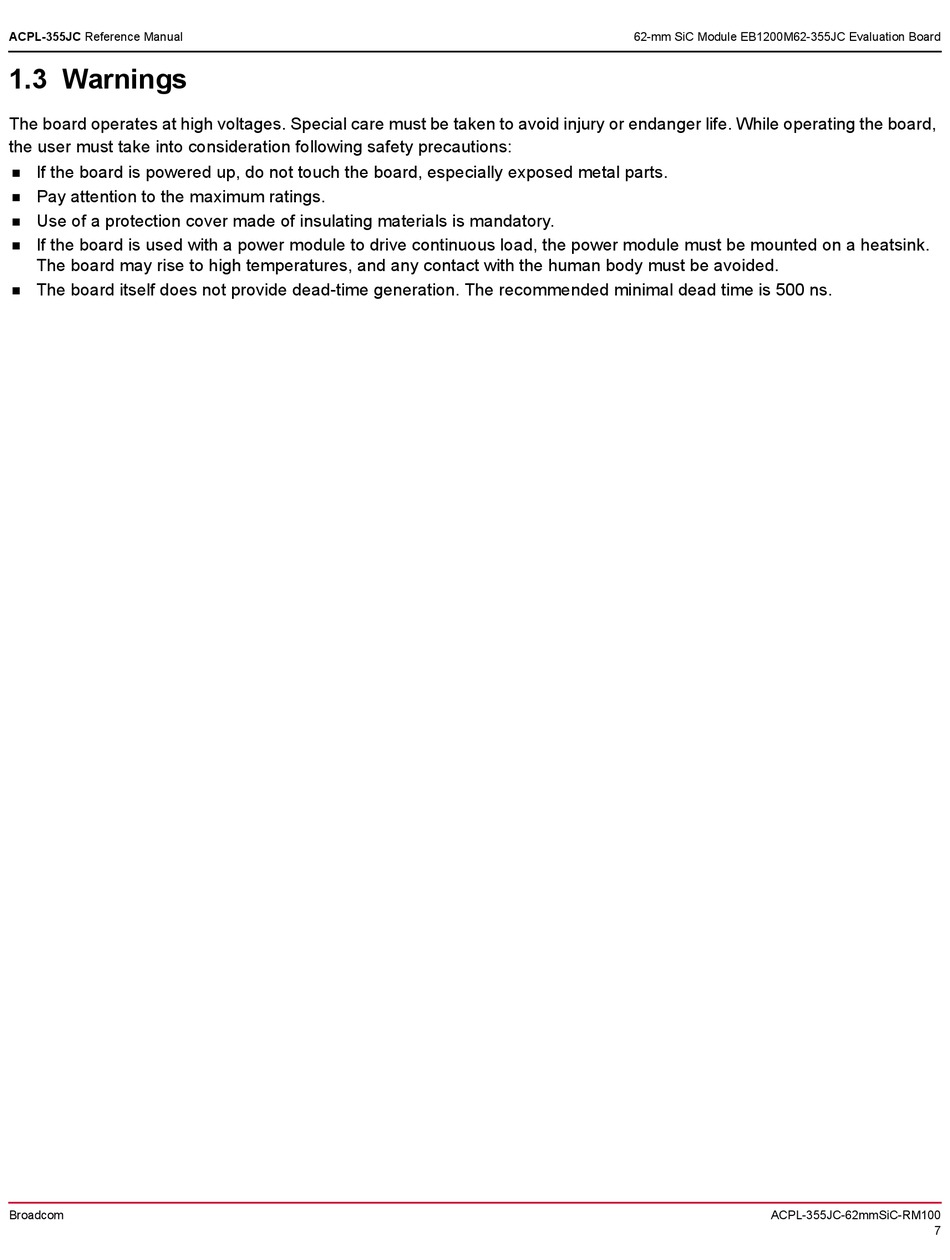

1.3 Warnings

The board operates at high voltages. Special care must be taken to avoid injury or endanger life. While operating the board,
the user must take into consideration following safety precautions:
If the board is powered up, do not touch the board, especially exposed metal parts.

Pay attention to the maximum ratings.

Use of a protection cover made of insulating materials is mandatory.

If the board is used with a power module to drive continuous load, the power module must be mounted on a heatsink.

The board may rise to high temperatures, and any contact with the human body must be avoided.
The board itself does not provide dead-time generation. The recommended minimal dead time is 500 ns.

