4.6 Typical Over-Current Protection Performance with FF6MR12KM1

The over-current protection function is demonstrated by short-circuiting the output of the power module FF6MR12KM1.

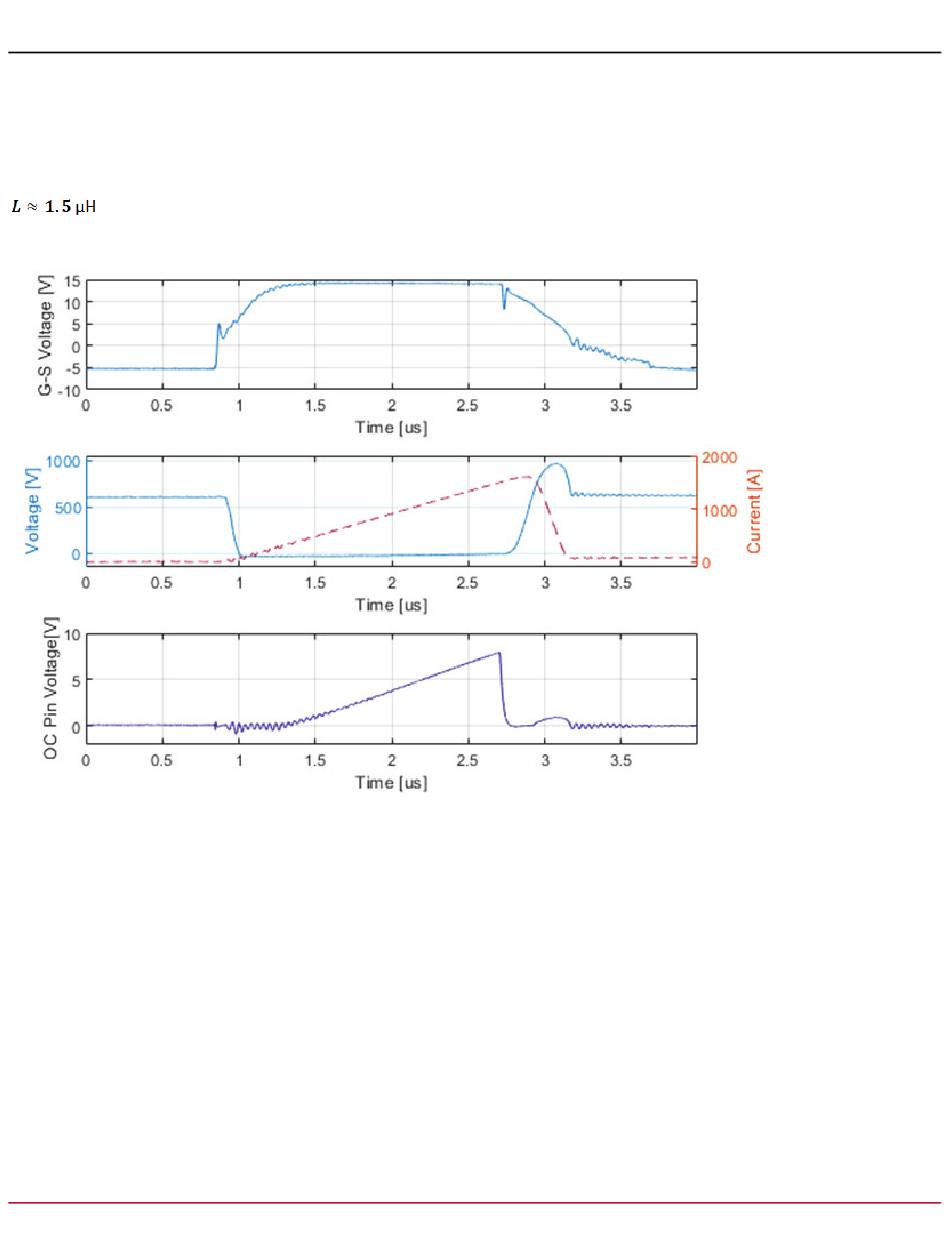

Figure 37 shows the measurement results.
Figure 37: Measurement results from over-current detection, soft short circuit at V = 600V and short circuit inductance of
dc
. In the second diagram, voltage waveforms are depicted with solid lines, and current waveforms are depicted with
dashed lines.
