ACPL-355JC Reference Manual 62-mm SiC Module EB1200M62-355JC Evaluation Board

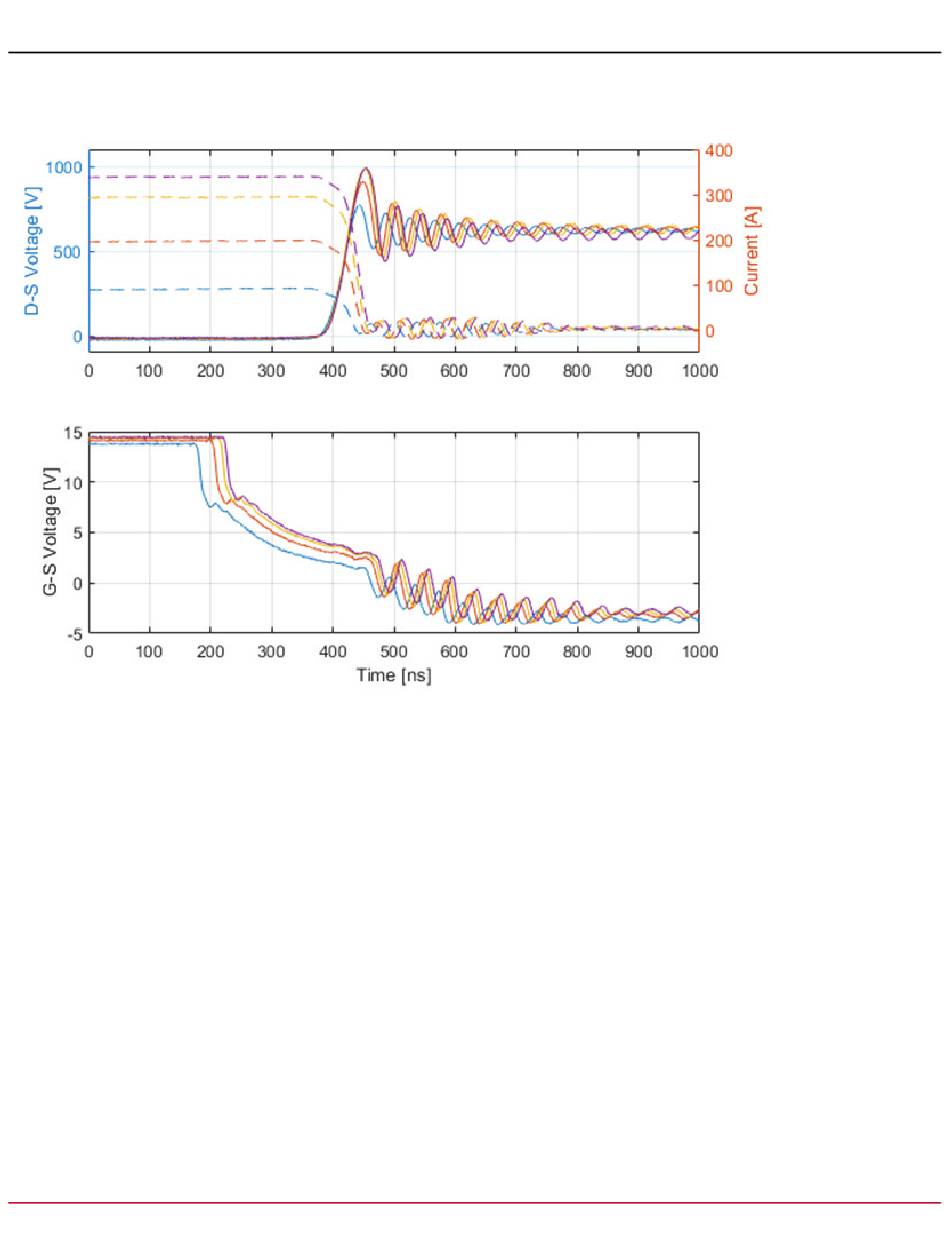

Figure 29: Characteristic waveforms during the turn-off switching transients at different load currents. In the upper diagram,
voltage waveforms are depicted with solid lines, and current waveforms are depicted with dashed lines.

4.2 Typical Switching Losses with WAB300M12BM3

In Figure 30 instantaneous power during switching and the resulting turn-on switching energy loss are shown for a DC
voltage of 600V, whereas in Figure 31 the same waveforms are shown for turn-off transient.
Broadcom ACPL-355JC-62mmSiC-RM100
34
