ACPL-355JC Reference Manual

62-mm SiC Module EB1200M62-355JC Evaluation Board

4.5 Typical Switching Losses with FF6MR12KM1

Figure 35

shows instantaneous power during switching and the resulting turn-on switching energy loss for a DC voltage of

600V, whereas

Figure 36

shows the same waveforms for the turn-off transient.

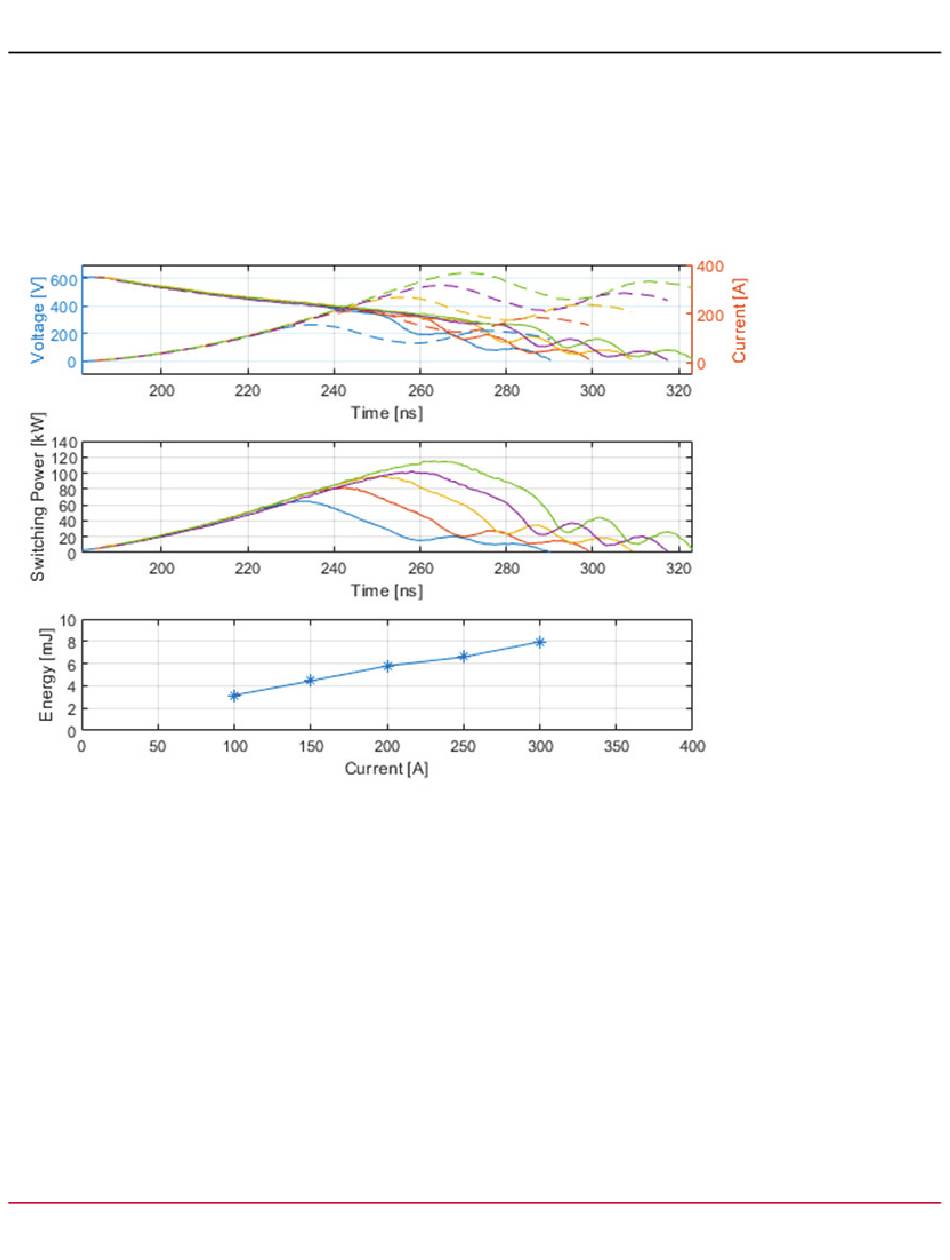

Figure 35: Turn-on switching energy loss at 600V DC bus. In the upper diagram, voltage waveforms are depicted with solid lines,

and current waveforms are depicted with dashed lines.

Broadcom

ACPL-355JC-62mmSiC-RM100
