ACPL-355JC Reference Manual
62-mm SiC Module EB1200M62-355JC Evaluation Board

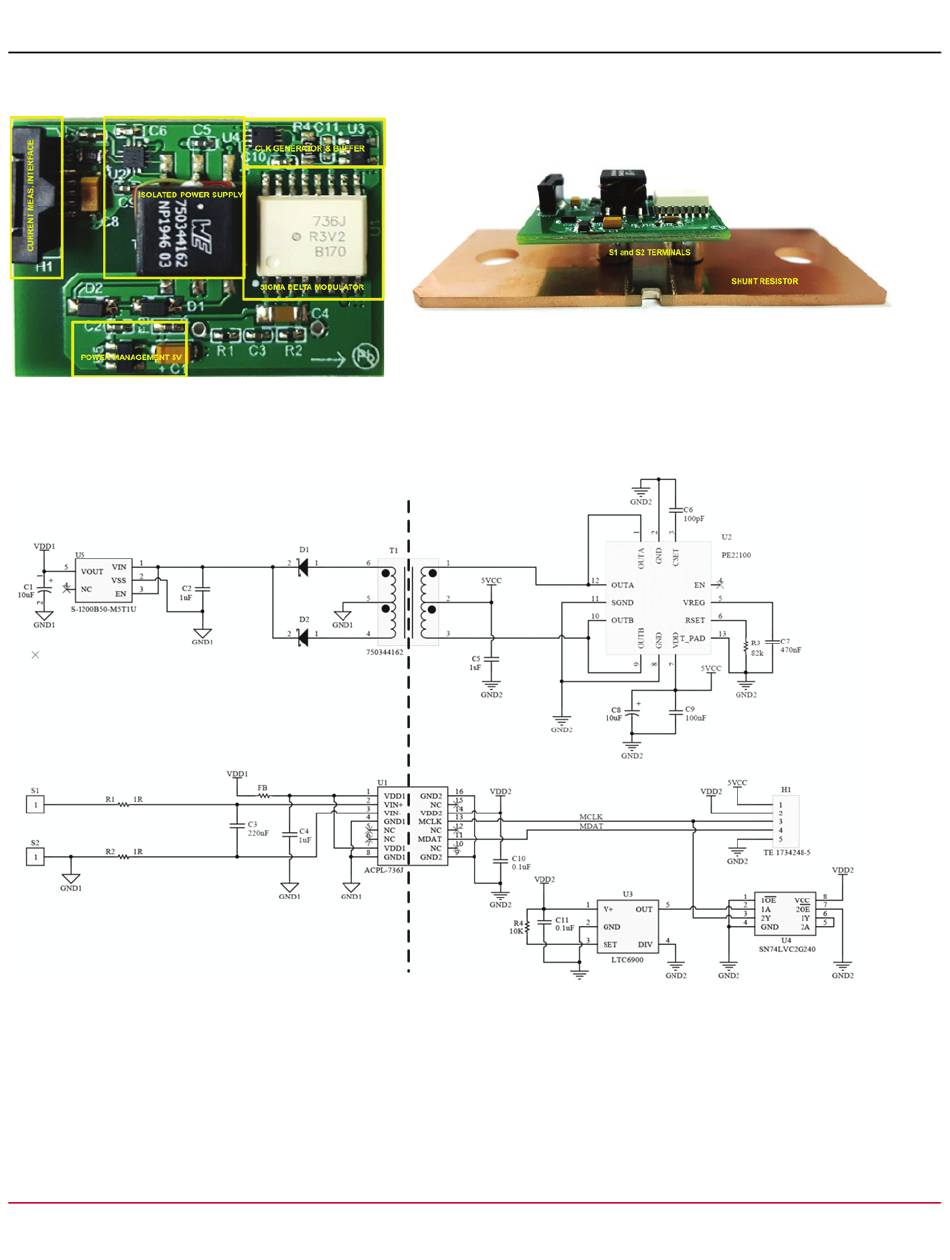

Figure 26: Functional Blocks Disposition of the ACPL-736J Current Sensing Module
Figure 27: Connector J3 Schematic of the ACPL-736J Current Sensing Module
The ACPL-736J is a 1-bit, second-order sigma-delta modulator that converts an analog input signal into a high-speed data
stream with galvanic isolation based on optical coupling technology. The ACPL-736J operates from a 3.3V or 5V power
supply with a dynamic range of 80 dB.
Broadcom
ACPL-355JC-62mmSiC-RM100
30
