ACPL-355JC Reference Manual 62-mm SiC Module EB1200M62-355JC Evaluation Board

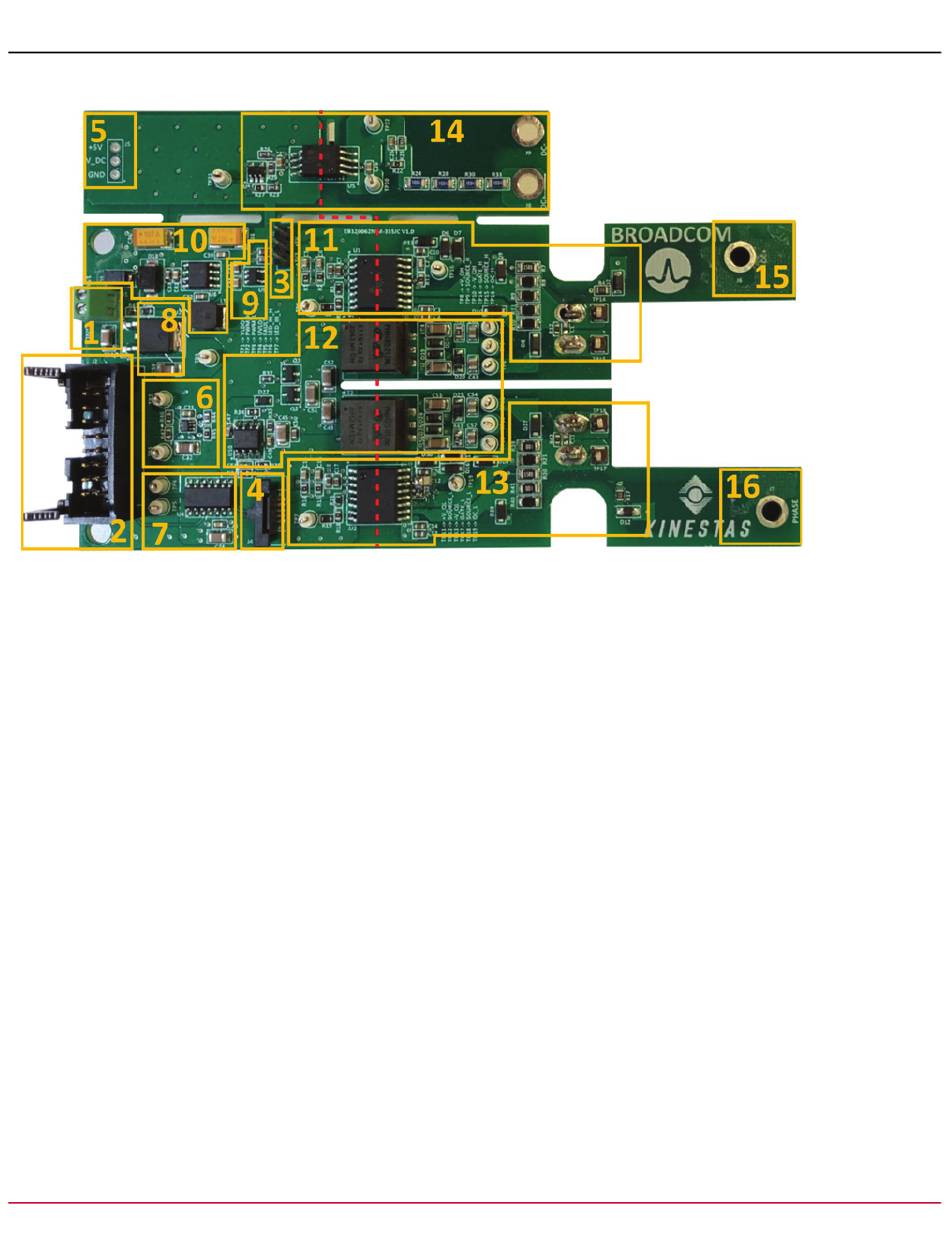

Figure 3: Disposition of the EB1200M62-355JC Functional Blocks. The Isolation Border Is Marked in Red.
According to Figure 3, the marked functional blocks are as follows:
1. J1 – Auxiliary connector input 15V
2. J2 – Signal connector
3. J3 – Voltage level selector 3.3V/5V for current measurement interface
4. J4 – Current measurement interface
5. J5 – Voltage measurement stand-alone supply
6. PWM buffering
7. MCLK and MDATA buffering for ACPL-736J current sensing module
8. Adjustable LDO
9. Switched power supply 5V/3V3
10. Switched power supply 15V/5V
11. High-side SiC driver based on ACPL-355J
12. Isolated SMPS for gate drivers
13. Low-side SiC driver based on ACPL-355J
14. DC bus voltage measurement based on ACPL-C87B. J8/J9 – Terminal to positive/negative DC bus rail for voltage
measurement
15. J6 – Terminal to high-side switch drain connection for OC detection
16. J7 – Terminal to low-side switch drain connection for OC detection
