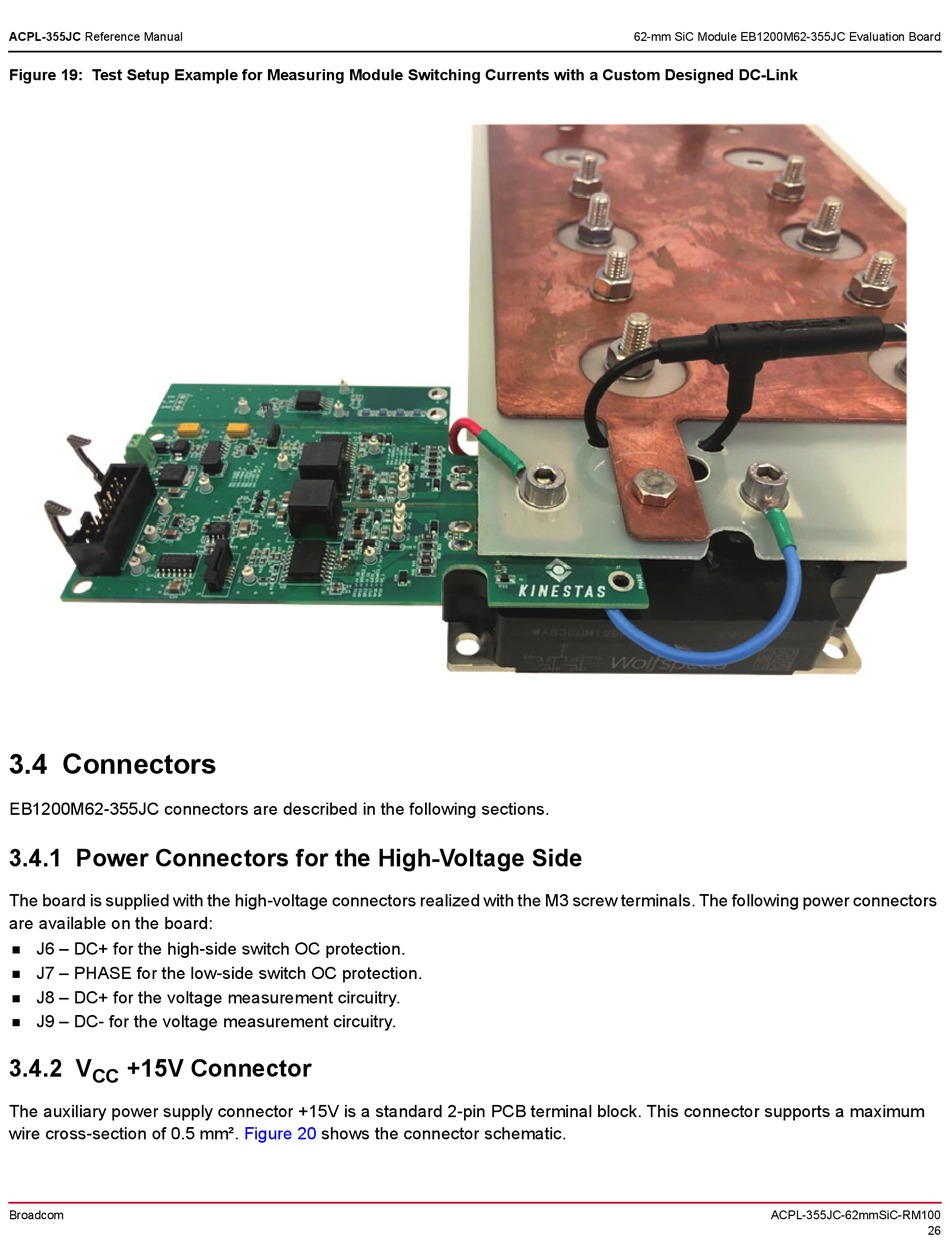

Figure 19: Test Setup Example for Measuring Module Switching Currents with a Custom Designed DC-Link

3.4 Connectors

EB1200M62-355JC connectors are described in the following sections.

3.4.1 Power Connectors for the High-Voltage Side

The board is supplied with the high-voltage connectors realized with the M3 screw terminals. The following power connectors
are available on the board:
J6 – DC+ for the high-side switch OC protection.

J7 – PHASE for the low-side switch OC protection.

J8 – DC+ for the voltage measurement circuitry.

J9 – DC- for the voltage measurement circuitry.

3.4.2 V +15V Connector
CC
The auxiliary power supply connector +15V is a standard 2-pin PCB terminal block. This connector supports a maximum
wire cross-section of 0.5 mm².
Broadcom
Figure 20 shows the connector schematic.
