ACPL-355JC Reference Manual
62-mm SiC Module EB1200M62-355JC Evaluation Board
Chapter 3: Circuit Description
This chapter provides in-depth insight into the EB1200M62-355JC gate driver evaluation board features.
3.1 Power Management

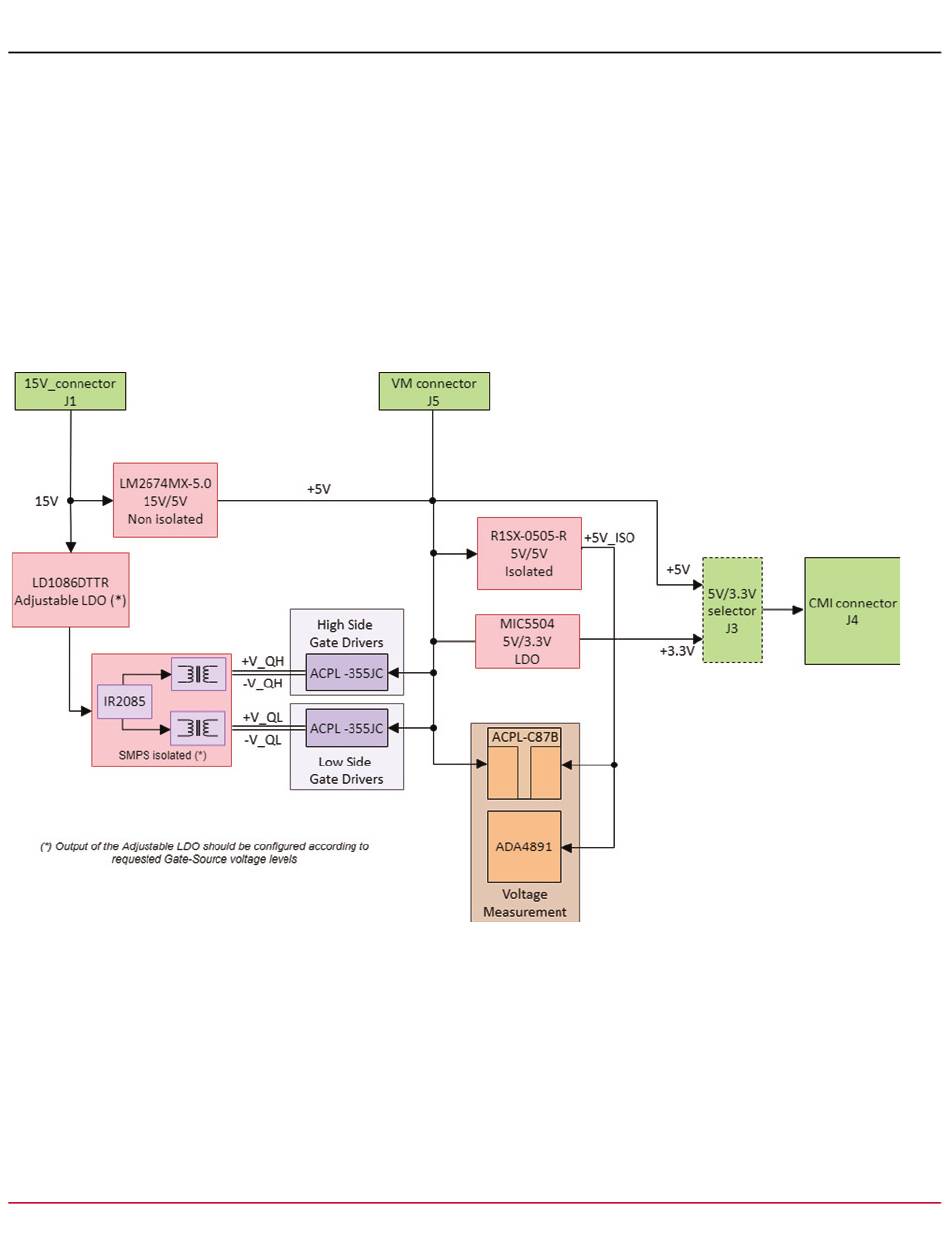

Figure 4
shows the auxiliary power management block diagram of the EB1200M62-355JC. By default, the evaluation board
is supplied from an external +15V source.
Figure 4: Power Management Block Diagram
Broadcom
ACPL-355JC-62mmSiC-RM100
