ACPL-355JC Reference Manual
62-mm SiC Module EB1200M62-355JC Evaluation Board

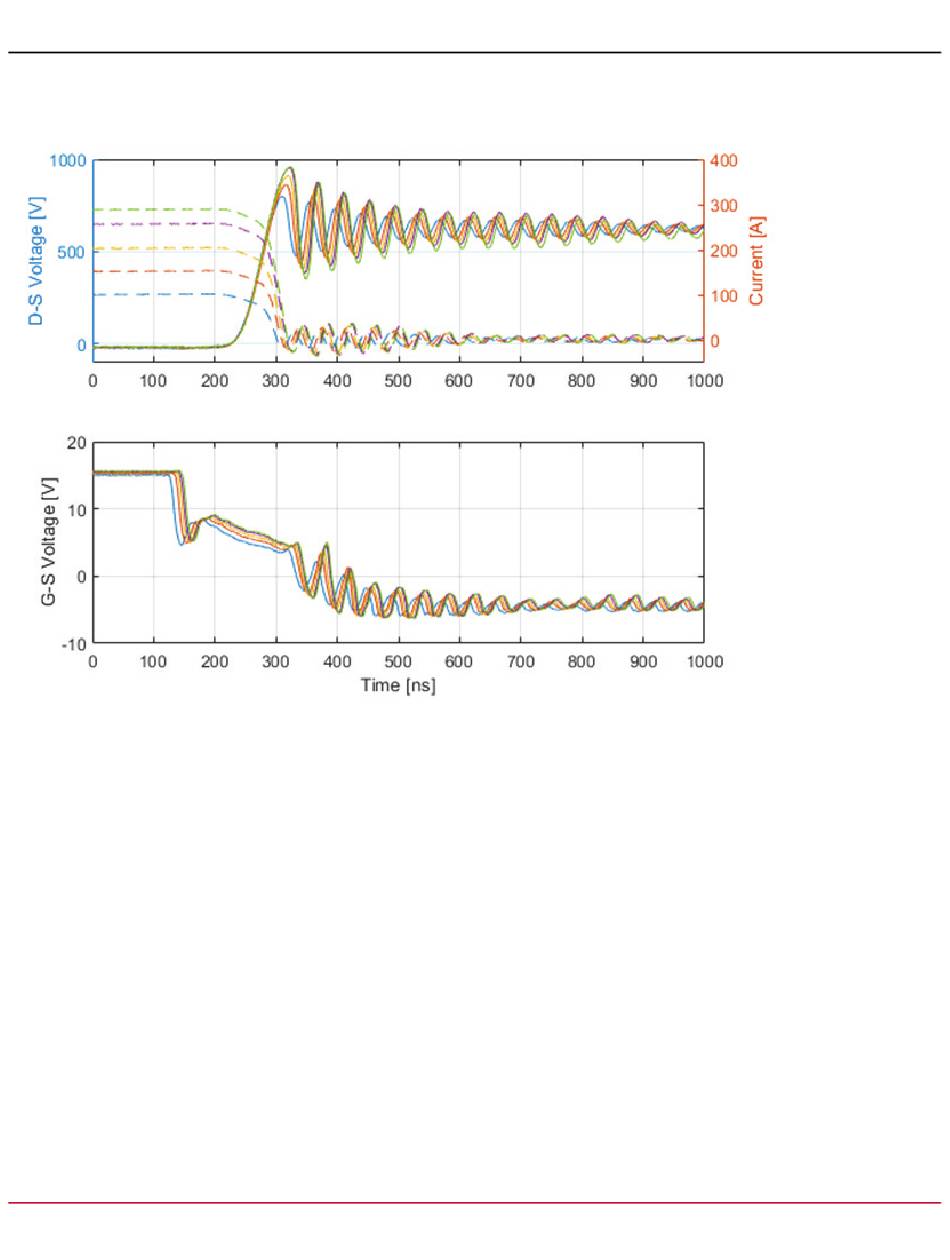

Figure 34: Characteristic waveforms during the turn-off switching transients at different load currents. In the upper diagram,
voltage waveforms are depicted with solid lines, and current waveforms are depicted with dashed lines.
Broadcom
ACPL-355JC-62mmSiC-RM100
39
