ACPL-355JC Reference Manual
62-mm SiC Module EB1200M62-355JC Evaluation Board

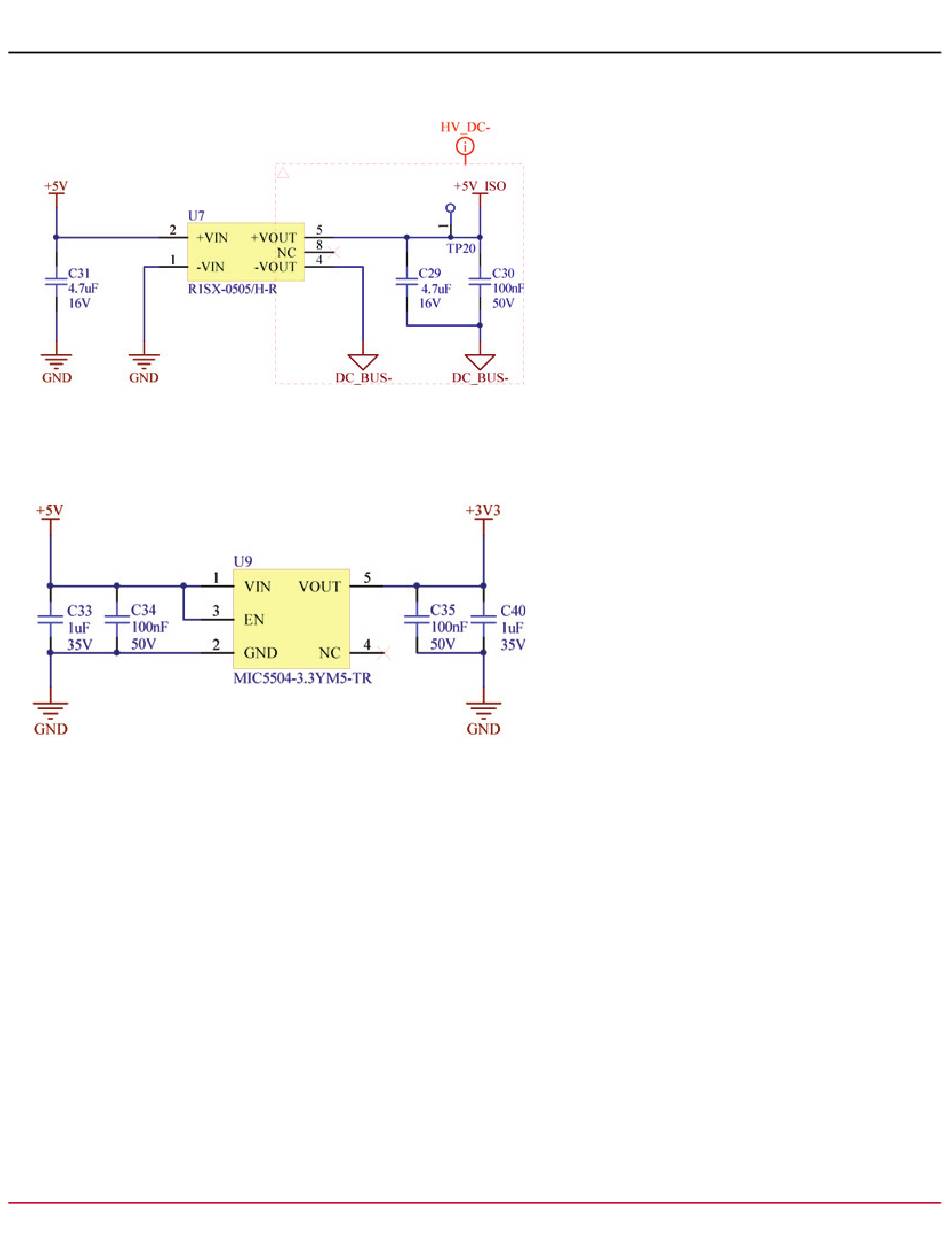

Figure 9: +5V to +5V_ISO Unregulated Isolated DC/DC Converter
Figure 10: +5V/+3V3 LDO
3.2 Gate Driver Circuit
This section deals with the gate driver circuitry on the EB1200M62-355JC. A description of related features and
functionalities is presented in the following subsections.
Figure 11
shows the gate drive circuitry.
Broadcom
ACPL-355JC-62mmSiC-RM100
17
