ACPL-355JC Reference Manual

62-mm SiC Module EB1200M62-355JC Evaluation Board

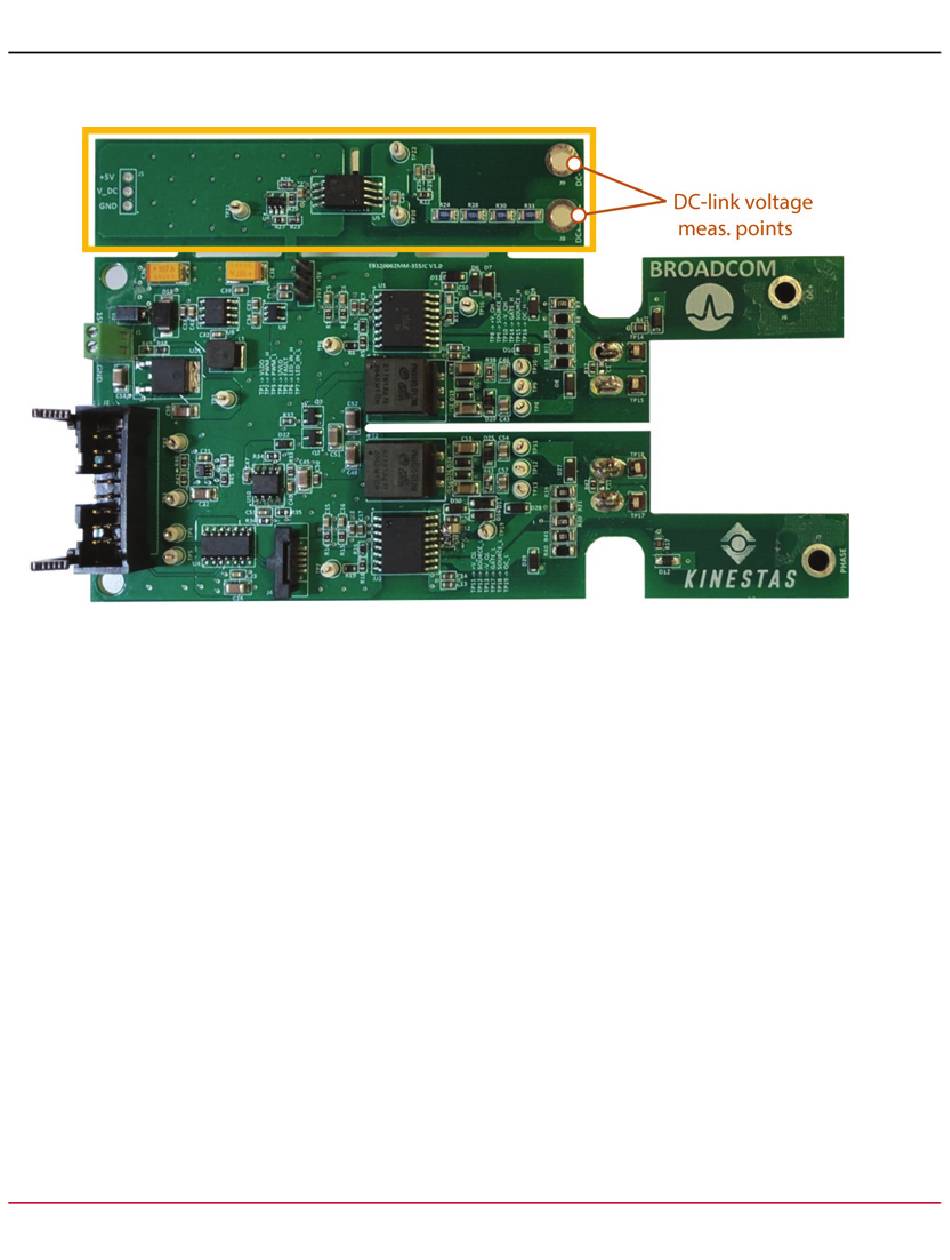

Figure 18: Detachable DC Bus Voltage Measurement Circuit Outlined in Yellow

NOTE:

Please take care with the polarity of the DC bus voltage connected to the measurement circuit!

3.3.2 Example Test Setup for Switching Current Measurement

For measuring the switching current with a Rogowski coil, provisions can be made when designing the DC-link circuit for

testing/application. One such example, used for performing tests presented in this document, is shown in

Figure

19.

Broadcom

ACPL-355JC-62mmSiC-RM100
