Connectors
This section describes the connector functionality and provides informa-
tion about mating connectors.

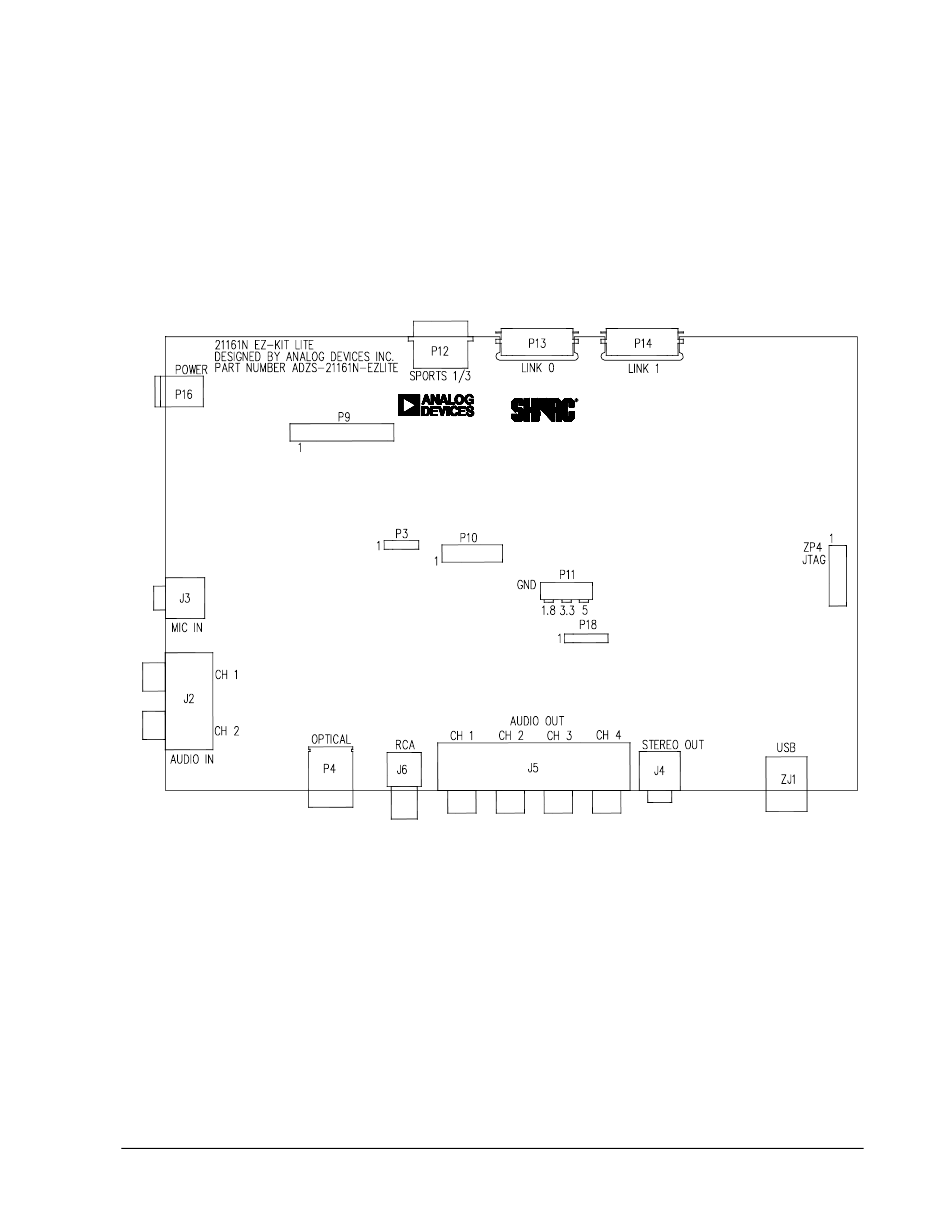

Figure 2-4. Connector Locations
USB Connector (ZJ1)
The USB connector (
ADSP-21161N EZ-KIT Lite Evaluation System Manual
www.BDTIC.com/ADI
ADSP-21161N EZ-KIT Lite Hardware Reference
Figure 2-4
) is a standard Type B USB receptacle.
ZJ1
shows the connector locations.
2-17
