Default Configuration
To connect the EZ-KIT Lite board:
1. Remove the EZ-KIT Lite board from the package. Be careful when
handling the board to avoid the discharge of static electricity,
which may damage some components.
2.
Figure 1-1
locations, and LEDs used in installation. Confirm that your board
is set up in the default configuration before continuing.

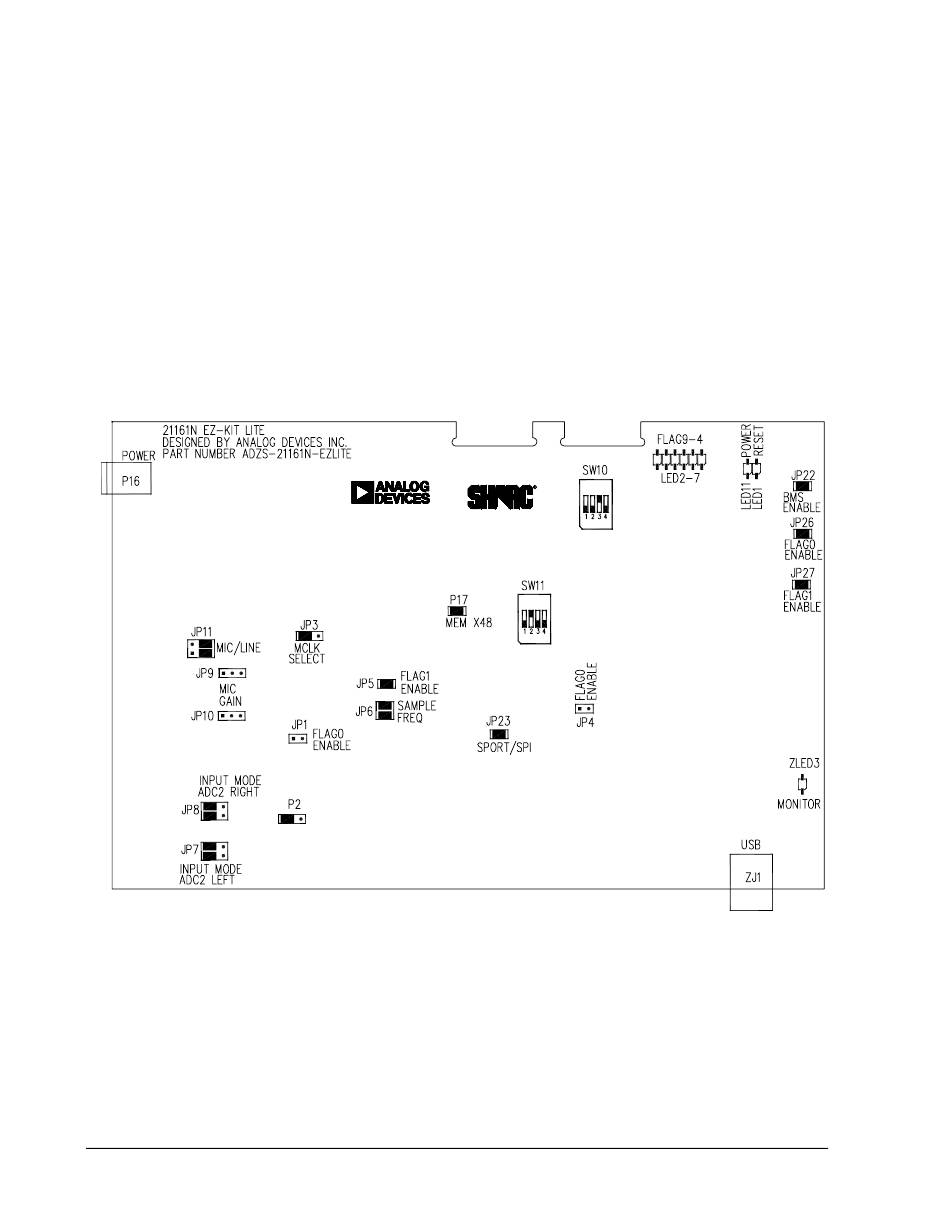

Figure 1-1. EZ-KIT Lite Hardware Setup
1-4
www.BDTIC.com/ADI
shows the default jumper settings, switches, connector
ADSP-21161N EZ-KIT Lite Evaluation System Manual
