7.3 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the
procedures below and still need assistance, refer to the
Returning Merchandise for Service
changing any non hot-swap hardware components.

General Technique

If you experience unstable operation or get no boot response, try:
1. With power off, remove all but one DIMM and other added components, such as add-on
cards, from the motherboard. Make sure the motherboard is not shorted to the chassis.
2. Set all jumpers to their default positions.
3. Power up. If the system boots, check for memory errors and add-on card problems.

No Power

•
Check that the power LED on the motherboard is on.
LEDPWR
•
Make sure that the power connector is connected to the power supply.
•
Check that the motherboard battery still supplies approximately 3VDC. If it does not,
replace it.
•
Check that the system input voltage is 100-120VAC or 180-240VAC.
•
Turn the power switch on and off to test the system
section(s) in this chapter.
JUIDB1
VGA
MH1
BT1
JBT1
CMOS CLEAR
MH15
MH6
MH9

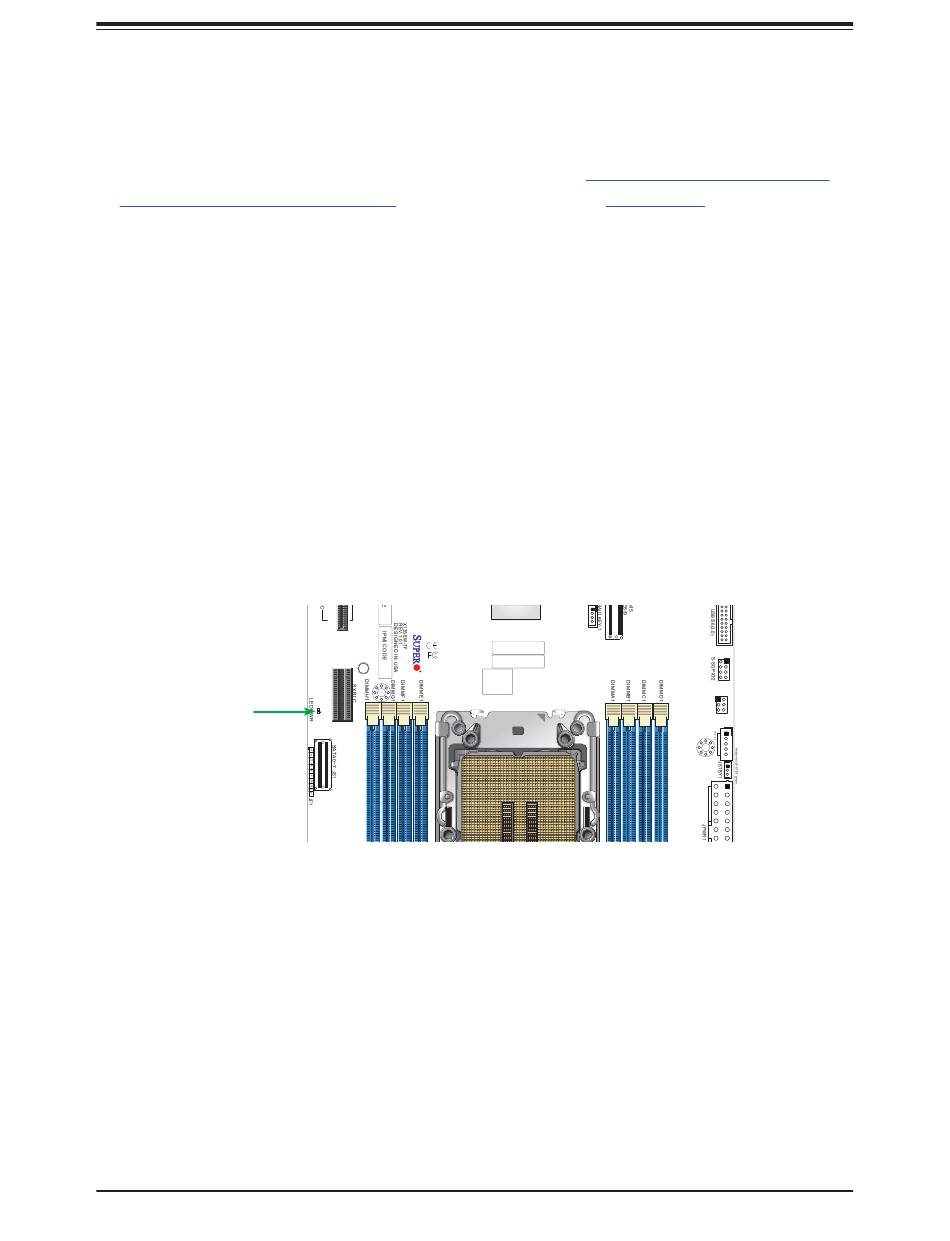

Figure 7-3. Location of the MB Power LED
