Chapter 3: Maintenance and Component Installation

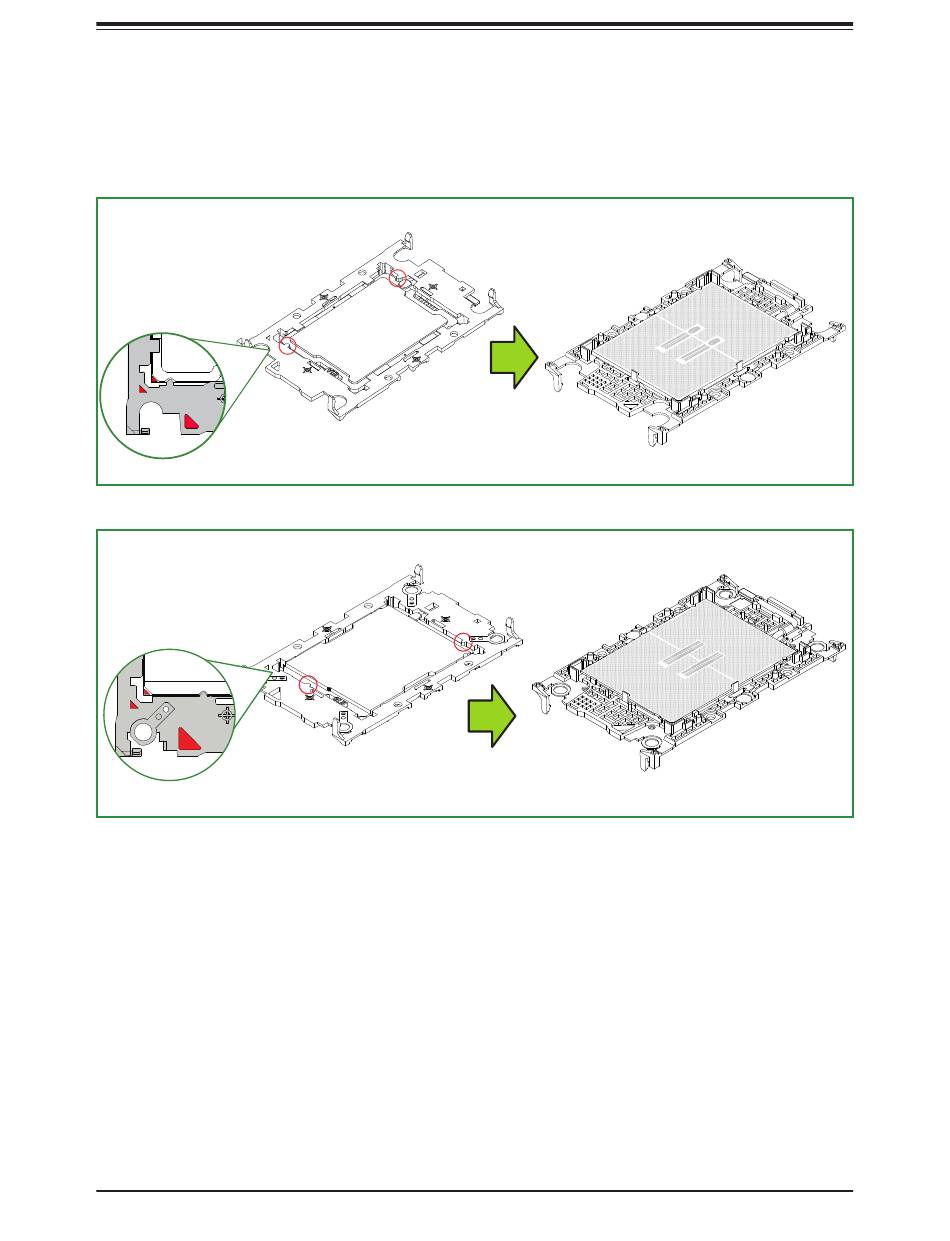

6. After the processor is placed inside the carrier, examine the four sides of the processor,
making sure that the processor is properly seated on the carrier.
SP XCC
(Top View)
(Component View)
CPU Carrier Assembly
SP MCC
(Component View)
(Top View)
CPU Carrier Assembly
