Removing the Processor Carrier Assembly from the PHM

To remove the processor carrier assembly from the PHM, please follow the steps below:

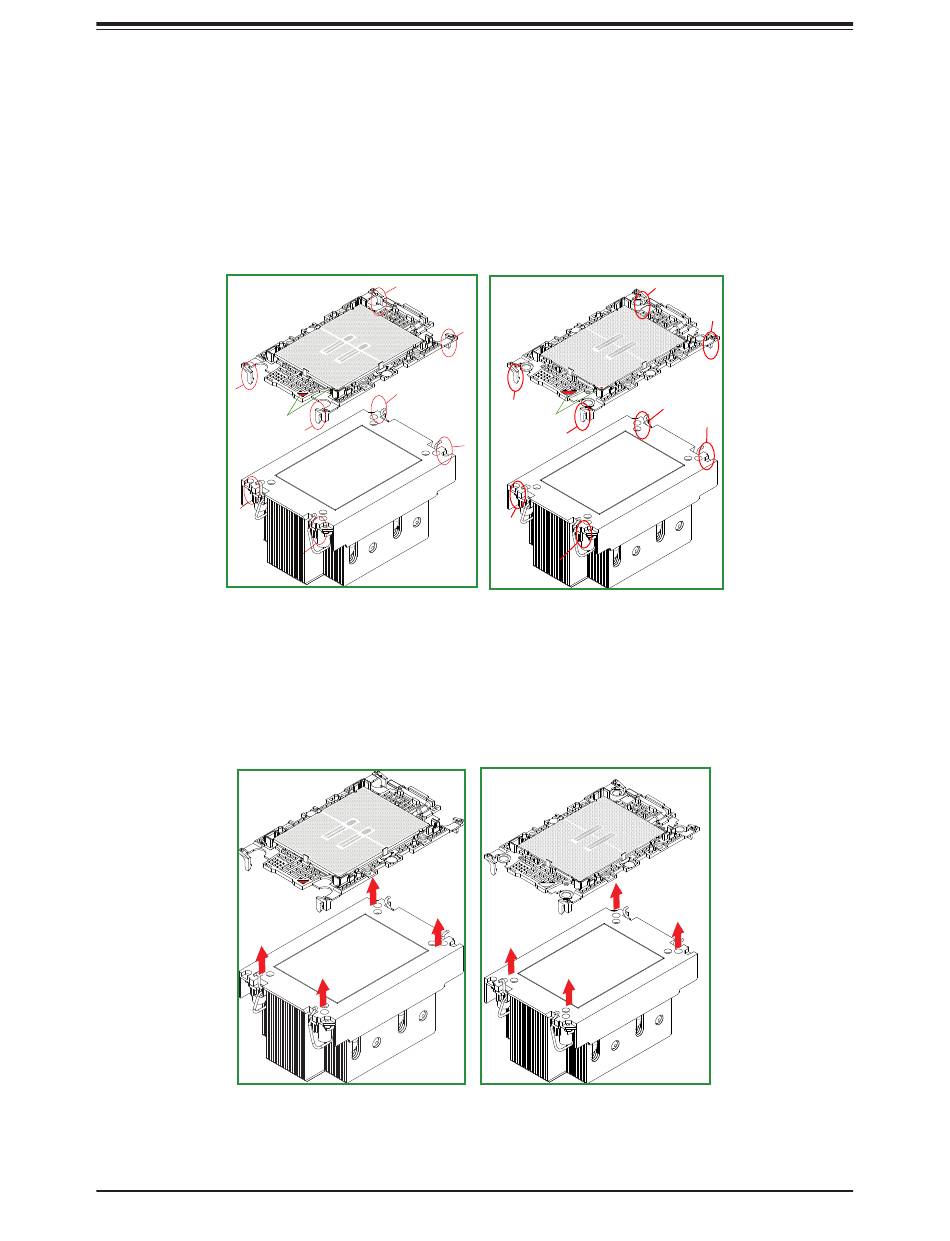

1. Detach the four plastic clips (marked a, b, c, d) on the processor carrier assembly from
the four corners of the heatsink (marked A, B, C, D) as shown in the drawings below.
2U Heatsink (View of Component Side and Heatsink Bottom Side)
c
Pin 1
a
C
A
2. When all plastic clips are detached from the heatsink, remove the processor carrier
assembly from the heatsink.
2U Heatsink (View of Component Side and Heatsink Bottom Side)
Chapter 3: Maintenance and Component Installation
b
d
B
D
SP XCC
SP XCC
43
b
c
B
Pin 1
a
C
A
SP MCC
SP MCC
d
D
