2.5 Installing the Chassis into a Rack

1. Extend the outer rails as illustrated below.
2. Align the inner rails of the chassis with the outer rails on the rack.
3. Slide the inner rails into the outer rails, keeping the pressure even on both sides. When
the chassis has been pushed completely into the rack, it should click into the locked
position.
F.
4. Optional screws may be used to secure the front of the chassis to the rack.
Note: The figure above is for illustration purposes only. Always install servers to the bottom
SCREW of the rack first.
1
Note: The figure above is for illustrative purposes only. Always install servers at the bottom
of the rack first.
Slide rail mounted equipment is not to be used as a shelf or a work space.
Stability hazard. The rack stabilizing mechanism must be in place, or the rack must
be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the
rack can cause the rack to tip over.

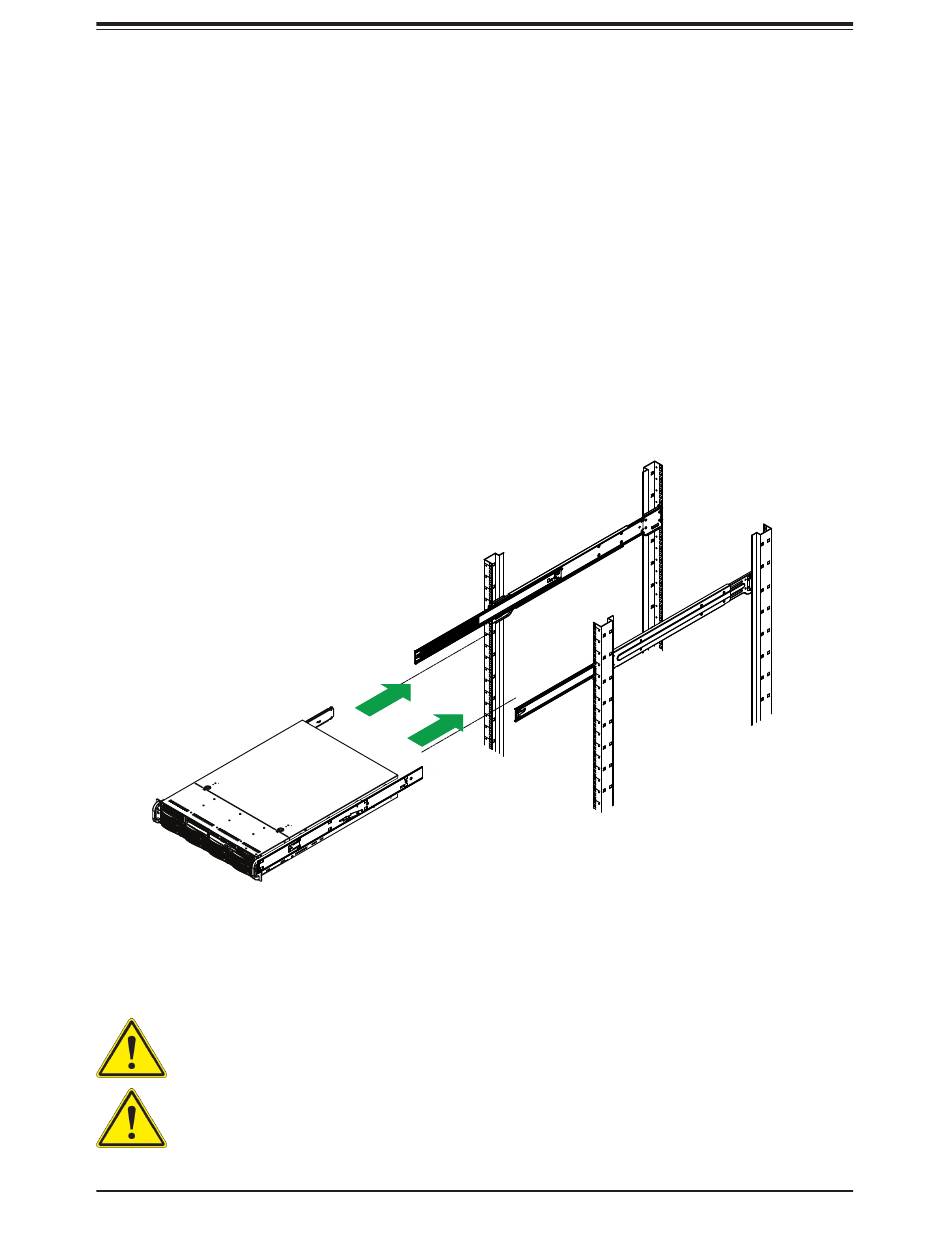

Figure 2-5. Installing the Server into the Rack
