Rear View
Power Supplies
Optional 2.5" Drive Bays
(Requires Installation)
Feature
Description
Power Supplies
Two redundant power supply modules, PWS1 on the top and PWS2 on the bottom.
LAN Ports
Two 1G LAN and one dedicated BMC LAN port
USB Ports
Two rear USB 3.2 Gen 1 ports, two rear USB 2.0 ports
COM Port
Serial COM port
VGA Port
Video port
UID LED
Unit identifier LED
Drive Bays
Two 2.5" hot-swappable drive bays after installing a drive kit. Drive kit not included.
Item
Description
1
One PCIe 5.0 x16 full-height full-length expansion slot
3
One PCIe 5.0 x16 full-height full-length expansion slot
5
One PCIe 5.0 x8 low-profile expansion slot
6
One PCIe 5.0 x8 low-profile expansion slot
Dedicated BMC LAN Port

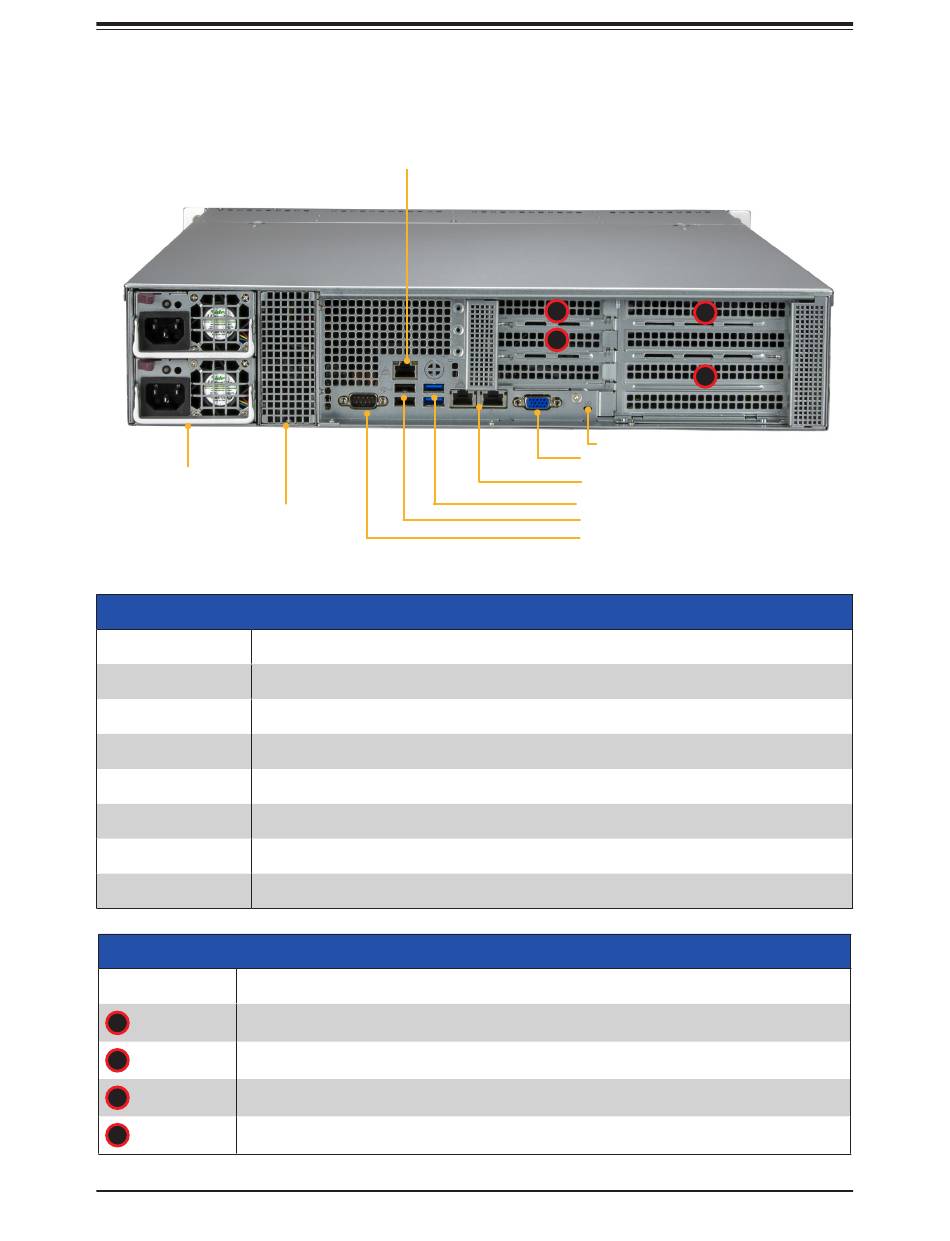

Figure 1-3. System: Rear View
System Features: Rear
Expansion Slot Locations
13
Chapter 1: Introduction
5
1
6
3
UID LED
VGA Port
Two 1G LAN Ports
Two USB 3.2 Gen 1 Ports
Two USB 2.0 Ports
COM Port
