Installing the Outer Rails

Outer rails attach to the rack and hold the chassis in place. The outer rails for the CSE-825B2TS
chassis extend between 30 inches and 33 inches.
Installing the Outer Rails
1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks on the front of the outer rail onto the square holes on the front of the
rack. If desired, use screws to secure the outer rails to the rack.
4. Pull out the rear of the outer rail, adjusting the length until it just fits within the posts of
the rack.
5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of
the rack. Take care that the proper holes are used so the rails are level. If desired, use
screws to secure the rear of the outer rail to the rear of the rack.
1
2

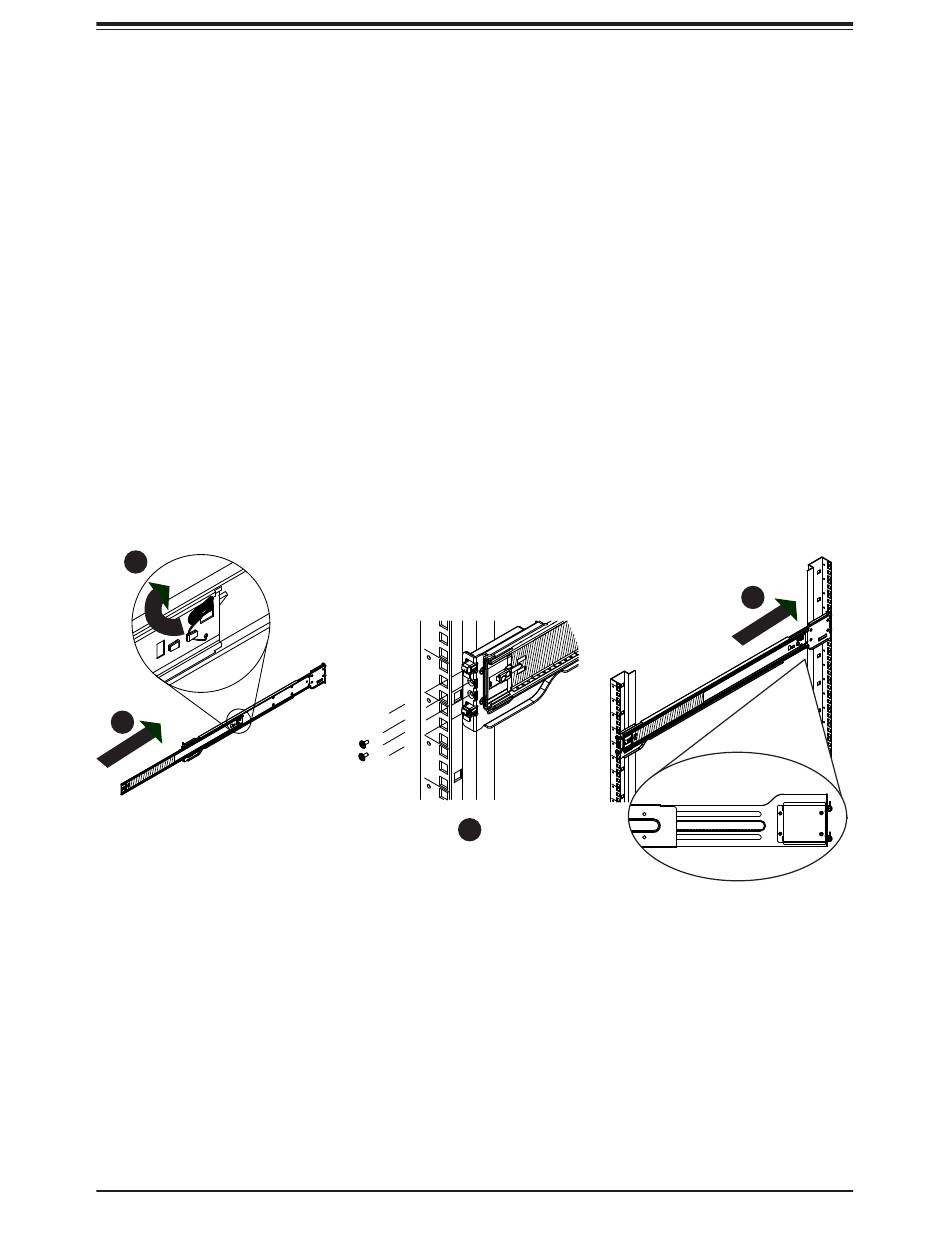

Figure 2-4. Installing the Outer Rails to the Rack
L-min=676.00(26.61")(outer rail)
21D01
3
