4.4 Other XRC Features

4.4.1 Register Control

The following steps must be performed to use XRC Register Control:
1. Select Tools -> Register Control
2. Enter the Device Address in HEX (see Figure 6)
3. Enter the desired register address in HEX
4. Press the "Write" button to write a value to the selected register
5. Press the "Read" button to read a value from the selected register

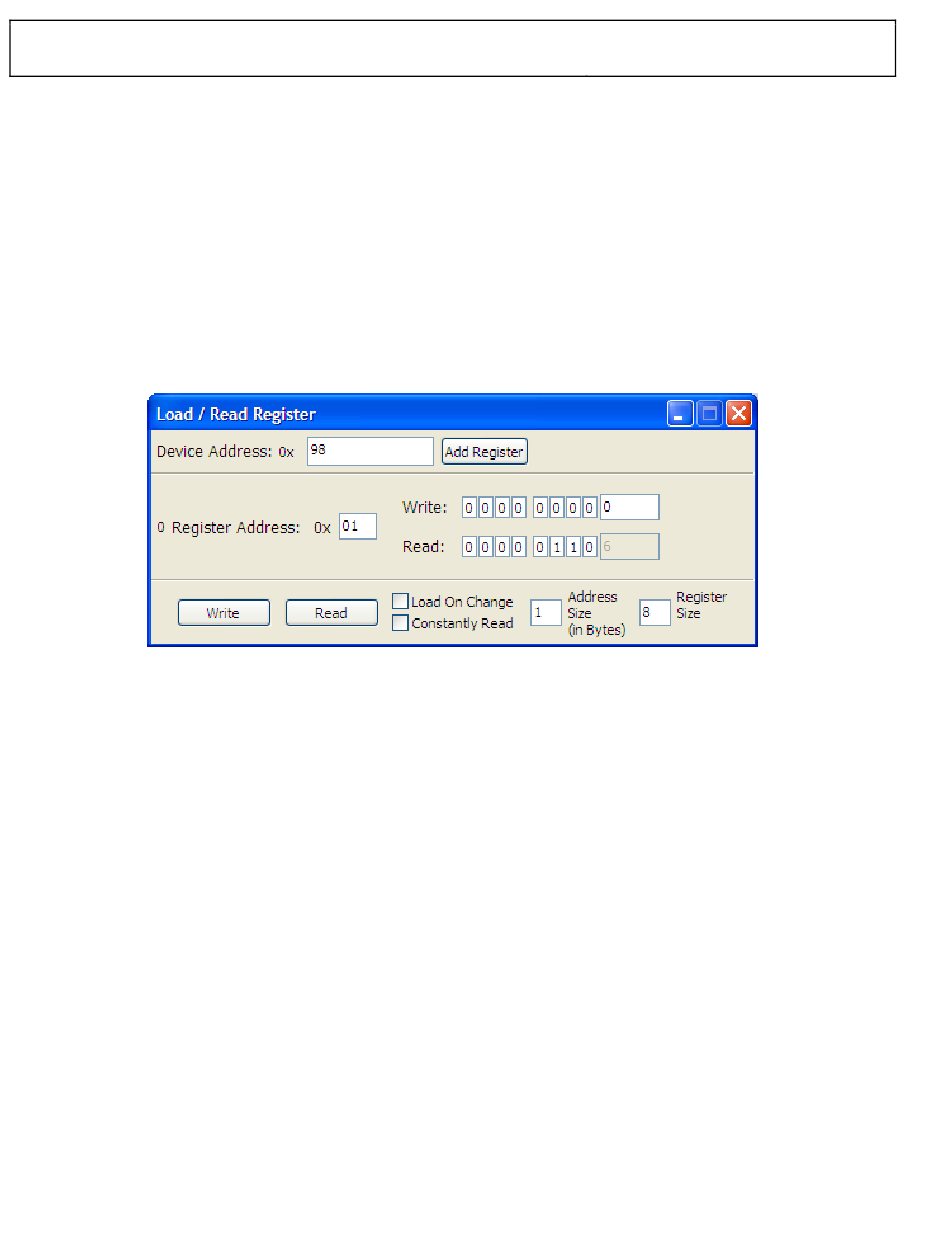

Figure 6 - register control window
