10. Appendix 5 – Software Driver Controls
When using the software driver, please connect a UART terminal e.g. Hyperterminal or TeraTerm for
feedback on the status of the software driver.
Please use the following commands to interface with the software driver
? Print help
help Print help
amute Mute audio output <on or off>
arctx ARC TX mode <on or off>
avmute Send AVMUTE <on or off>
cec CEC support <on or off>
dbg Select debug output [rx] [tx] [hdcp] [edid] [cec] [int] [none] [all]
dbg+ Same as dbg command with output addition
dbg- Same as dbg command with output removal
enc Output encryption <on, off or us(same as upstream)>
fs Fast switching <on or off>
i2cr i2c read <device> <register> <byte count>
i2cw i2c write <device> <register> <value>
i2cand i2c AND register with value <device> <register> <value>
i2cor i2c OR
i2cxor i2c XOR register with value <device> <register> <value>
i2cdbg i2c debug <device addr, dev addr, ...>
memr Read memory <address(32-bit aligned)>
memw Write memory <address(32-bit aligned)> <value>
mode Set operating mode <rec, rep, xmt or auto>
mute Set mute mode <man or auto>
mtime Set mute times in ms <For TMDS, For Blackout>

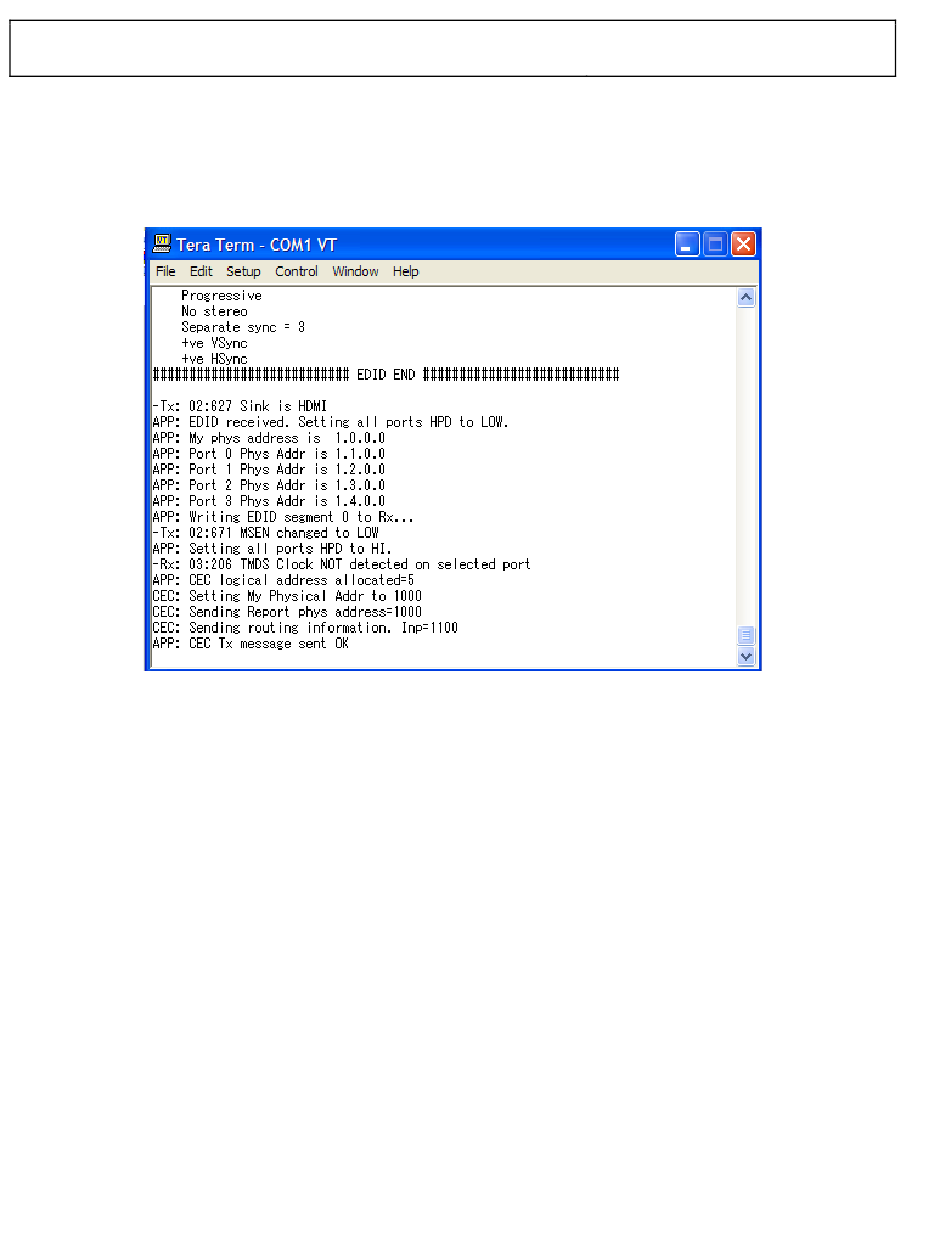

Figure 24 - Software Driver Feedback
register with value <device> <register> <value>
Rev. PrA Page 30 of 31
<byte count>
