One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Advantiv EVAL-ADV7612-7511 Video Evaluation Board
FEATURES
2 HDMI inputs, 1 HDMI output
PC communication via RS-232 or USB interface
Jumperable signal paths for audio and video (jumpers can
be removed and signals connected in a different manner)
EQUIPMENT NEEDED
Computer with RS-232 (or USB) I/O to accomplish the
following:
Send scripts to the board's command line interface
Send commands to the board's repeater software and view
software output
Control the board via Advantiv video evaluation software
(AVES) application
Update the board's firmware (if desired or necessary)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

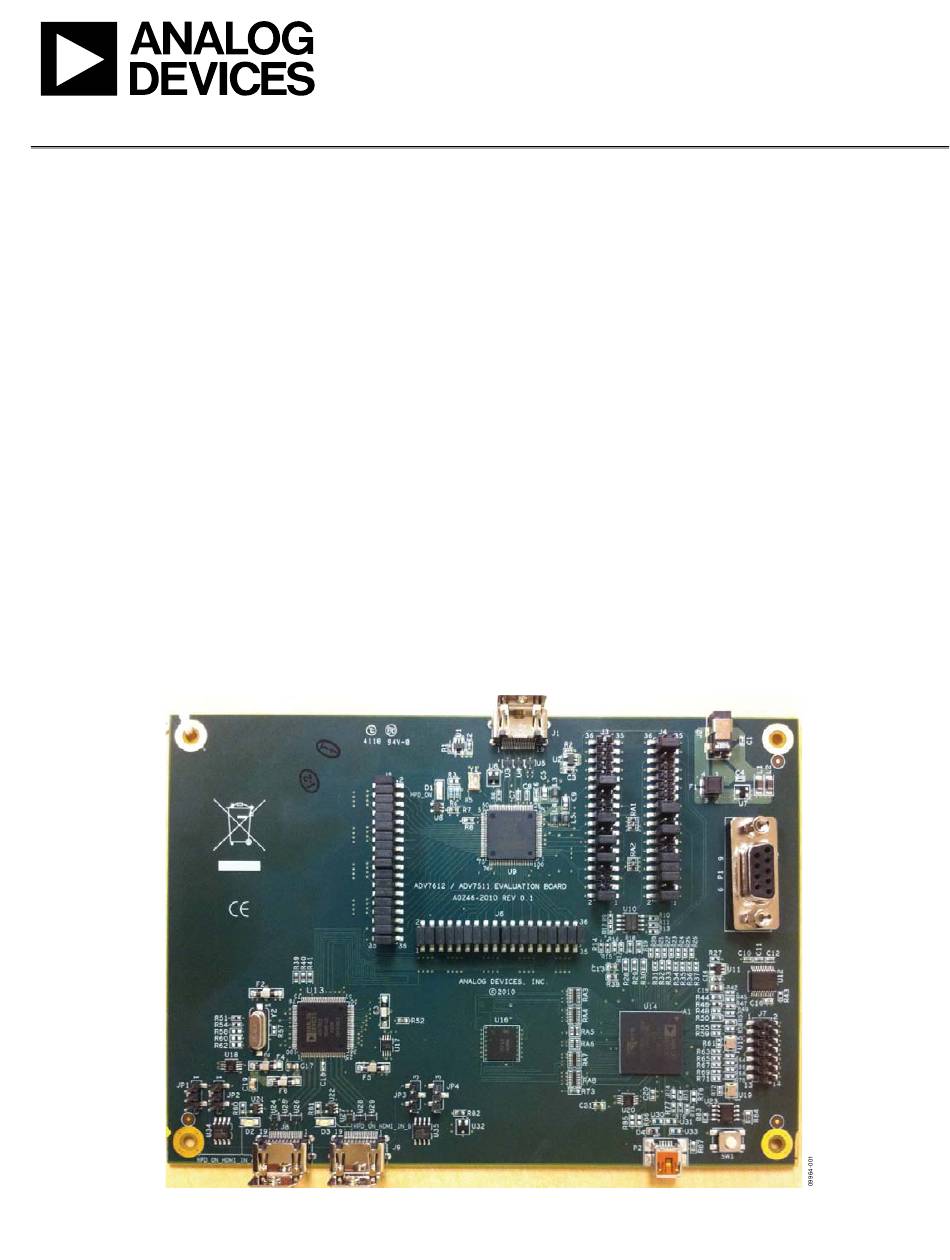

PHOTOGRAPH OF EVALUATION BOARD

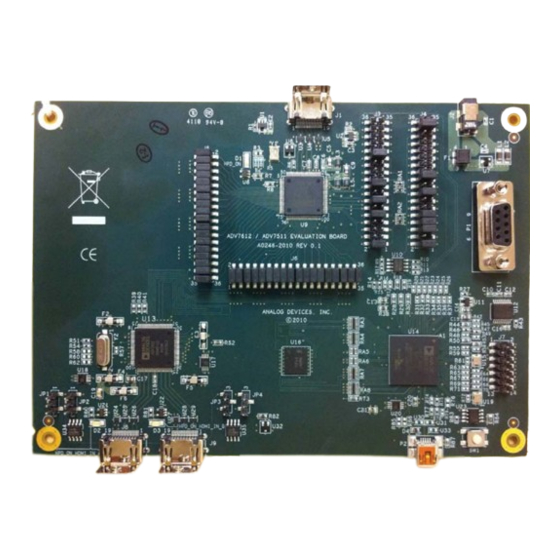

Figure 1. Advantiv EVAL-ADV7612-7511 Video Evaluation Board with Factory Jumper Settings
Evaluation Board User Guide
SOFTWARE NEEDED
Windows OS for controlling the board via AVES application
RS-232 software for updating the board firmware (if desired
or necessary)
GENERAL DESCRIPTION
The Advantiv® EVAL-ADV7612-7511 video evaluation board
(AVEB) is a low cost solution for evaluating the performance of
the
ADV7612
HDMI receiver and/or the ADV7511 HDMI
transmitter.
The evaluation board provides a Blackfin®
for system control. The
process audio (no audio software is included). The evaluation
board includes software (firmware) that provides a serial
command interface to control the board's functionality.
This evaluation board is available in two options.
•
With HDCP support (EVAL-ADV7612-7511), available
only to licensees of HDCP
•
Without HDCP support (EVAL-ADV7612-7511P)
Rev. 0 | Page 1 of 8
ADSP-BF524
ADSP-BF524
offers the potential to
UG-295
processor
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-ADV7612-7511
Summary of Contents for Analog Devices EVAL-ADV7612-7511
-
Page 1: Features
• Without HDCP support (EVAL-ADV7612-7511P) PHOTOGRAPH OF EVALUATION BOARD Figure 1. Advantiv EVAL-ADV7612-7511 Video Evaluation Board with Factory Jumper Settings PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. 0 | Page 1 of 8 WARNING AND LEGAL TERMS AND CONDITIONS. -
Page 2: Table Of Contents
UG-295 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Terminology ..................4 Equipment Needed................1 Evaluation Board Hardware.............5 Software Needed ................1 Evaluation Board Usage..............5 General Description ................. 1 Jumpers ...................6 ... -
Page 3: Evaluation Board Artwork And Components
Evaluation Board User Guide UG-295 EVALUATION BOARD ARTWORK AND COMPONENTS Figure 2. Assembly Drawing (Top Side) of the EVAL-ADV7612-7511 HDMI DIGITAL VIDEO 0.1 INCH INPUT A JUMPERS HDMI ADV7612 ADV7511 OUTPUT DIGITAL AUDIO 0.1 INCH HDMI JUMPERS INPUT B C-COMPATIBLE CONTROL BUS... -
Page 4: Terminology
UG-295 Evaluation Board User Guide TERMINOLOGY Sink Throughout this user guide, the following terms are used. A sink accepts video through a DVI/HDMI interface. This is Source nearly always a display with DVI/HDMI input in the context of A source outputs digital audio/video over a DVI/HDMI this user guide. -
Page 5: Evaluation Board Hardware
AVES If the board is HDCP-enabled, the Analog Devices, Inc., repeater AVES is a Windows®-based application that runs on a PC and software starts on power-up, allowing an HDMI sink to receive... -
Page 6: Jumpers
UG-295 Evaluation Board User Guide JUMPERS This evaluation board has all of the digital audio/video signals SPDIF_OUT 7612_INT2 (as well as some control signals) connected to 0.1 inch jumpers. 7511_INT 7612_INT1 This provides users with easy access and maximum flexibility 7612_CSn 7511_PD TFS0A_BF524... -
Page 7: Evaluation Board Software
Evaluation Board User Guide UG-295 EVALUATION BOARD SOFTWARE UPGRADING THE FIRMWARE At the prompt, type the following command: The software (firmware) on the evaluation board can be loady upgraded using the standard Blackfin development tools. You should see the following output: •... -
