Eval Note
4.2 Loading/Unloading Boards
4.2.1
Loading a Board
The following steps must be performed to start a new XRC session by loading a new board.
1.
Click "Choose Board..."
2.
From the Board Selector window, select your attached system e.g. "ADV7611" as RX, "None" for
MotherBoard and "ADV7511_ADV7341" for TX.
3.
Click "Load"
Note: If the board is standalone, select the board in whichever window it is populated under (i.e. RX,
Motherboard, TX) and leave the other windows at "None".
4.2.2
Unloading a Board
The following steps must be performed to end an XRC session by unloading the selected board.
1.
Select Files -> Unload Boards

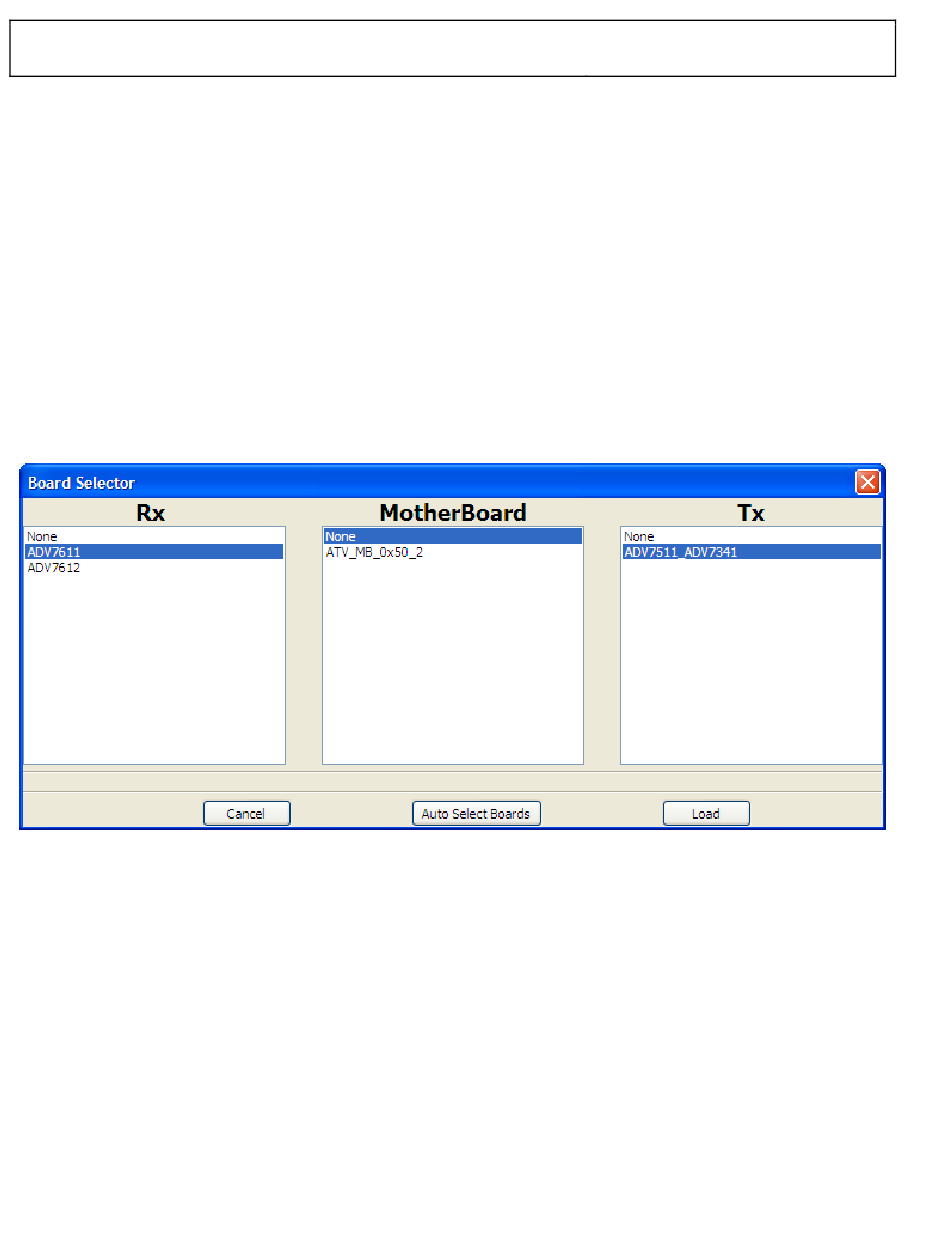

Figure 4 - Board Selector
Rev. PrA Page 6 of 31
