3. Initial Hardware Configuration

The ADV7611 evaluation board is a standalone evaluation platform used to demonstrate all features of the
ADV7611 receiver. To assemble the platform, connect the female connector of the 7.5V DC power supply
module supplied with the evaluation kit to the motherboard power connector, J8. To turn the evaluation
platform on, flick the power switch (S5) to position "ON". The green power LED (D8) should light.
Once the board is powered up, connect the USB cable supplied with the evaluation kit to USB connector,
J1. The platform should now resemble Figure 1 and is ready to use.

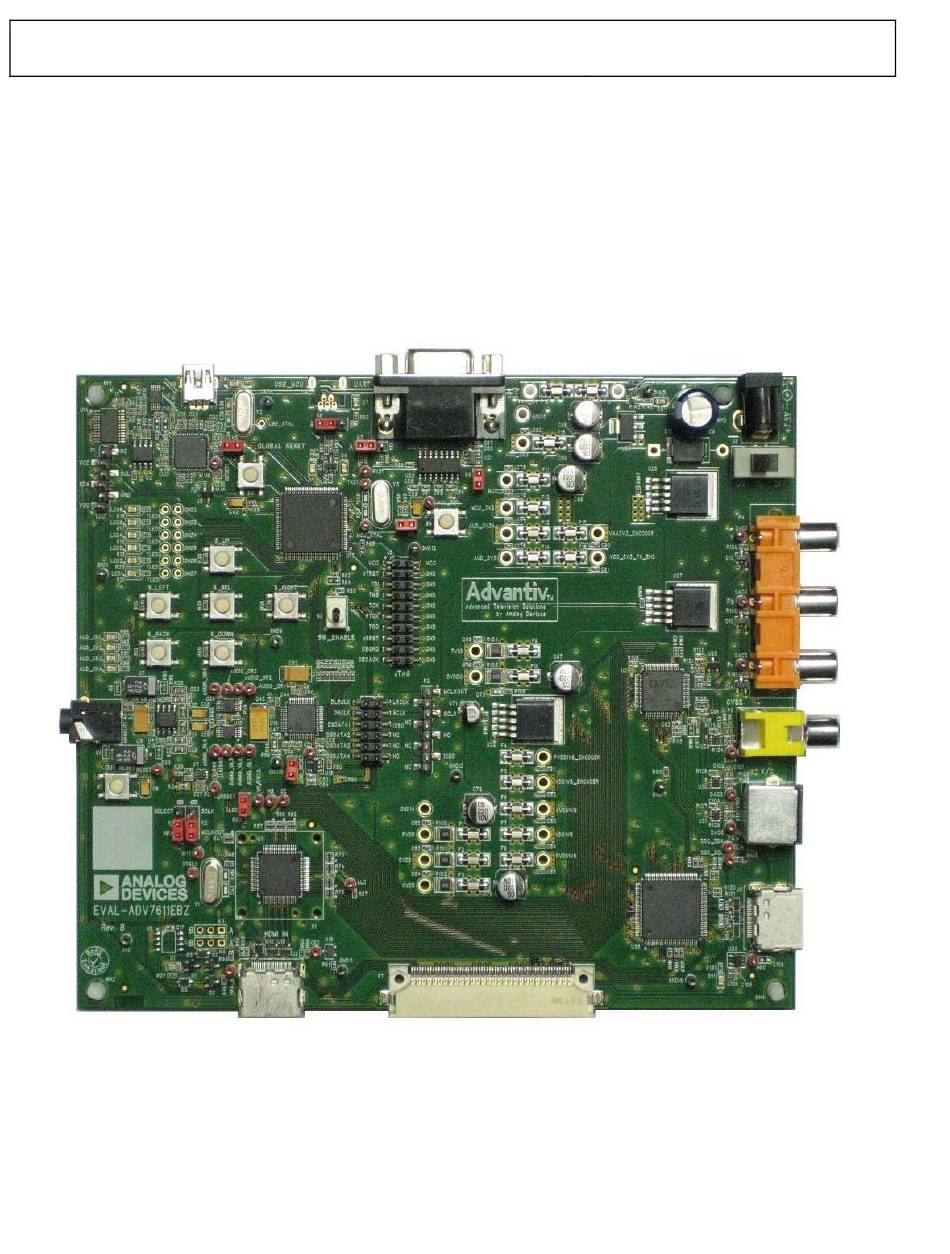

Figure 1 - ADV7611 Evaluation Platform
