alfen Eve Single Pro-line Installation Manual page 9
Ev charging stations
Hide thumbs
Also See for Eve Single Pro-line:
- Installation manual (38 pages) ,
- User manual (24 pages) ,
- Manual (36 pages)
Table of Contents
Advertisement

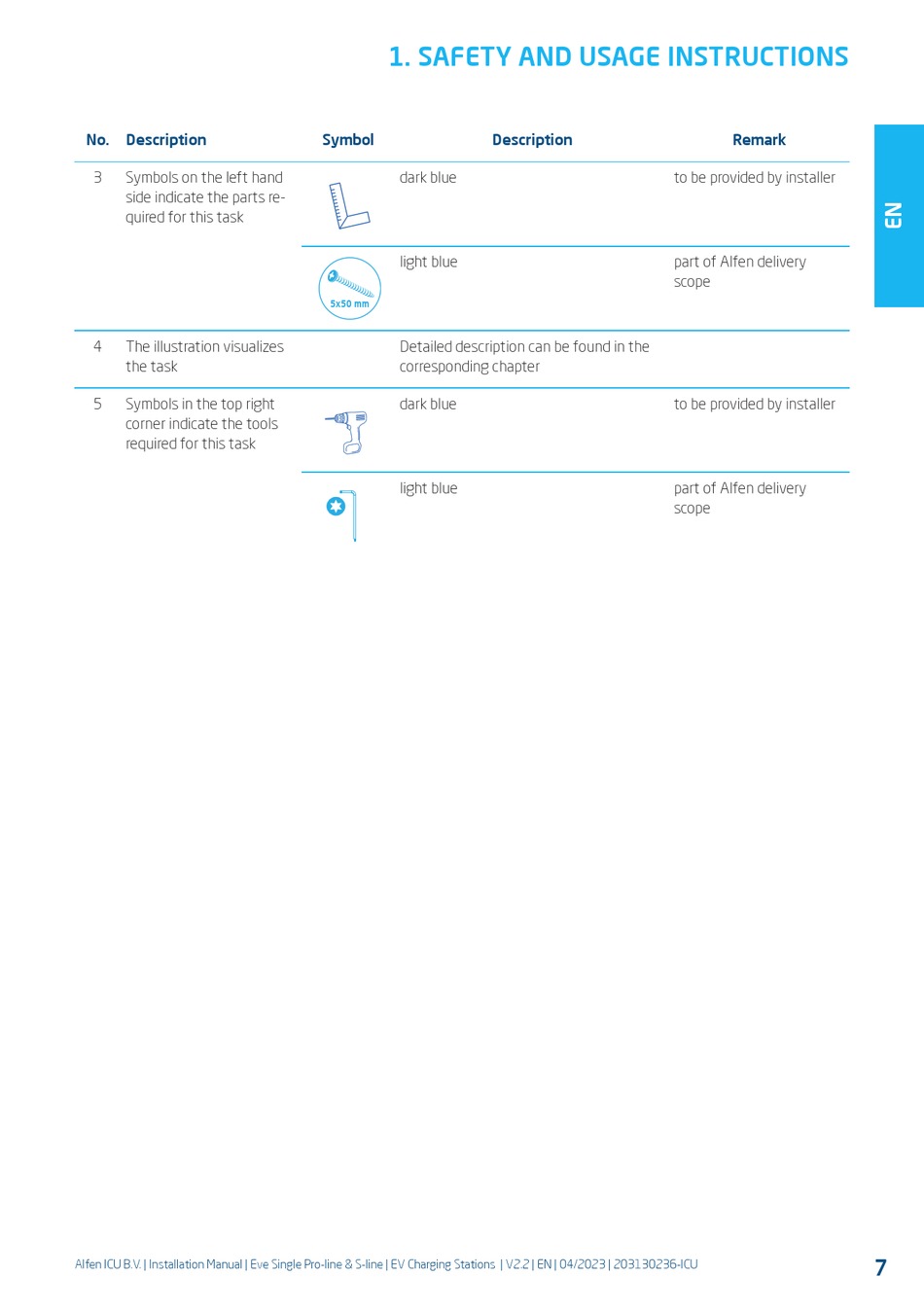

No. Description
3
Symbols on the left hand
side indicate the parts re-
quired for this task
4
The illustration visualizes
the task
5
Symbols in the top right
corner indicate the tools
required for this task
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
1. SAFETY AND USAGE INSTRUCTIONS
Symbol
Description
dark blue
light blue
5x50 mm
Detailed description can be found in the
corresponding chapter
dark blue
light blue
Remark
to be provided by installer
part of Alfen delivery
scope
to be provided by installer
part of Alfen delivery
scope
