3. INSTALLING AND CONNECTING
3.7 Electrical installation procedure
Make sure you know if the charging station needs to be installed as a 3-phase or single phase variant.
1.

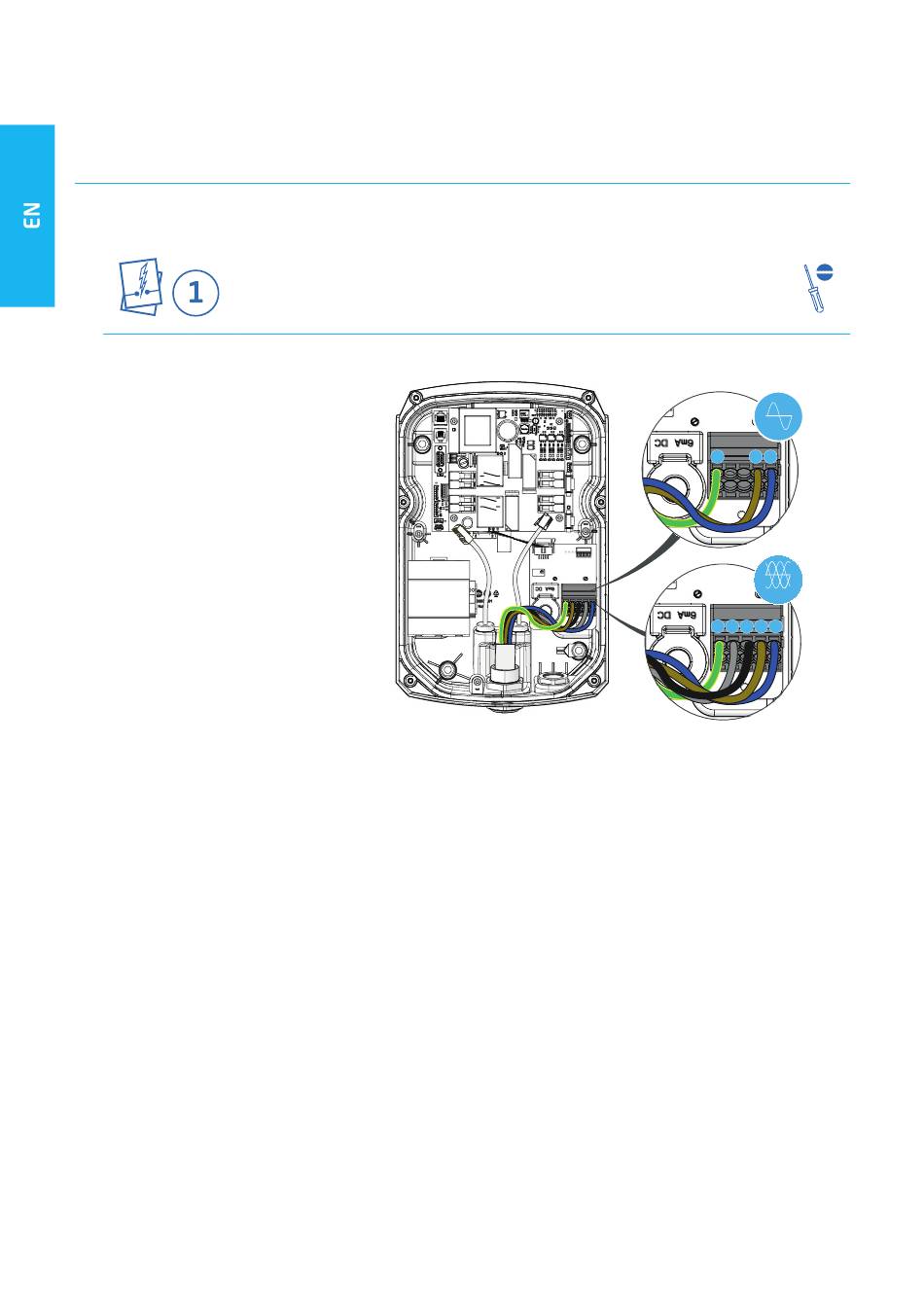

Connect the power cable to the terminal block according to your product variant 3-phase or single phase shown in the
illustration.
24
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
L1
PE
L1
N
L1 L2 L3
N
PE
L3
L2
L1
