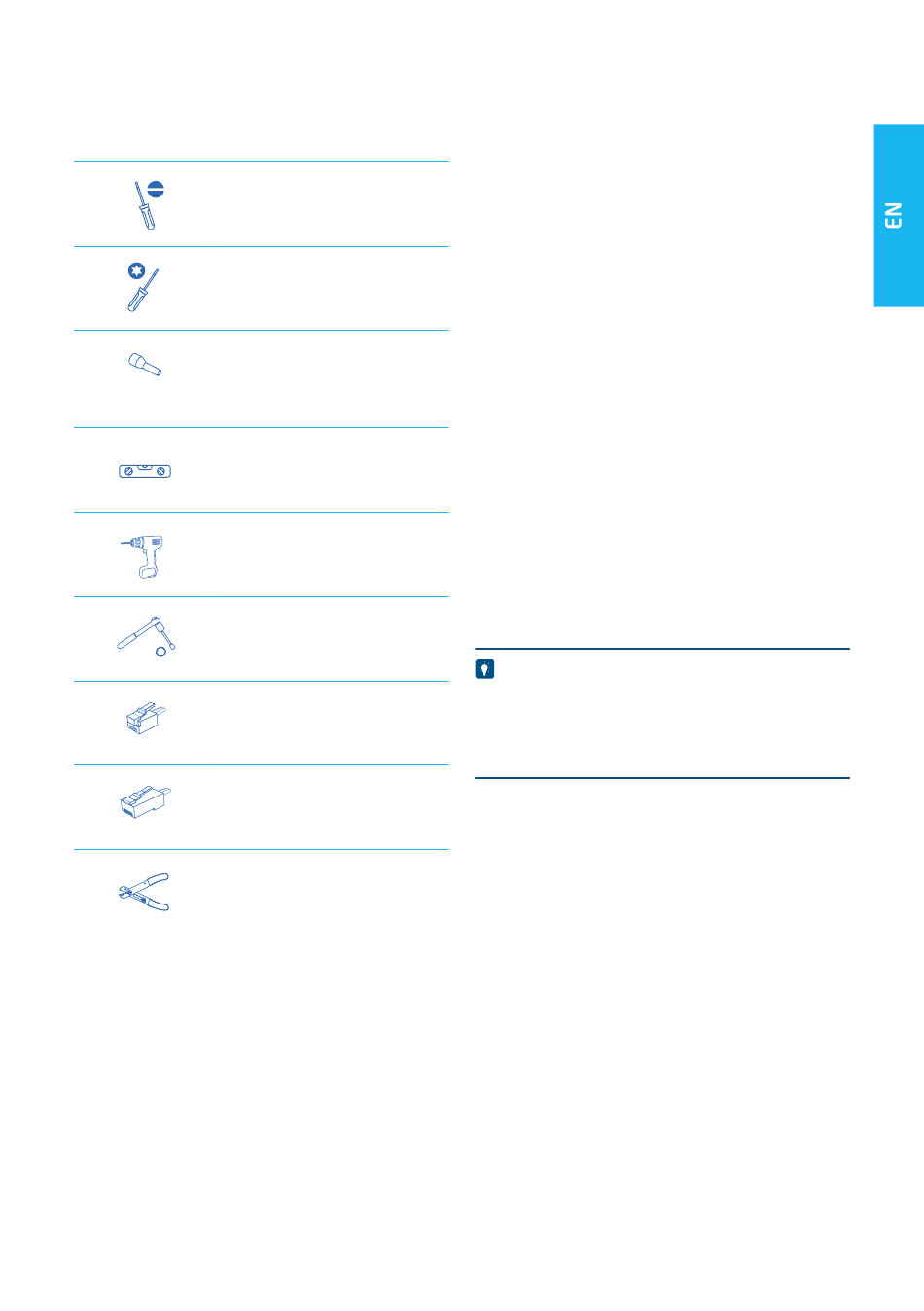

Symbol Description
Small and large flathead screwdriv-
er
T20 Torx driver
T20
Ferrules (the diameter of the fer-
rule depends on the diameter of
the power wiring and the construc-
tion)
Spirit level
Machine drill
Torque driver (for terminal block
connections)
RJ-11 connector
RJ-11
RJ-45 connector
RJ-45
Crimping tool
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
3. INSTALLING AND CONNECTING

3.5 Installation procedure prerequisites

• The installation position is a solid, right angled wall.
• In the surroundings of at least 5 m of the installation
position there is no fire hazard.
• The power supply cable has been routed.
• The power cabinet has a RCD residual current device and
a MCD circuit breaker to connect the power cable.
• The electrical system has been disconnected from every
power source before performing any installation work.

3.5.1 Data cable options

• Connection to LAN via the RJ-45 connector
• Connection to smart meter via the RJ-11 connector
(Belgium and the Netherlands only)
• Connection to smart meter using the TIC protocol
(France only; provided within RS-485 connector)
• Connection to external energy meter via the RS-485
connector using the Modbus RTU protocol
• Connection to LAN and smart meter
• No connection to LAN or smart meter

3.6 Mechanical installation procedure

• Take the charging station out of the box.
• Use a non-scratching surface to put the charging station
down on to prevent damage.
• Check if all parts listed are provided.
NOTE
In the following text, only the wall-mounting installation
procedure is described. The Eve Single can also be mounted
on a pole. The pole is an accessory and the installation
instruction is provided within its scope of delivery.
