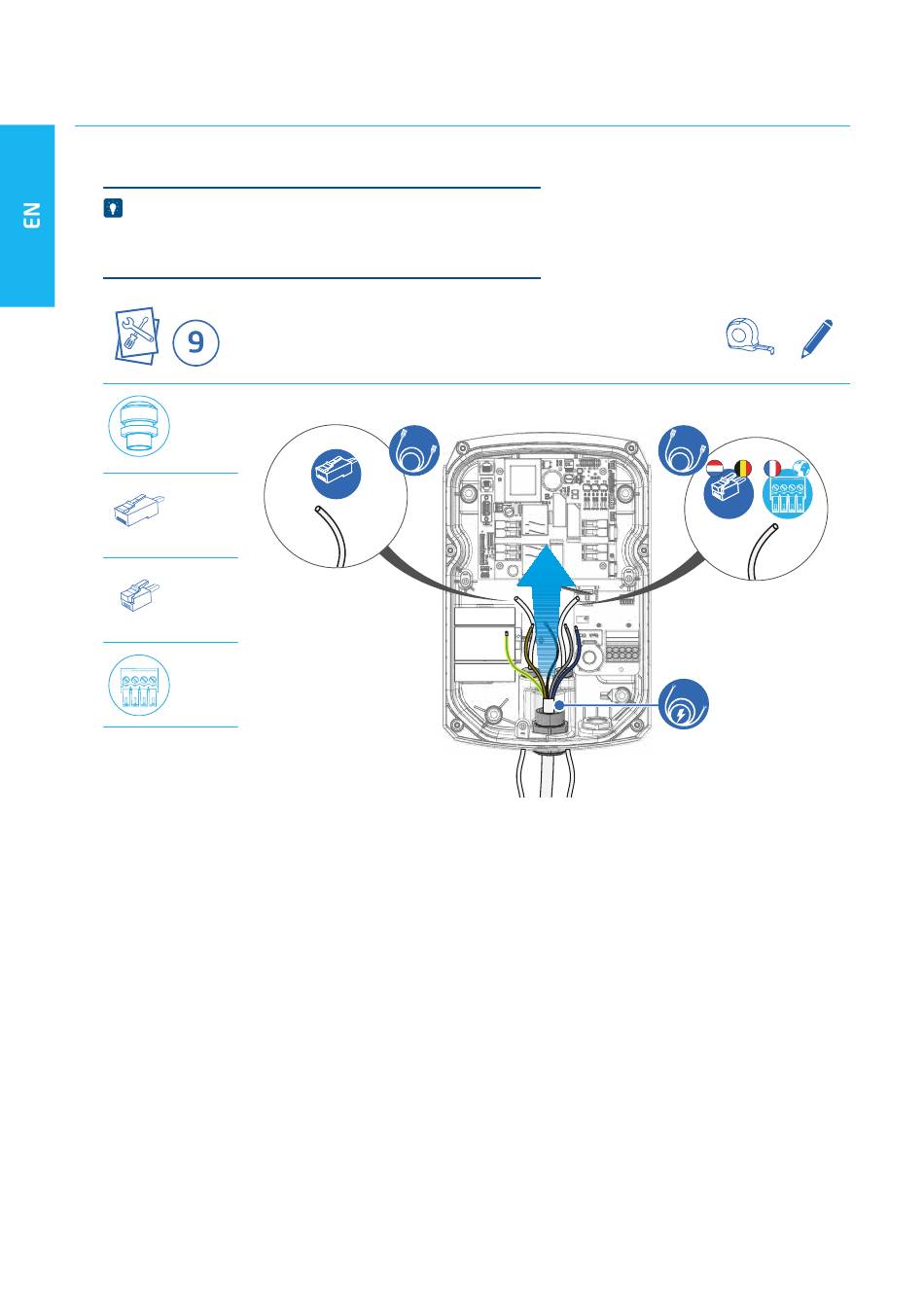

3. INSTALLING AND CONNECTING
9.
Feed the power- and data cable through the cable gland and cable grommet. Pull the power and data cable(s) 300 mm
into the charging station.
NOTE
Make sure to seal the cable entry carefully with the appropriate
grommet. There must be no gaps.
RJ-45
RJ-11
22
1x
RJ-45
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
