2.

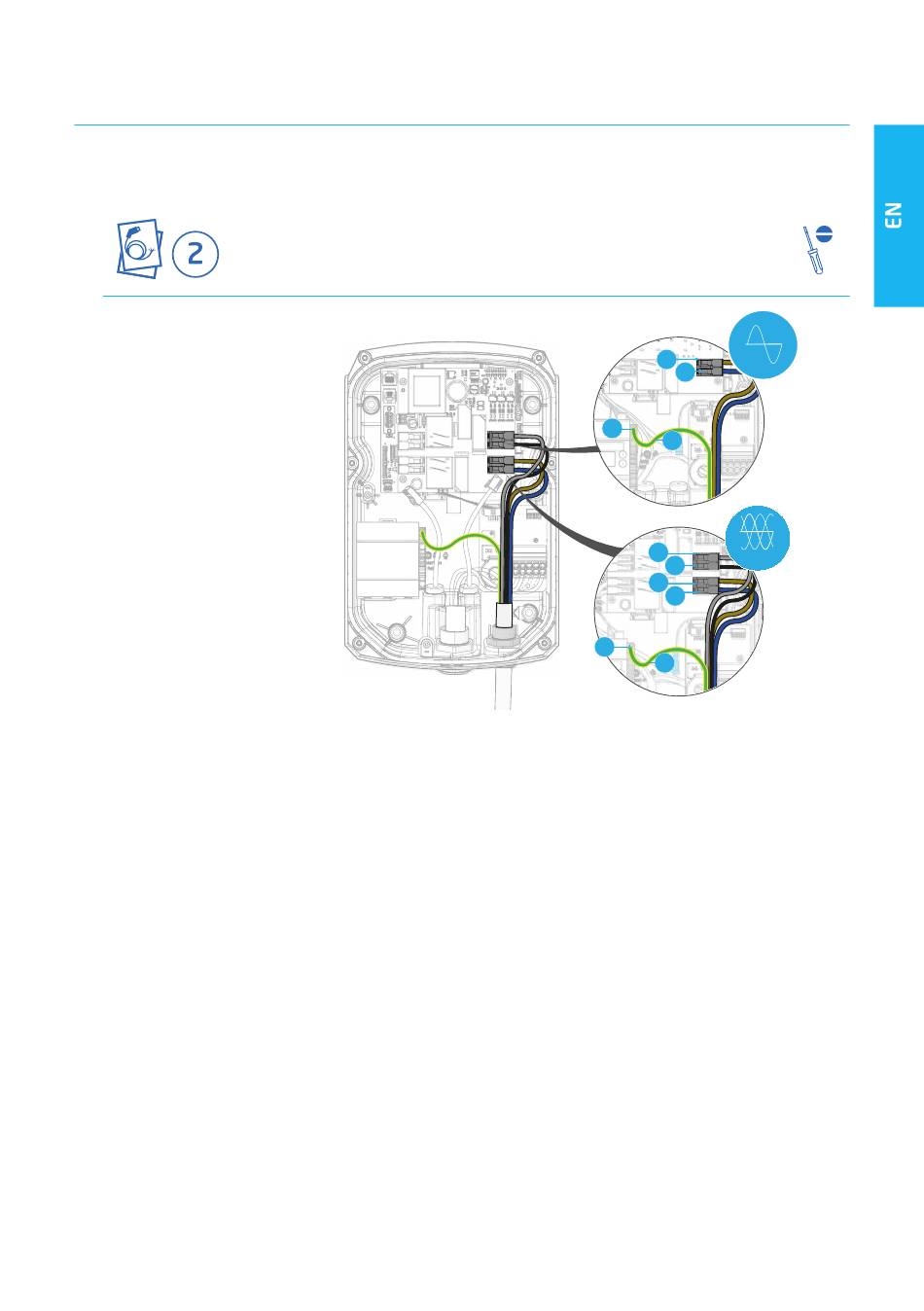

Connect the fixed charging cable wires to the terminal block.
a.
Connect the control power (CP) connector
b.
Connect the Protective Earth cable (PE) to the terminal.
Alfen ICU B.V. | Installation Manual | Eve Single Pro-line & S-line | EV Charging Stations | V2.2 | EN | 04/2023 | 203130236-ICU
3. INSTALLING AND CONNECTING
PE
PE
L1
L1
N
CP
L3
L1 L2 L3
L2
L1
N
CP
