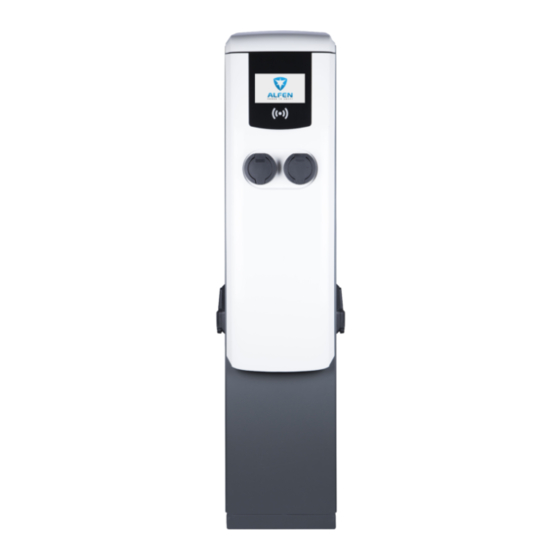

Eve Double PG-line DE
H andbuch | Manual |
Instrukcja użytkownika | Manuale

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eve Double PG-line DE and is the answer not in the manual?

Questions and answers

Related Manuals for alfen Eve Double PG-line DE

Summary of Contents for alfen Eve Double PG-line DE

  • Page 1 – Eve Double PG-line DE H andbuch | Manual | Instrukcja użytkownika | Manuale...
  • Page 2 AUSSENANSICHT | EXTERIOR VIEW | WIDOK ZEWNĘTRZNY | VISTA ESTERNA 335 mm Eve Double PG-line DE | Version 4.1 |...
  • Page 3 INTERIOR VIEW EVE DOUBLE PG DE WITHOUT GRID CONNECT ON BOX UNIT WIDOK WEWNĘTRZNY EVE DOUBLE PG-LINE BEZ MODUŁU SKRZYNKI PRZYŁĄCZENIOWEJ DO SIECI VISTA INTERNA EVE DOUBLE PG-LINE DE SENZA UNITÀ GRID CONNECTION BOX (NO. 904462002) SEITENANSICHT LINKS | SIDE VIEW LEFT |...
  • Page 4 INTERIOR VIEW EVE DOUBLE PG DE WITH GRID CONNECTION BOX UNIT WIDOK WEWNĘTRZNY EVE DOUBLE PG-LINE Z MODUŁEM SKRZYNKI PRZYŁĄCZENIOWEJ DO SIECI VISTA INTERNA EVE DOUBLE PG-LINE DE CON UNITÀ GRID CONNECTION BOX (NO. 904462003 & 904462004) SEITENANSICHT LINKS (HAK-EINHEIT)
  • Page 5 PROJEKT OBWODÓW PRĄDOWYCH MODUŁ SKRZYNKI PRZYŁĄCZENIOWEJ DO SIECI ASPETTO ATTUALEUNITÀ GRID CONNECTION BOX Abbildung zeigt Artikelnr. 904462004 als Beispiel | Figure showing No. 904462004 as example | Rysunek przedstawiający przykładowy nr 904462004 | Immagine esemplificativa del n. 904462004 Eve Double PG-line DE | Version 4.1 |...
  • Page 7 Although these instructions for use has been compiled with the greatest care, future changes and improvements are possible. For the latest version, we therefore refer you to Alfen.com/Downloads Eve Double PG-line DE | Version 3.0 |...

  • Page 8: Table Of Contents

    2.3.2 RFID - Charging station with user authorisation 38 2.4 German Measurement and calibration Law 1) The provisions of the low voltage directive 2014/35/EU 2.5 Technical specification Eve Double PG-line DE 40 2) The provisions of the EMC guideline 2014/30/EU 2.5.1 Input / power supply 3) The following harmonised standards: IEC 61851-1 2.5.2 Charging and access...

  • Page 9: Safety And Usage Instructions

    Copyright © Alfen ICU B.V.. 2023. All rights reserved. The disclosure, duplication, distribution and editing of this Alfen ICU B.V. (“Alfen”) shall not be liable in any way, for any document, as well as the utilisation and communication kind of damage, and all warranties on both the product and...

  • Page 10: Product

    Model, production date and serial number • Technical specification number • Item number and maximum charging current When contacting Alfen, always have your serial number available so we can assist you as quickly as possible. Eve Double PG-line DE | Version 4.1 |...

  • Page 11: User Interface

    Service Installer application. If the product does not have information about the current time, this field is not visible. Figure 1a: Eve Double PG-line DE display during charging process Status and information screen: using an electrical outlet...

  • Page 12: Operation

    Upon detecting a charging cable or holding up a charge card, the status of all Eve Double PG-line DE products will be displayed in “green”. The light blue (cyan) status will only be displayed if and when a connection is established between the vehicle and charging station and the user is authorised.

  • Page 13: German Measurement And Calibration Law

    Figure 3. The Eve Double PG-line DE with the ammeter conforming to Measurement and calibration law on the side During a charging session the public key and the kWh value are shown as the unit of measure. The measurement unit is illuminated making it readable at all time.

  • Page 14: Technical Specification Eve Double Pg-Line De

    TN system: (PE cable) TT-System (self-applied ground electrode) Mains switch 904462002 4-pole, 80 A, 400 VAC 904462003 8-pole, 40 A, 400 VAC 904462004 8-pole, 40 A, 400 VAC Connection method Permanently connected Eve Double PG-line DE | Version 4.1 |...

  • Page 15: Charging And Access

    Integrated in firmware; Throttling to: 105% after 1000 seconds; 110% after 100 seconds; 120 % after 10 seconds; 150% after 2 seconds. Overvoltage Type 1 and Type 2 (only in variant 904462003 and 904462004) protection Eve Double PG-line DE | Version 4.1...

  • Page 16: Housing

    3P 255 FM). Dimensions: approx. 250 x 150 mm devices Grid connection box Holder for NH00 fuses Input connection terminal: steal frame clamp in input and output 10-95mm². Dimensions: approx. 412 x 238 x 132 mm Eve Double PG-line DE | Version 4.1 |...

  • Page 17: Operating Conditions

    If temperatures exceed the maximum values, the charging station will automatically decrease the charging current to decrease the internal temperature. This stabilises the Eve Double PG-line DE | Version 4.1...

  • Page 18: Optional Factory Settings

    Dimensions (H x W x D) 570 x 350 x 220 mm Weight Approx. 42 kg Package contents The package contents of the charging station consists of: Alfen Eve Double PG-line DE installation manuals, assembly accessories and lifting eyes lifting eyes gland union nut...

  • Page 19: Assembly And Connecting

    Carefully read these instructions prior to installing the The charging station contains electric components that charging station. Alfen shall not be liable for consequential may still contain electrical charge after being disconnec- damage caused by the use of this manual.

  • Page 20: Assembly And Connecting Prerequisites

    • The cable routing from the main distribution board to • Wire stripper the Alfen Eve Double PG-line DE must be protected • Carpet knife against short circuits and overcurrent. - A circuit breaker characteristic B or C (or according to For installation on an optional concrete base: local standards and laws).
  • Page 21 The electric system must be completely disconnected from WARNING every power source prior to carrying our installation and Always attach the earth conductor first! maintenance work. Always wait 10 seconds after discon- necting from an energy source before proceeding. Eve Double PG-line DE | Version 4.1...

  • Page 22: Electrical Installation

    Both doorlocks of the charging station can hold two cylinders. For example, place a cylinder of the grid operator and a customer cylinder on both sides (Alfen and energy provider side). See illustration. 10.Close the door and the lock and make sure that it is properly locked.

  • Page 23: Commissioning The Charging Station

    The screen shows the start screen, recognisable by the logo on the screen. The Alfen Eve Double PG-line DE is now ready for opera- tion. When the charging station is set to charge a connection with an operating system, this is done automatically and immediately.

  • Page 24: Connectivity

    SIM card. Immediately after being switched on, the Eve Double PG-line DE, it establishes a connection with ICU Connect. If you specified a different operating system when ordering, you may have to install the SIM card yourself.

  • Page 25: Registering Your Icu Connect Account

    Alfen. NOTE Please ensure your network settings permit the establis- hing of a connection to the Alfen servers through a secured FTP connection. This is used for software updates and to exchange diagnostics. 5.4 Signing up for your ICU Connect account...

  • Page 26: Error Codes And Problem Solving

    APPENDIX A: ERROR CODES AND PROBLEM SOLVING This attachment provides a description of the error codes that can be generated by the Eve Double PG-line DE charging station, and information on these. If you cannot find a working solution, contact the charging station vendor or Alfen support.
  • Page 27 • Ambient tempe- Charging will resume supplier’s service rature. shortly. department • No EV charging. Expected: Contact your installation • Ambient tempe- engineer. rature. • Installed in direct sunlight. • EV charging. Eve Double PG-line DE | Version 4.1...
  • Page 28 • Problems with Check the charging cable. according to the IEC other charging 61851 norm. stations. All cables: Contact your charging station provider’s • No problems service department with other charging stations. Eve Double PG-line DE | Version 4.1 |...

  • Page 29: Waste Electrical And Electronic Equipment (Weee)

    Eve Double PG-line DE | Version 4.1...

  • Page 31: Alfen Icu B.v
